Exterior Lights: Lighting: Components

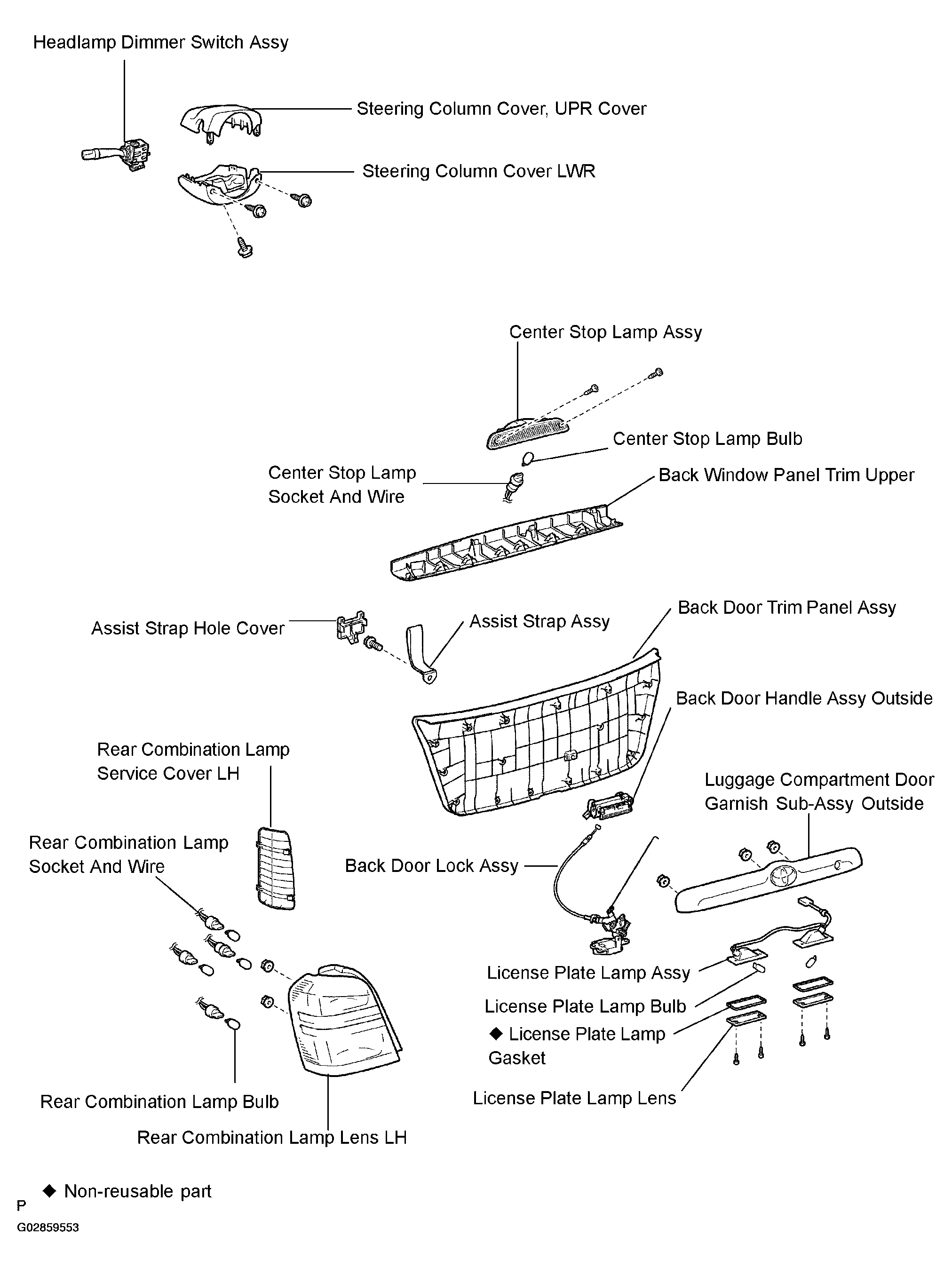

Fig 1: Identifying Lighting Components Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

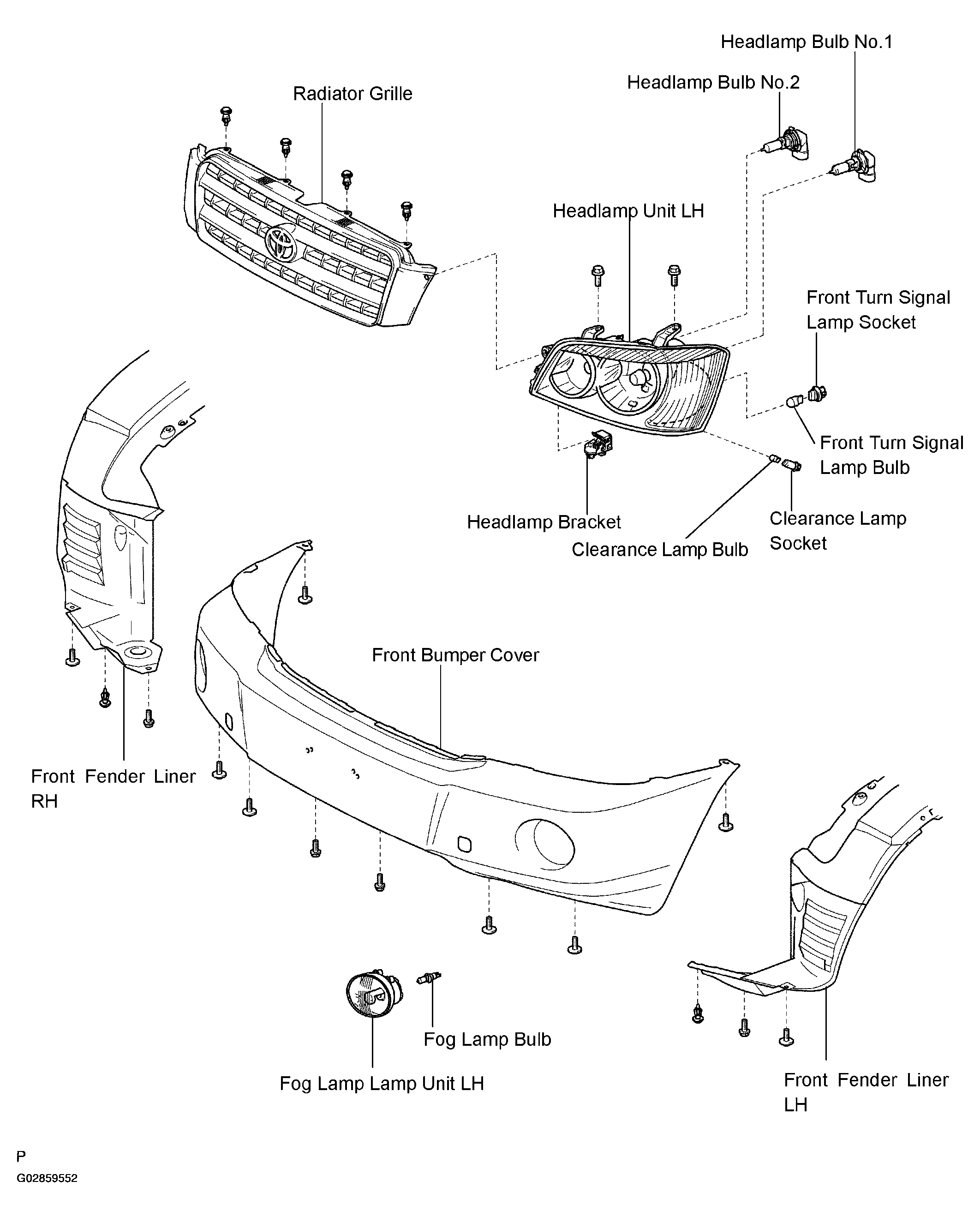

Fig 2: Identifying Lighting Components Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
