Problem Symptoms Table

  1. TROUBLESHOOTING FOR EACH PROBLEM SYMPTOM
    NOTE: Confirm the problem symptom and make an inspection depending on the applicable flow chart.

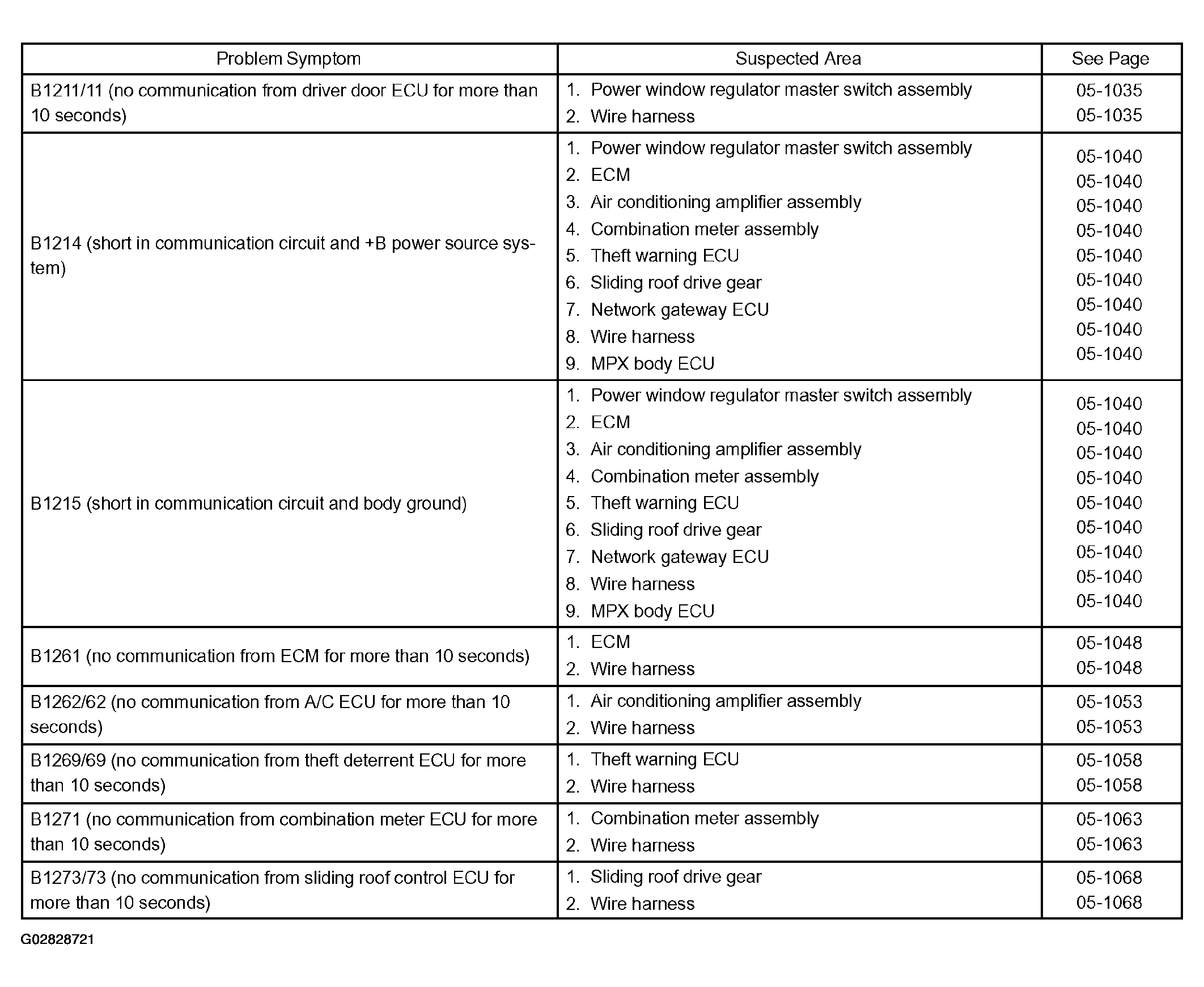

    Fig 1: Multiplex Communication System - Problem Symptom Chart
    G02828721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
