Corolla S, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Combination Meter - Diagnostics
>>
Warning Buzzer Does Not Sound (Key Reminder Warning Light Reminder Warning)
>>
Wiring Diagram
Warning Buzzer Does Not Sound (Key Reminder Warning Light Reminder Warning): Wiring Diagram

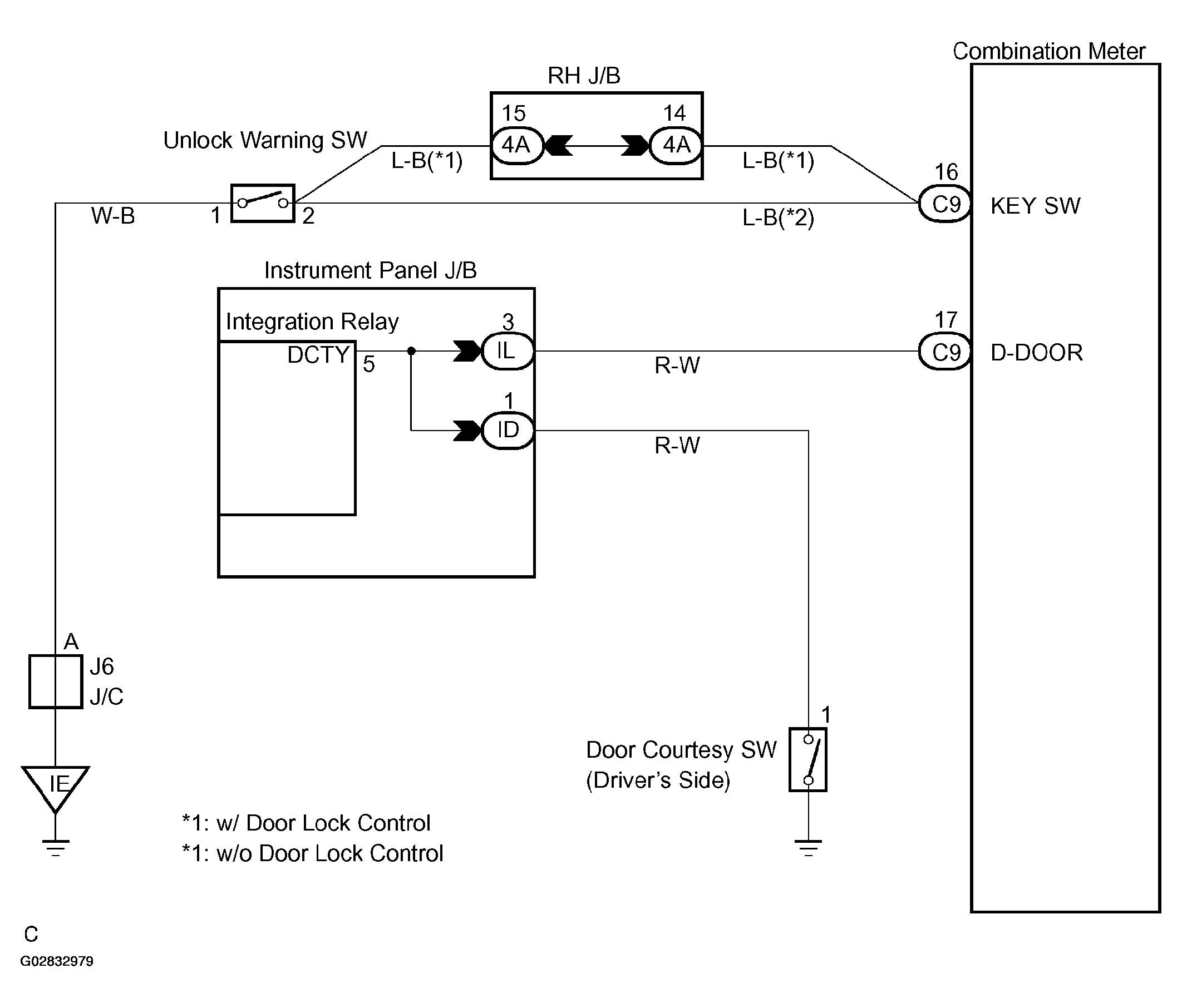

Fig 1: Key Reminder/Light Reminder Warning Wiring Diagram
