The Ambient Temperature Does Not Display: Wiring Diagram

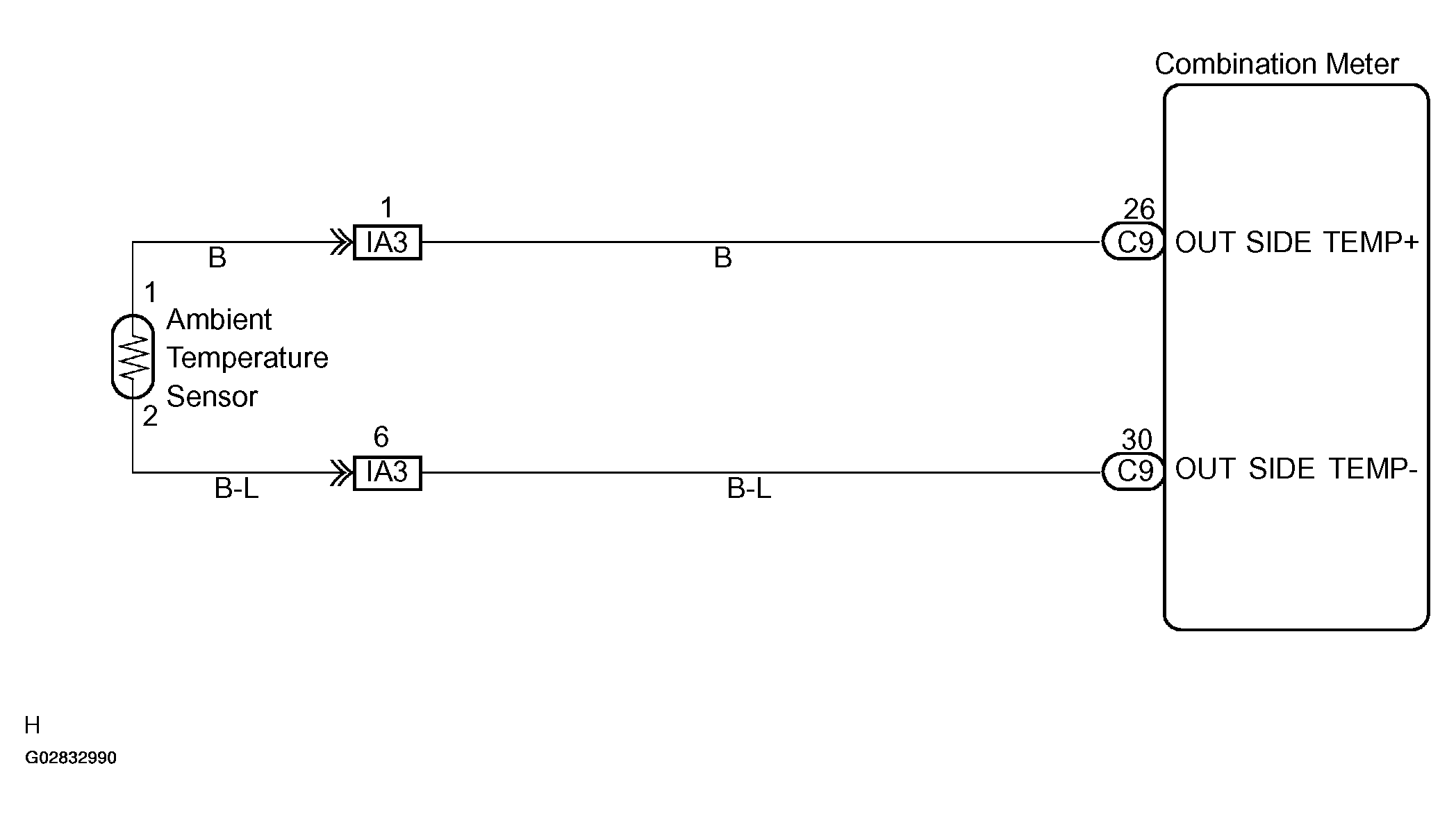

Fig 1: Ambient Temperature Does Not Display Connection Diagram

G02832990

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
