Seat Belt Warning Lamp For Front Passenger's Seat Does Not Flash: Wiring Diagram

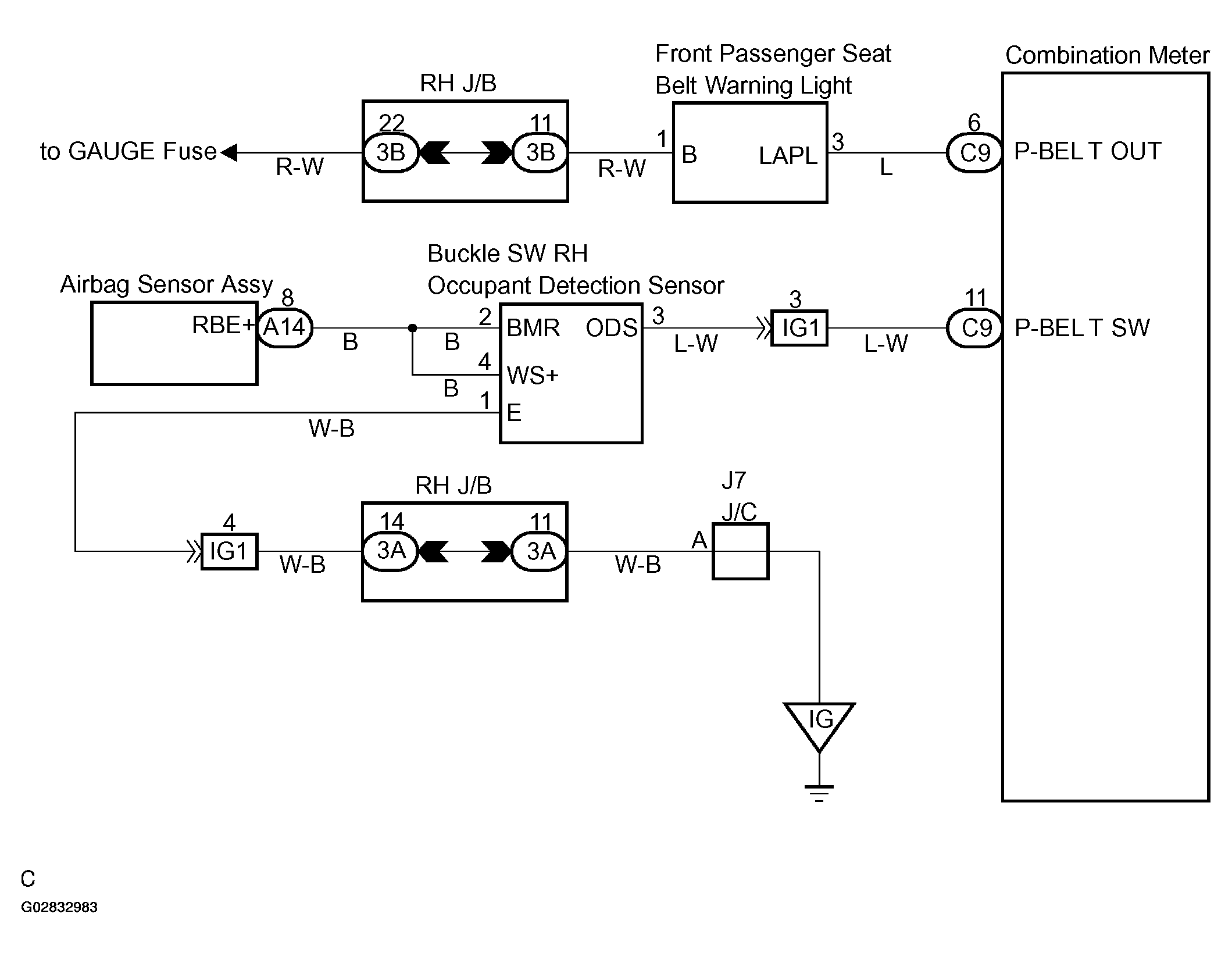

Fig 1: Seat Belt Warning Lamp Wiring Diagram

G02832983

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
