Malfunction In Speedometer: Wiring Diagram

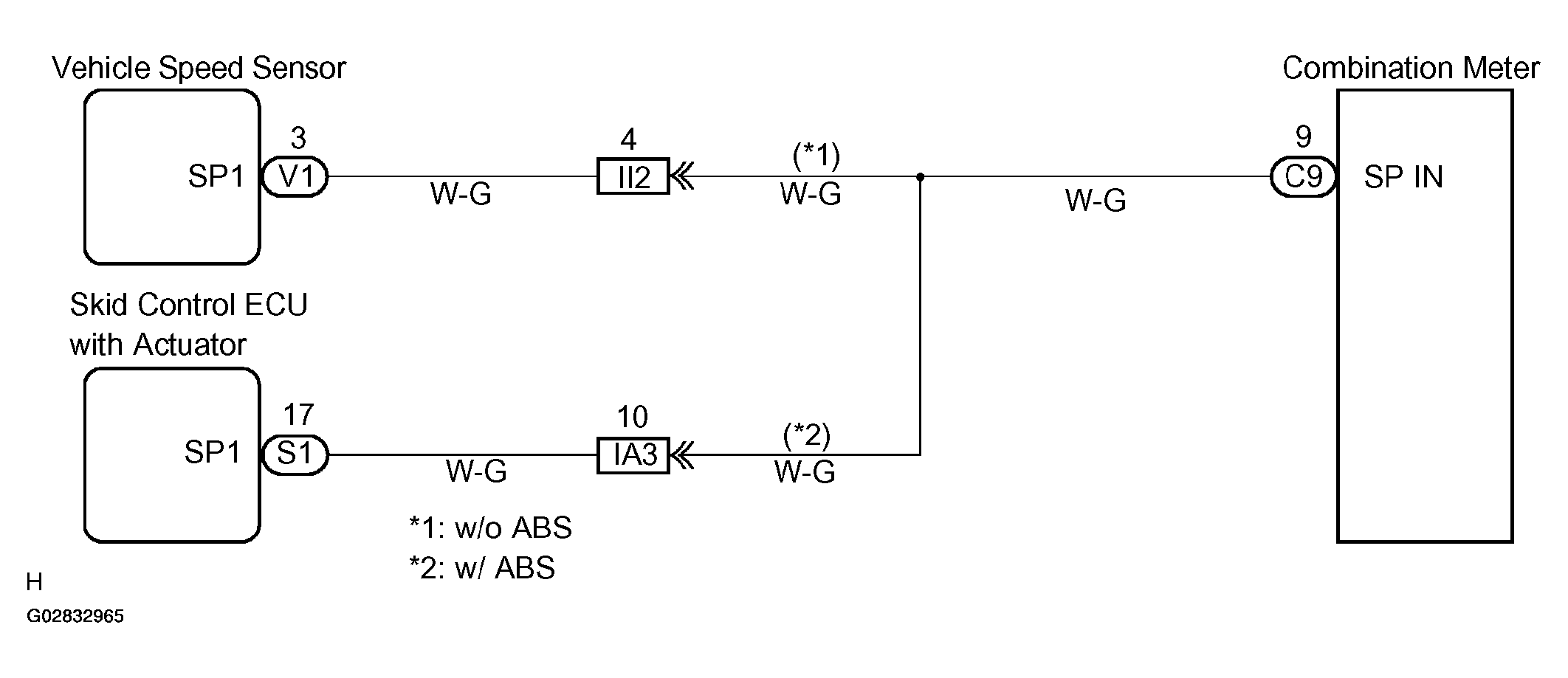

Fig 1: Speedometer Wiring Diagram

G02832965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
