Malfunction In Fuel Receiver Gauge: Wiring Diagram

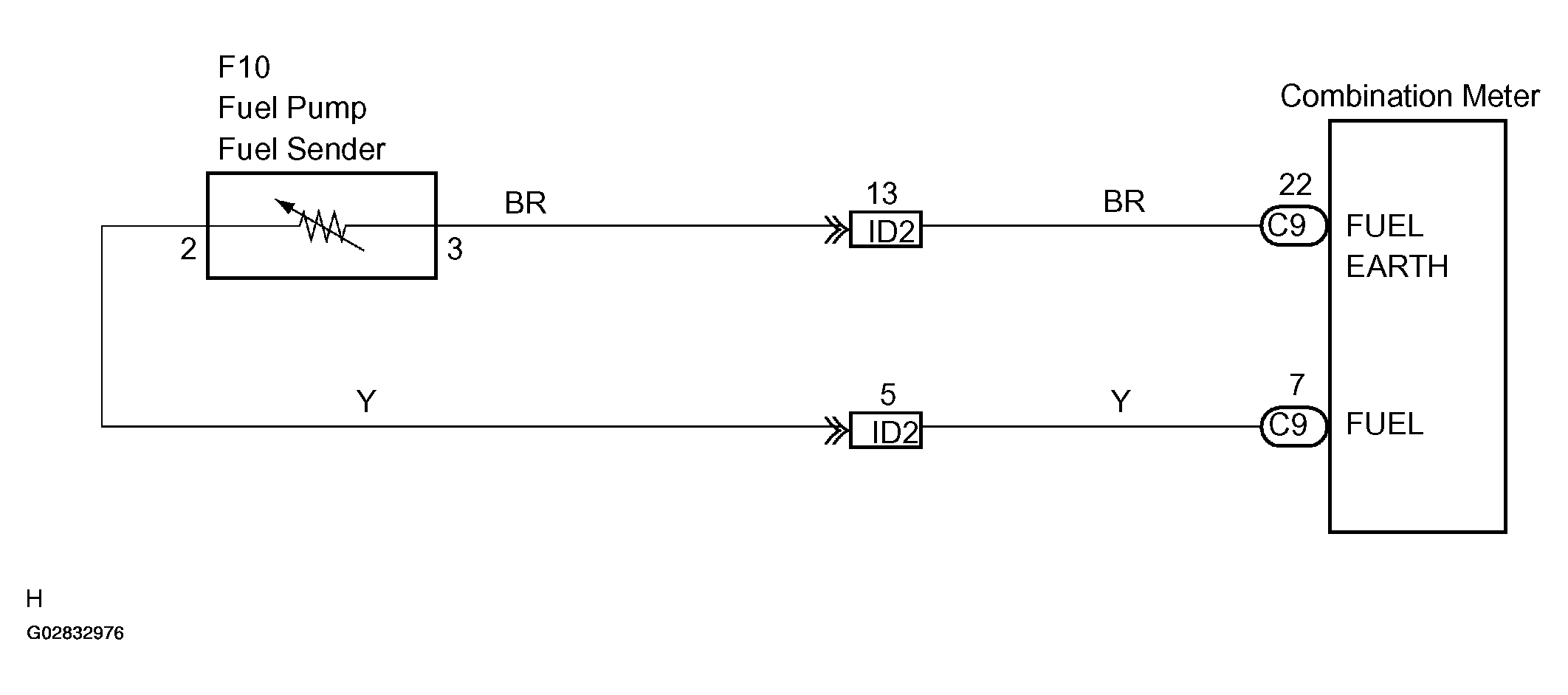

Fig 1: Fuel Receiver Gauge Wiring Diagram

G02832976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
