Malfunction In Clock: Wiring Diagram

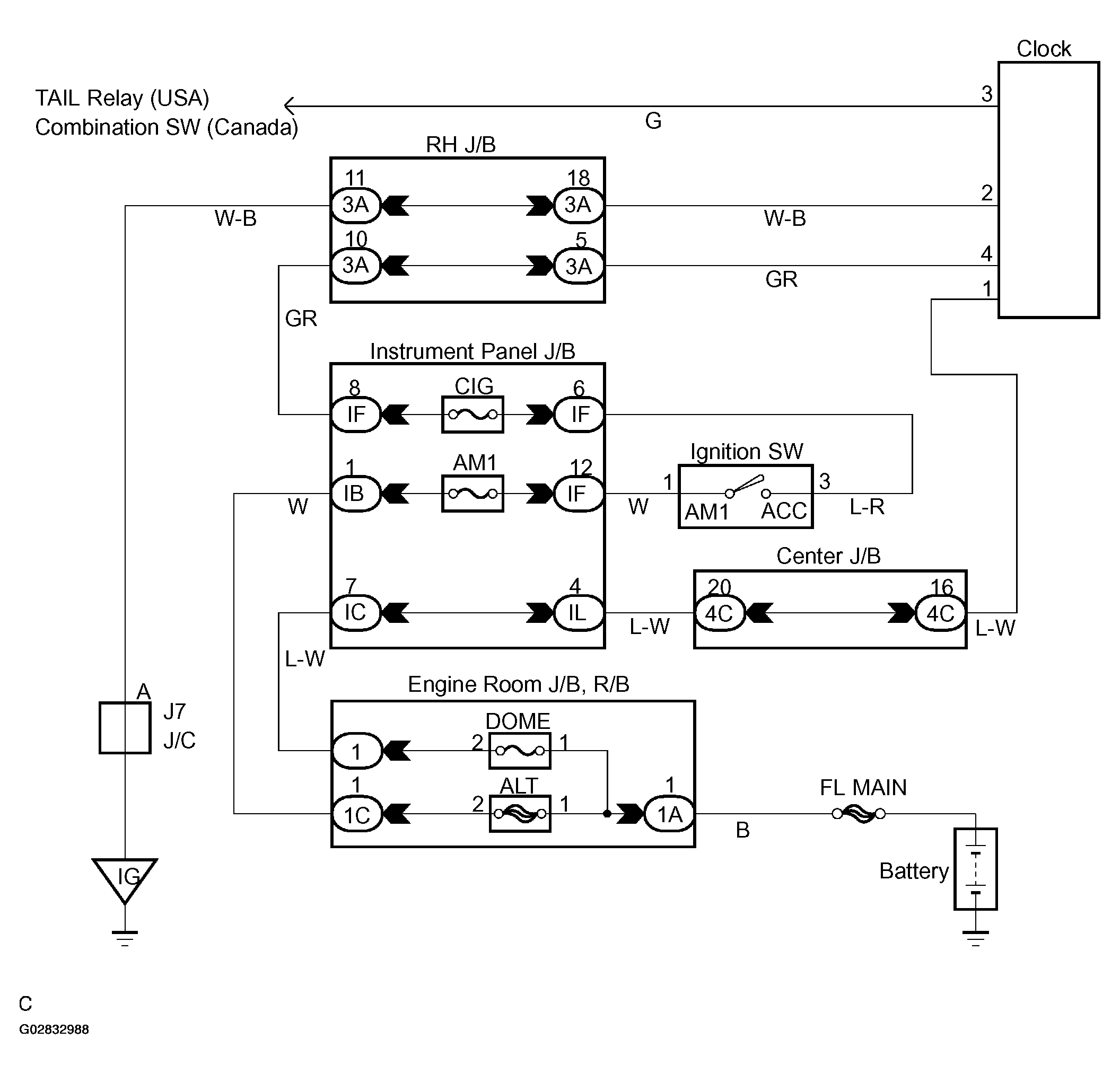

Fig 1: Clock Wiring Diagram

G02832988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
