Parking Brake Pedal

  1. Remove lower No. 1 instrument panel, lower left side instrument panel insert and No. 2 heater-to-register duct. See Fig 1.
  2. Release parking brake pedal.
  3. Remove parking brake pedal assembly. See Fig 1:
    1. Disconnect the parking brake switch connector.
    2. Remove the clip, and disconnect the parking brake cable.
    3. Remove the 3 parking brake mounting nuts and parking brake pedal assembly.
    4. Remove the parking brake switch and cushion from the parking brake pedal assembly.

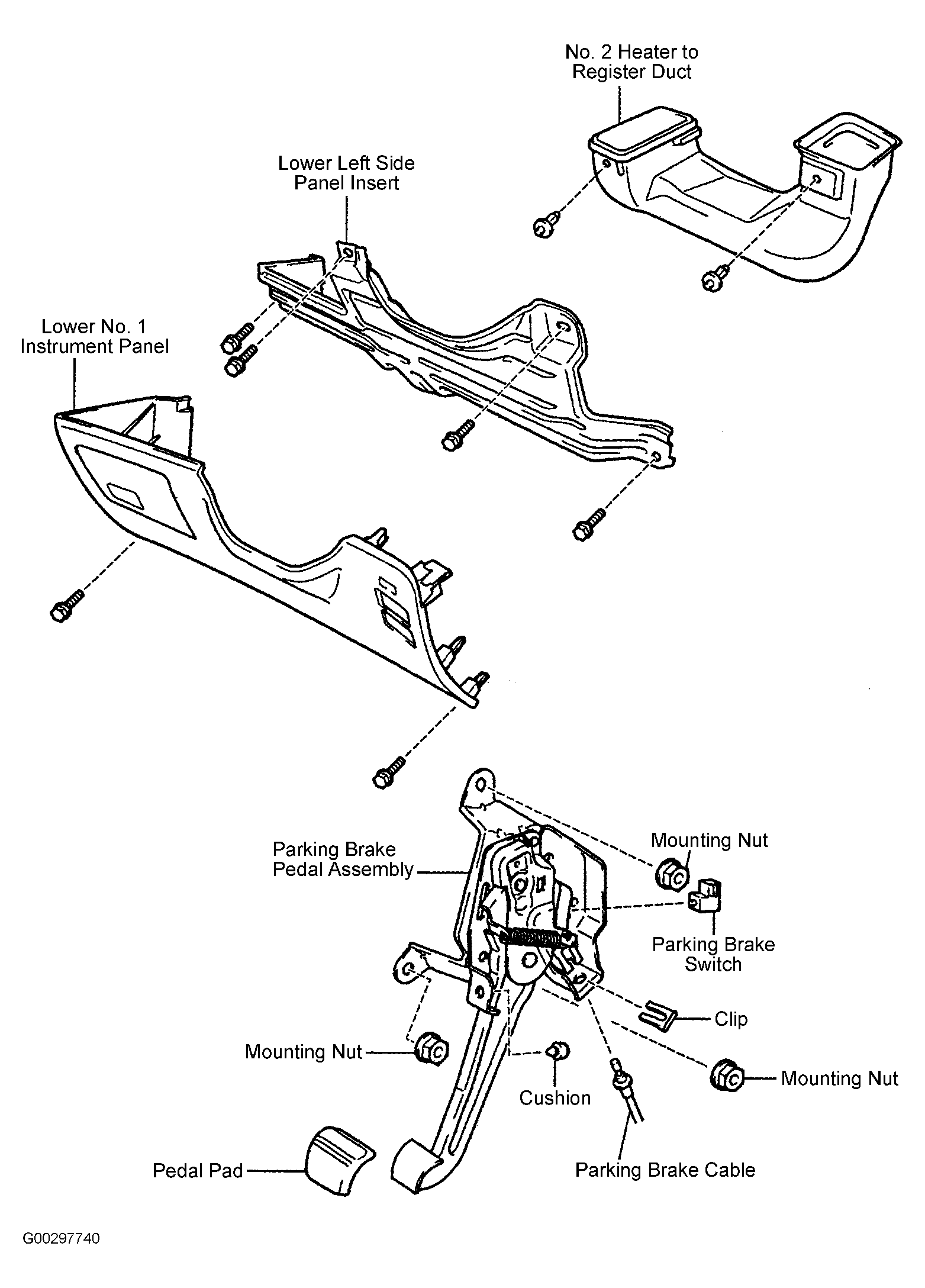

Fig 1: Identifying Parking Brake Components
G00297740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
