Instrument Panel: Components

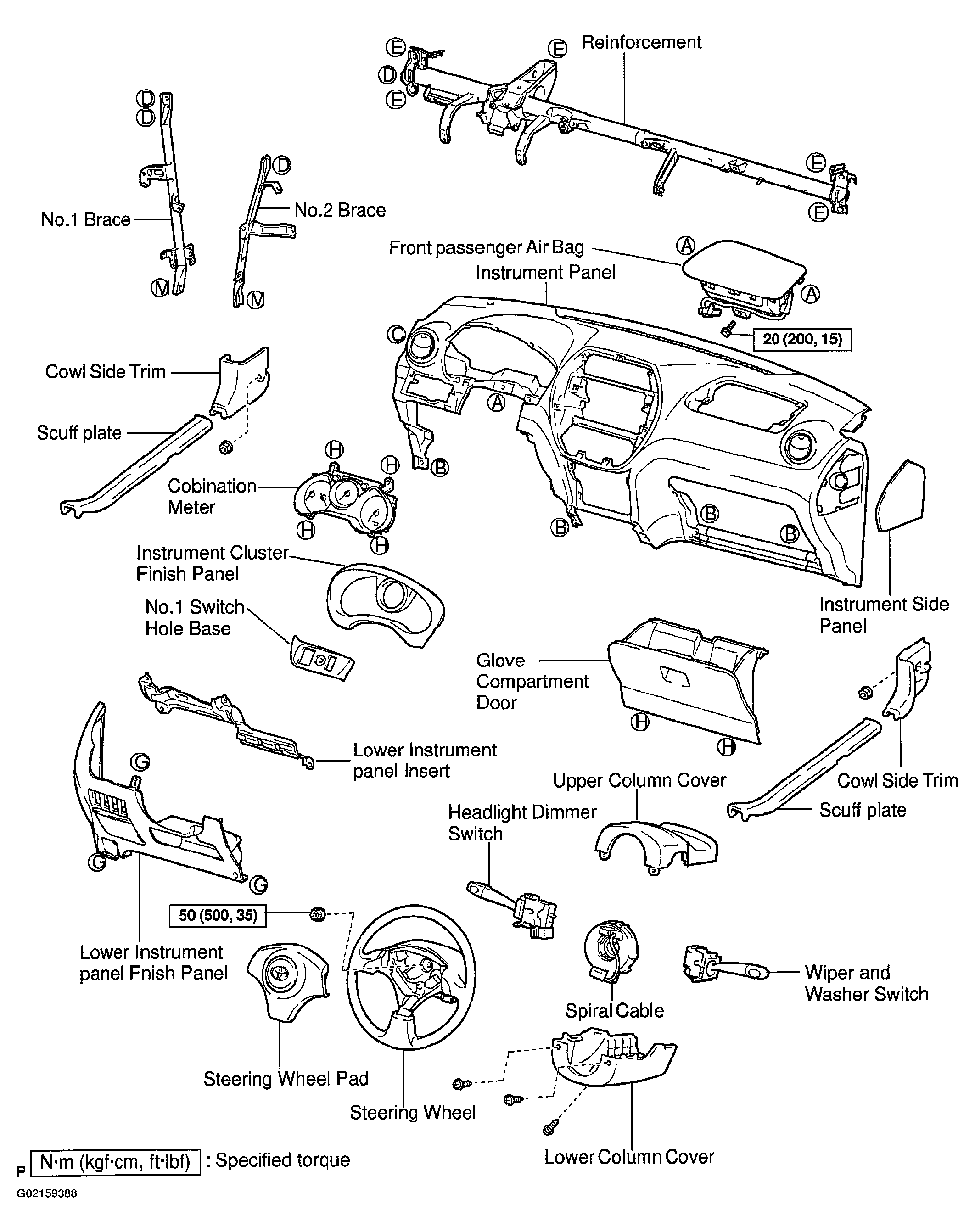

Fig 1: Identifying Instrument Panel Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

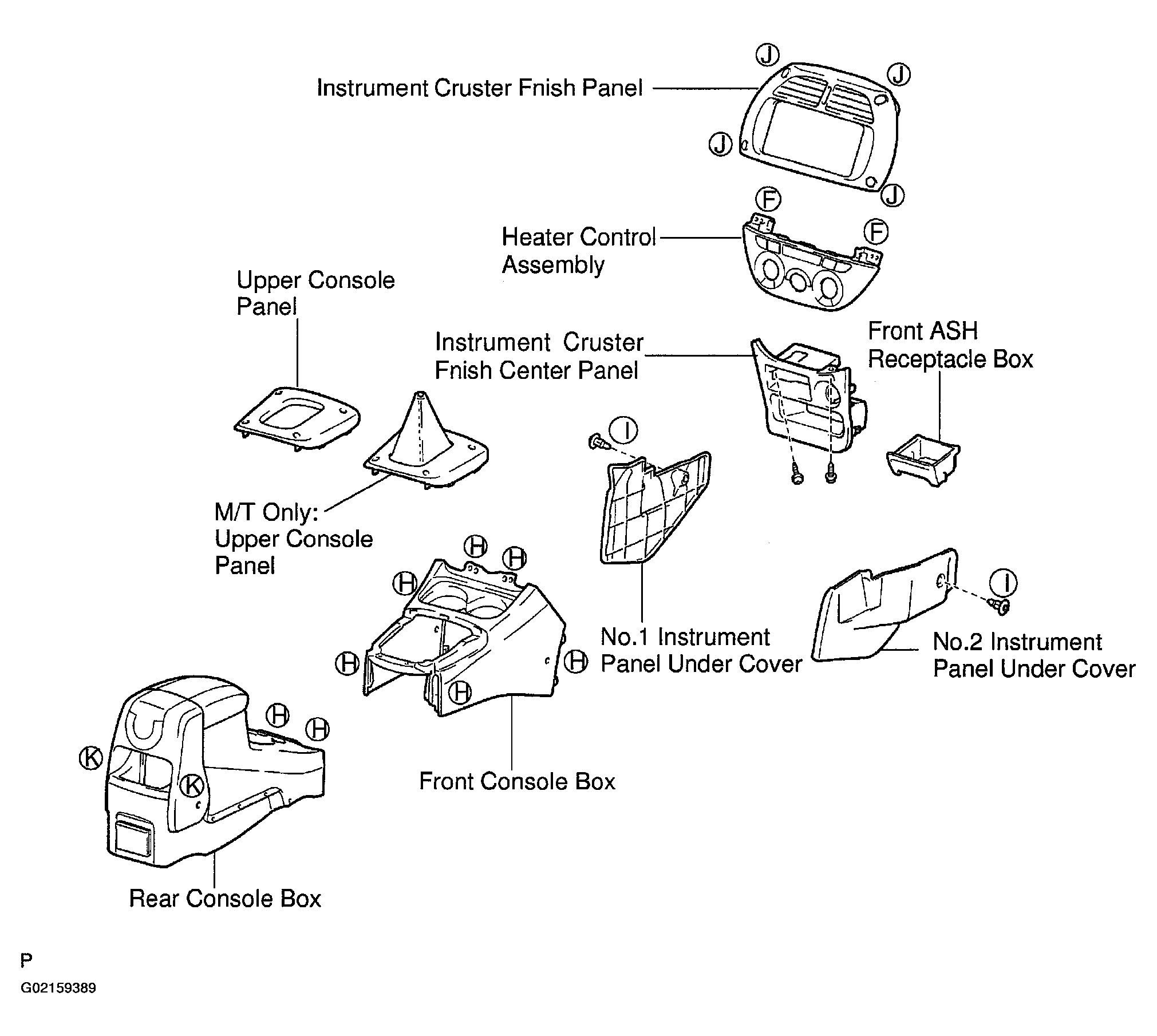

Fig 2: Identifying Center Console Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

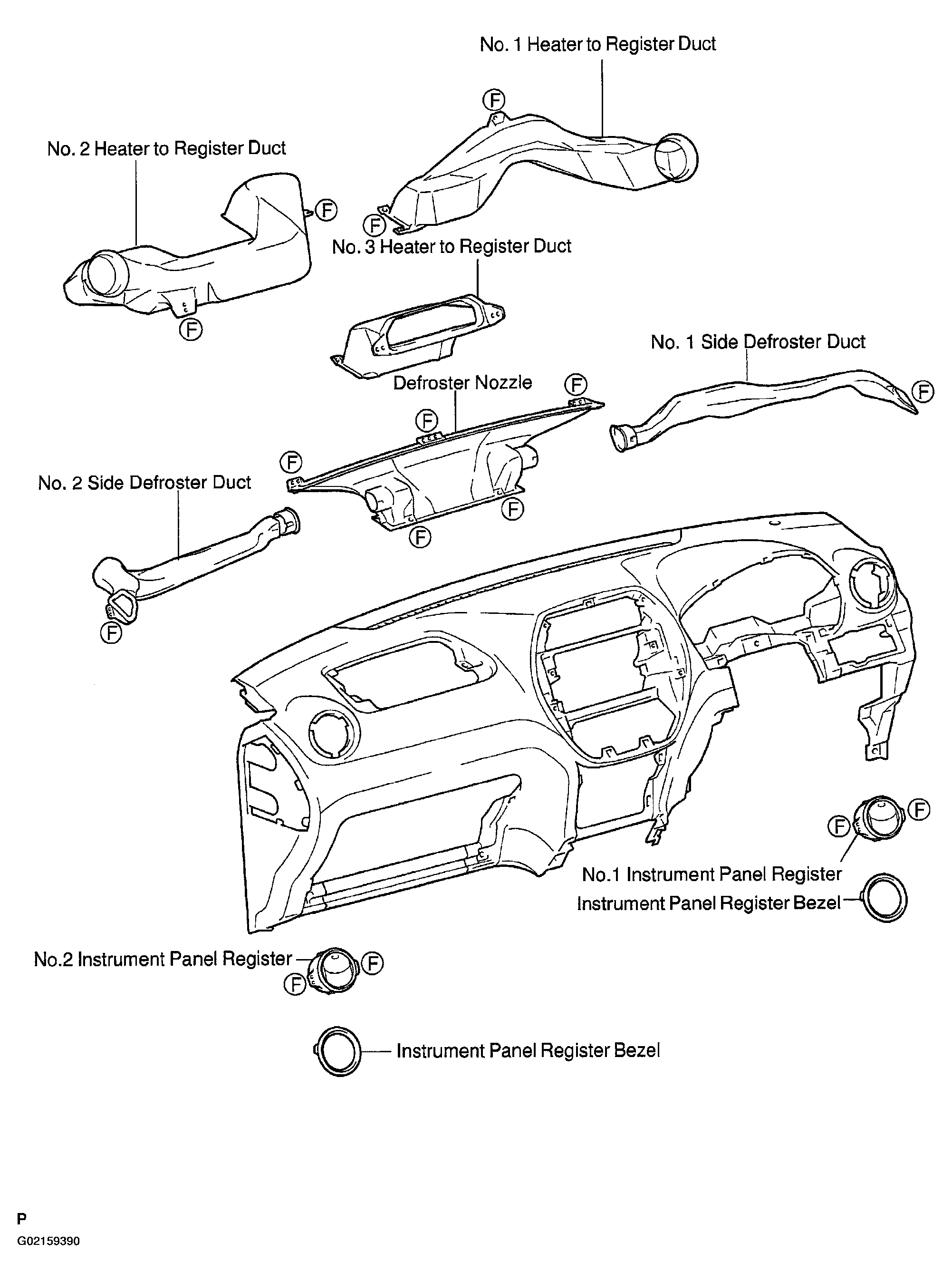

Fig 3: Identifying Air Ducts Behind Instrument Panel

NOTE: Screw shapes and sizes are indicated in the table below. The codes ("A"-"M") correspond to those indicated on the previous pages.

Fig 4: Identifying Screw Shapes & Sizes
