Combination Meter: Location

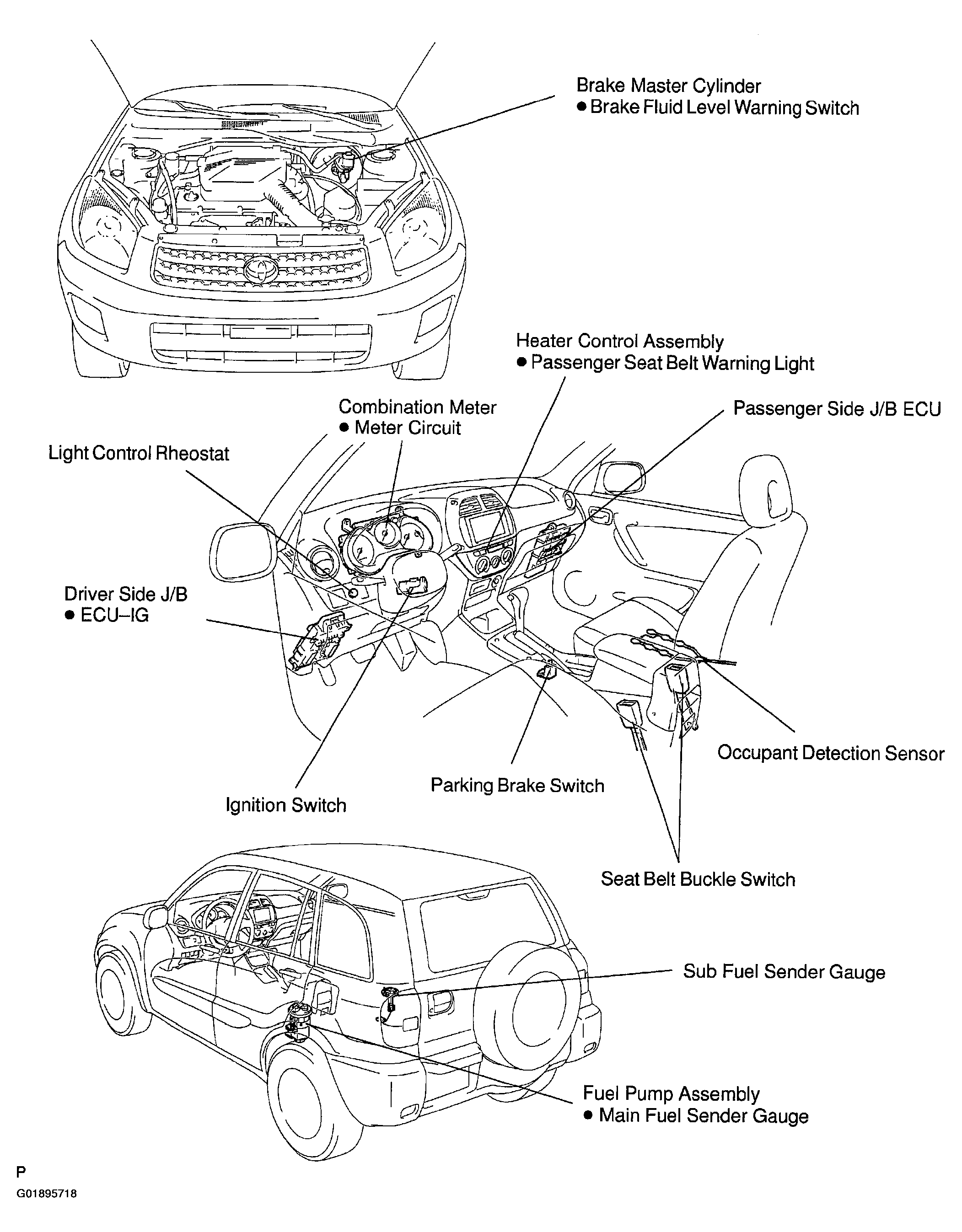

Fig 1: Locating Combination Meter-Related Components (1 Of 2)
G01895718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

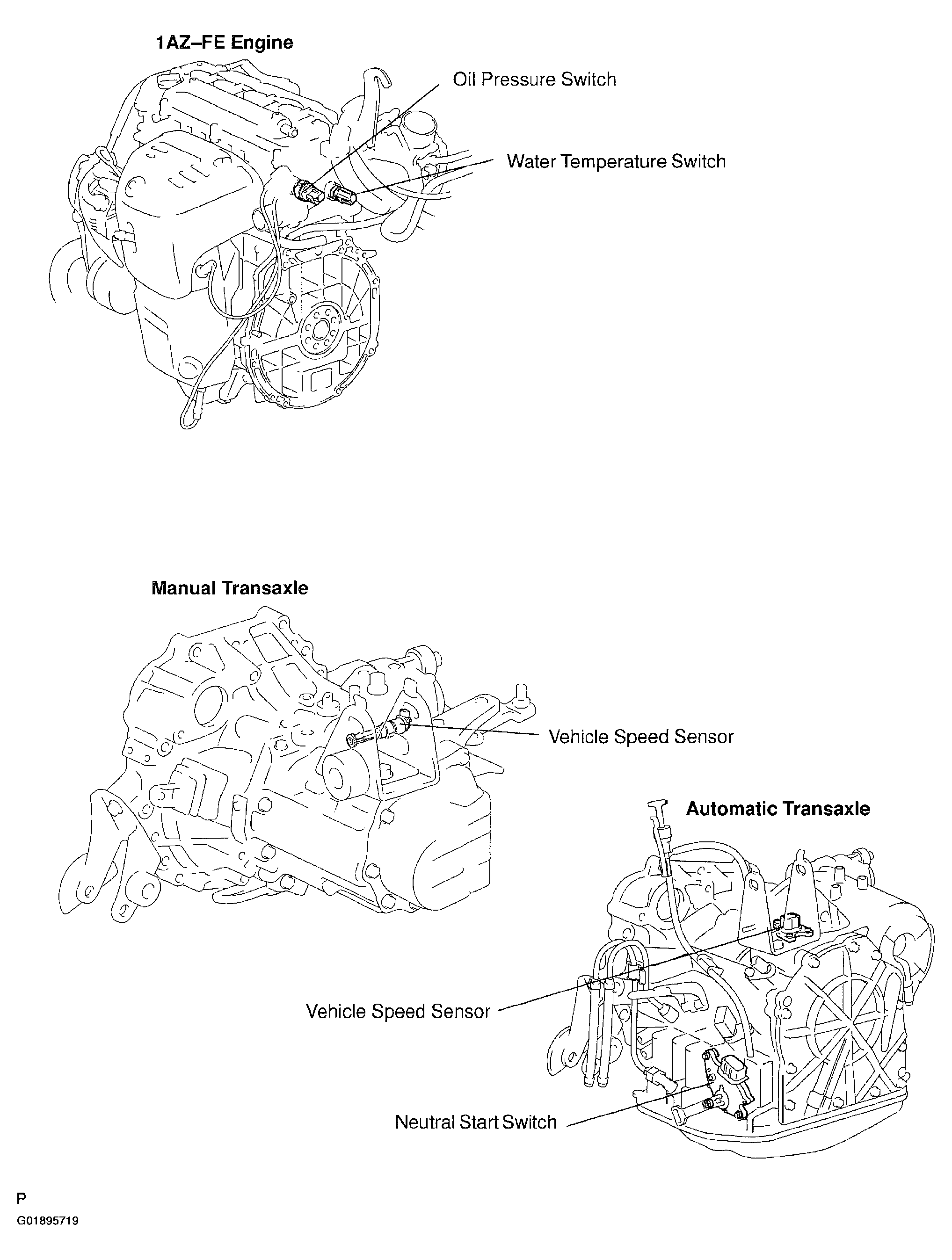

Fig 2: Locating Combination Meter-Related Components (1 Of 2)
G01895719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

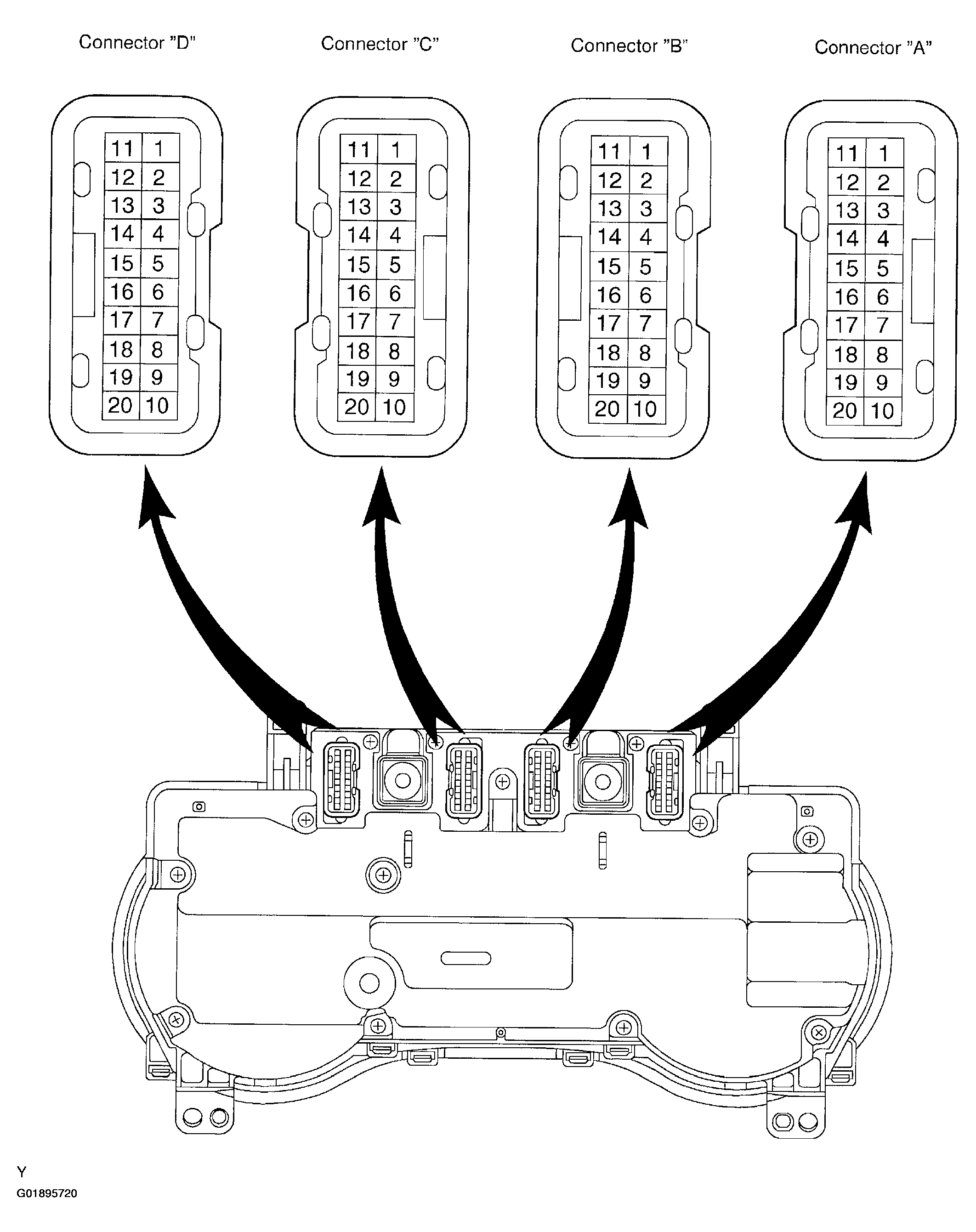

Fig 3: Identifying Combination Meter Connectors & Terminals
G01895720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
