Fog Light System: Inspection

Inspect fog light switch continuity .

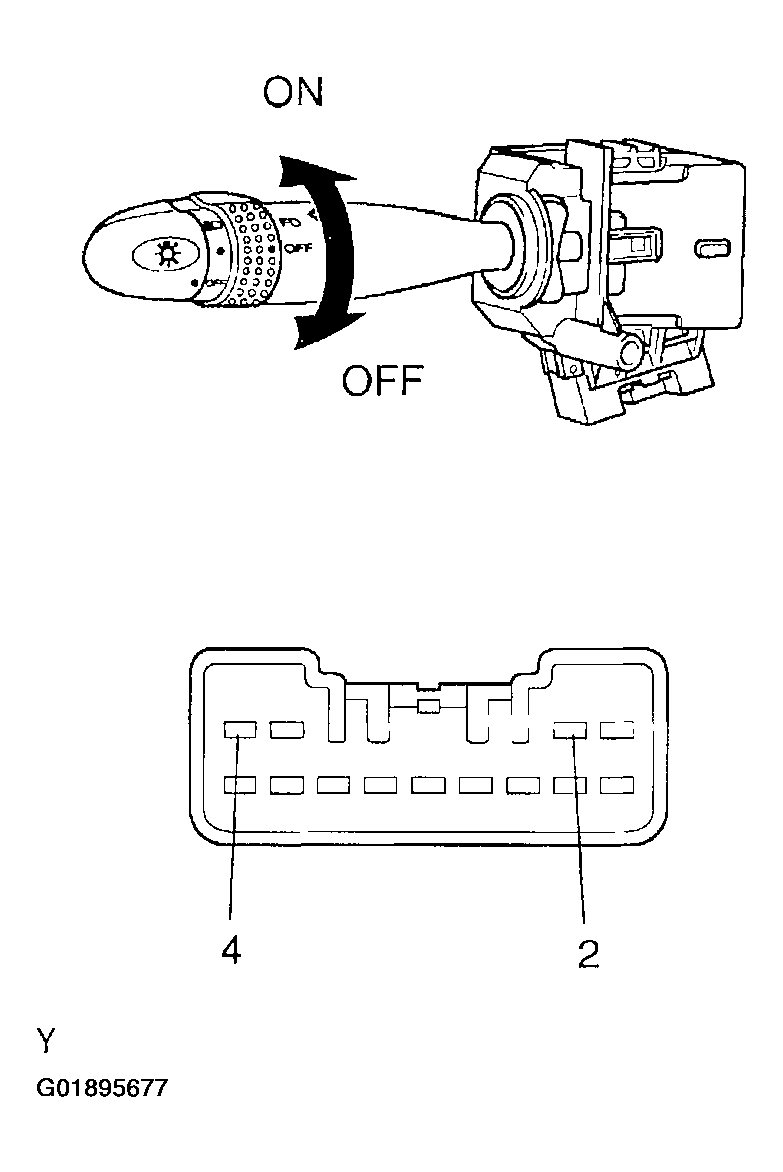

Fig 1: Displaying Fog Light Switch & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Displaying Fog Light Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect front fog light relay continuity .

Fig 3: Identifying Fog Light Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Displaying Fog Light Relay Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the relay.
