Power Steering Vane Pump: Inspection

Fig 1: Measuring Pump Rotor Vane Plates

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a micrometer, measure the height, thickness and length of the 10 vane plates.
   1. Minimum height: 5.4 mm (0.213 in.)
   2. Minimum thickness: 0.882 mm (0.0347 in.)
   3. Minimum length: 4.596 mm (0.1809 in.)
2. Using a feeler gauge, measure the clearance between the vane pump rotor groove and vane plate.
   Fig 2: Measuring Clearance Between Vane Pump Rotor Groove & Vane Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Maximum clearance: 0.023 mm (0.0009 in.)

   If it is more than the maximum, replace the vane plate and/or vane pump rotor with the one having the same mark stamped on the cam ring.

   Inscribed mark: 0, 1, 2, 3, or 4

   Fig 3: Locating Inscribed Marks On Vane Pump Rotor & Cam Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: There are 5 vane plate heights corresponding to the following vane pump rotor and cam ring marks:

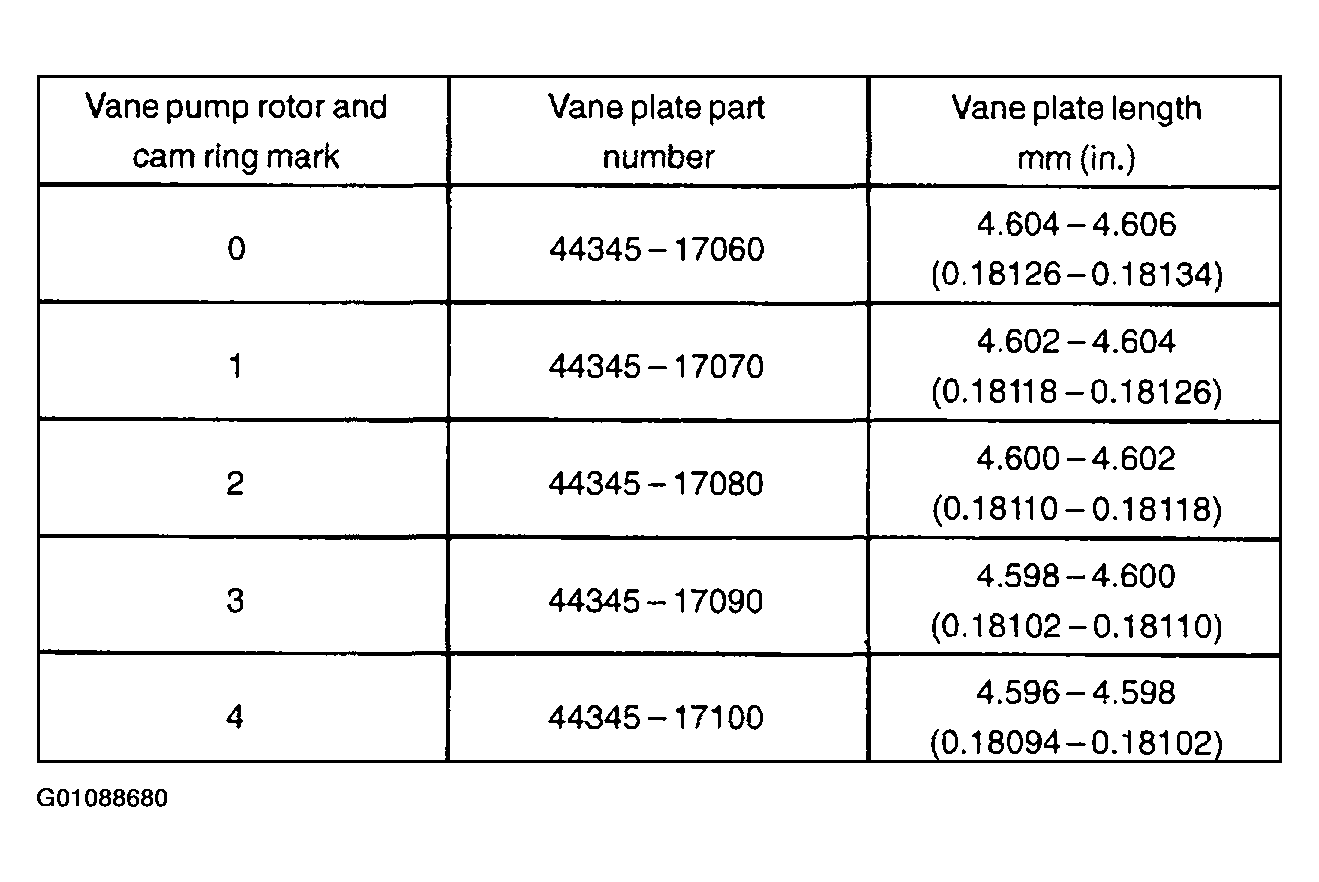

   Fig 4: Determining Vane Plate Part No. & Length Based On Inscribed Mark

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the flow control valve with power steering fluid and check that it falls smoothly into the valve hole of the rear housing by its own weight.
   Fig 5: Inspecting Flow Control Valve

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the flow control valve for leakage. Close one of the holes and apply compressed air of 392 - 490 kPa (4 - 5 kgf/cm² , 57 - 71 psi) into the opposite side hole, and confirm that air does not come out from the end hole.
   Fig 6: Using Compressed Air To Check Flow Control Valve

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If necessary, replace the flow control valve with the one having the same letter as inscribed on the rear housing.

   Fig 7: Locating Inscribed Mark On Flow Control Valve & Housing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Inscribed mark: A, B, C, D, E or F

Using vernier calipers, measure the free length of the spring.

Fig 8: Measuring Free Length Of Spring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Minimum free length: 28.7 mm (1.130 in.)

If it is not within the specification, replace the spring.
