Removal & Installation
WARNING: This page is about a different car, the 2003 Toyota Tundra and 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

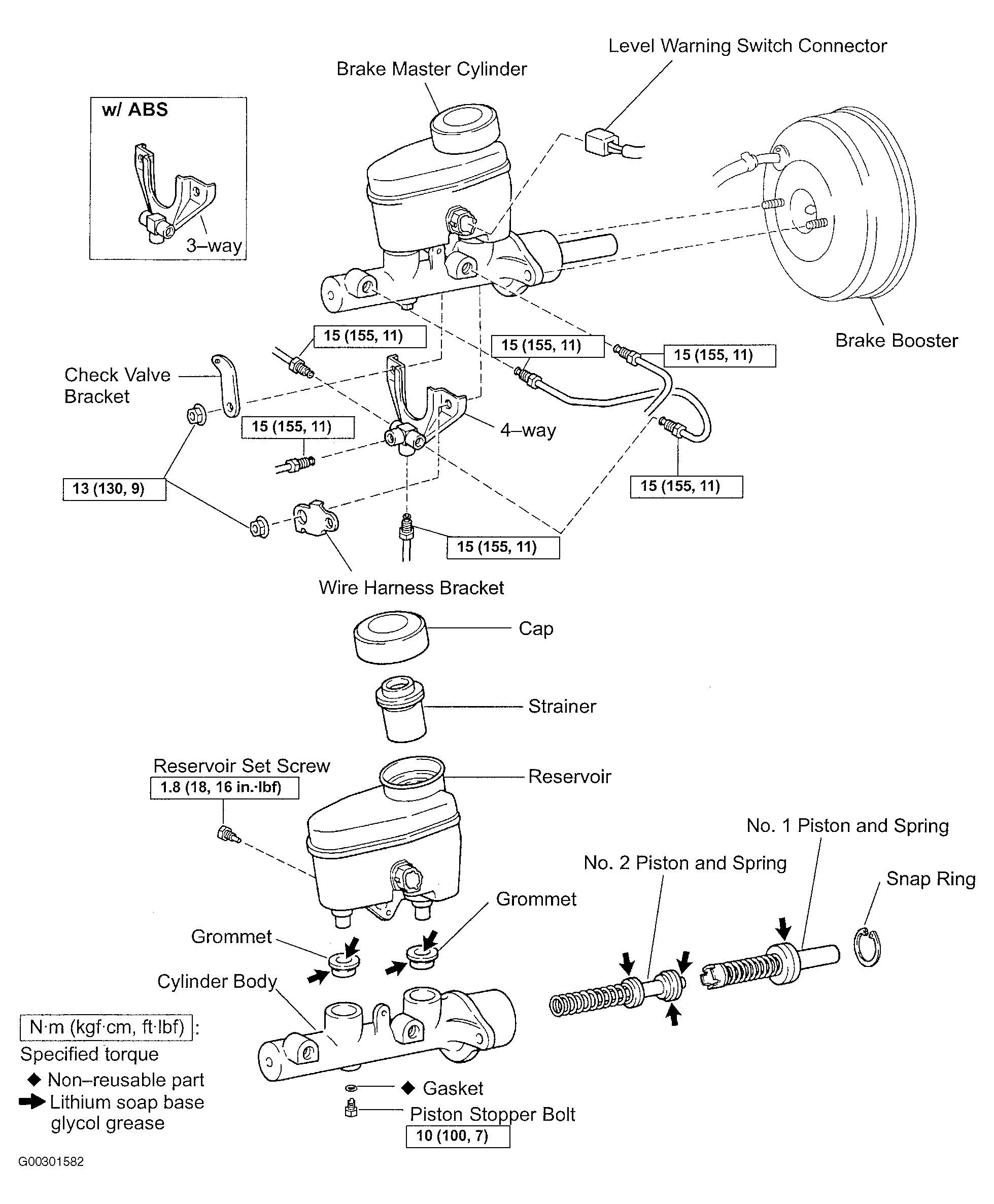

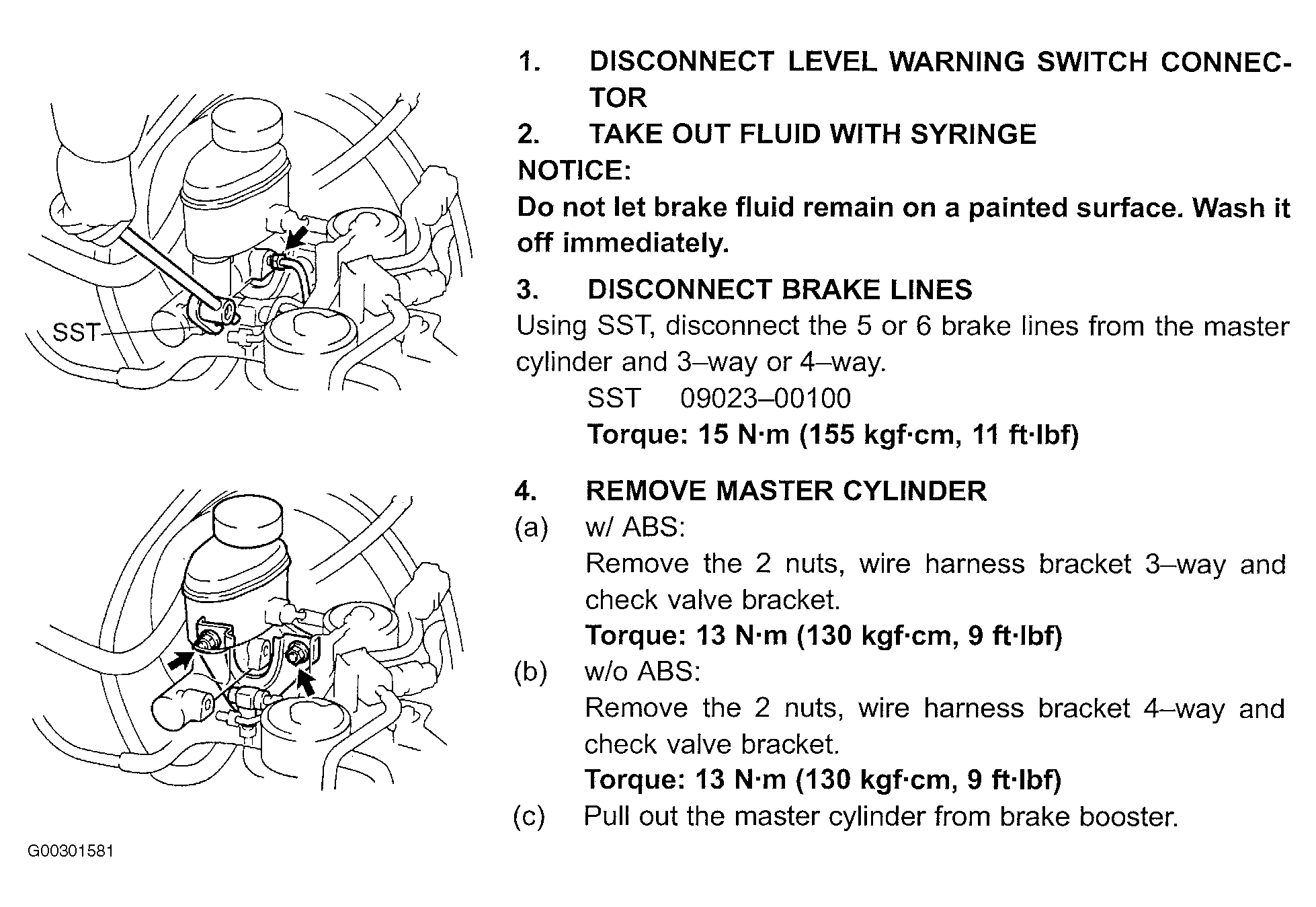

For removal procedure, see Fig 1. For component view, see Fig 2. To check and adjust power brake unit push rod, see POWER BRAKE UNIT PUSH ROD under ADJUSTMENTS. To install, reverse removal procedure. For brake system bleeding procedure, see BLEEDING BRAKE SYSTEM .
