Headlight And Taillight System: Inspection

INSPECT LIGHT CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

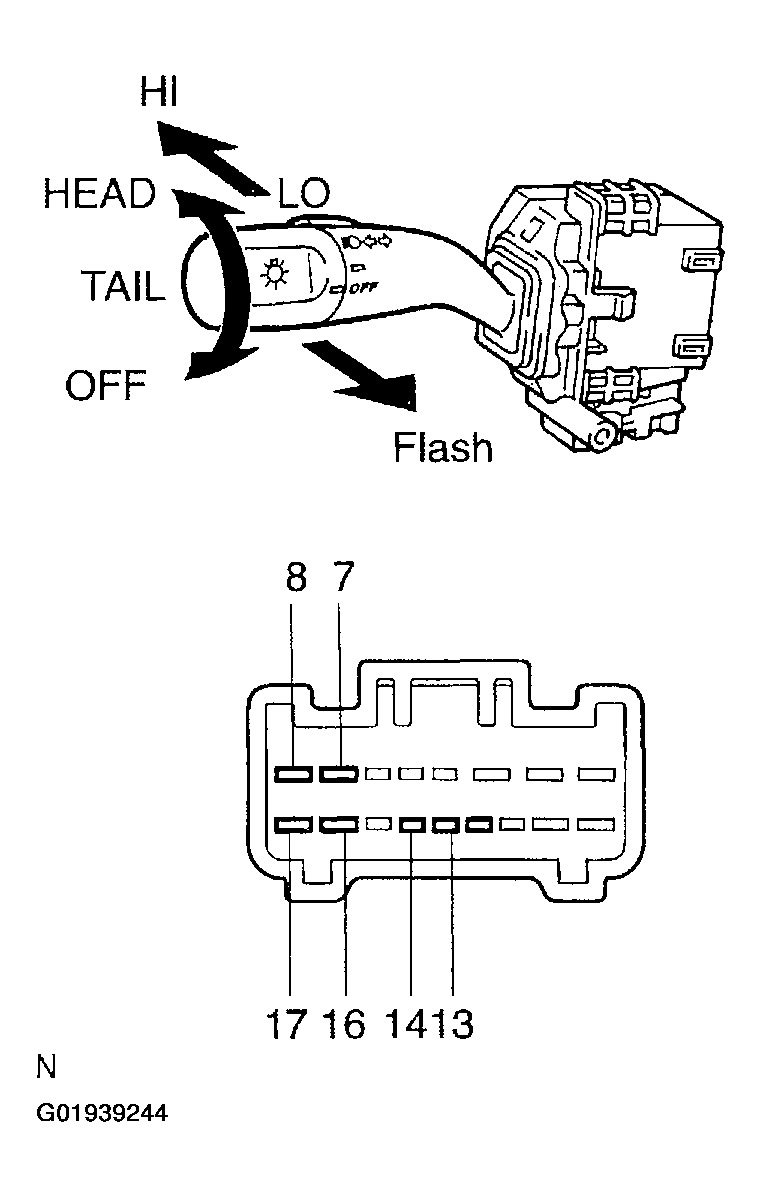

Fig 1: Identifying Light Control/Dimmer Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

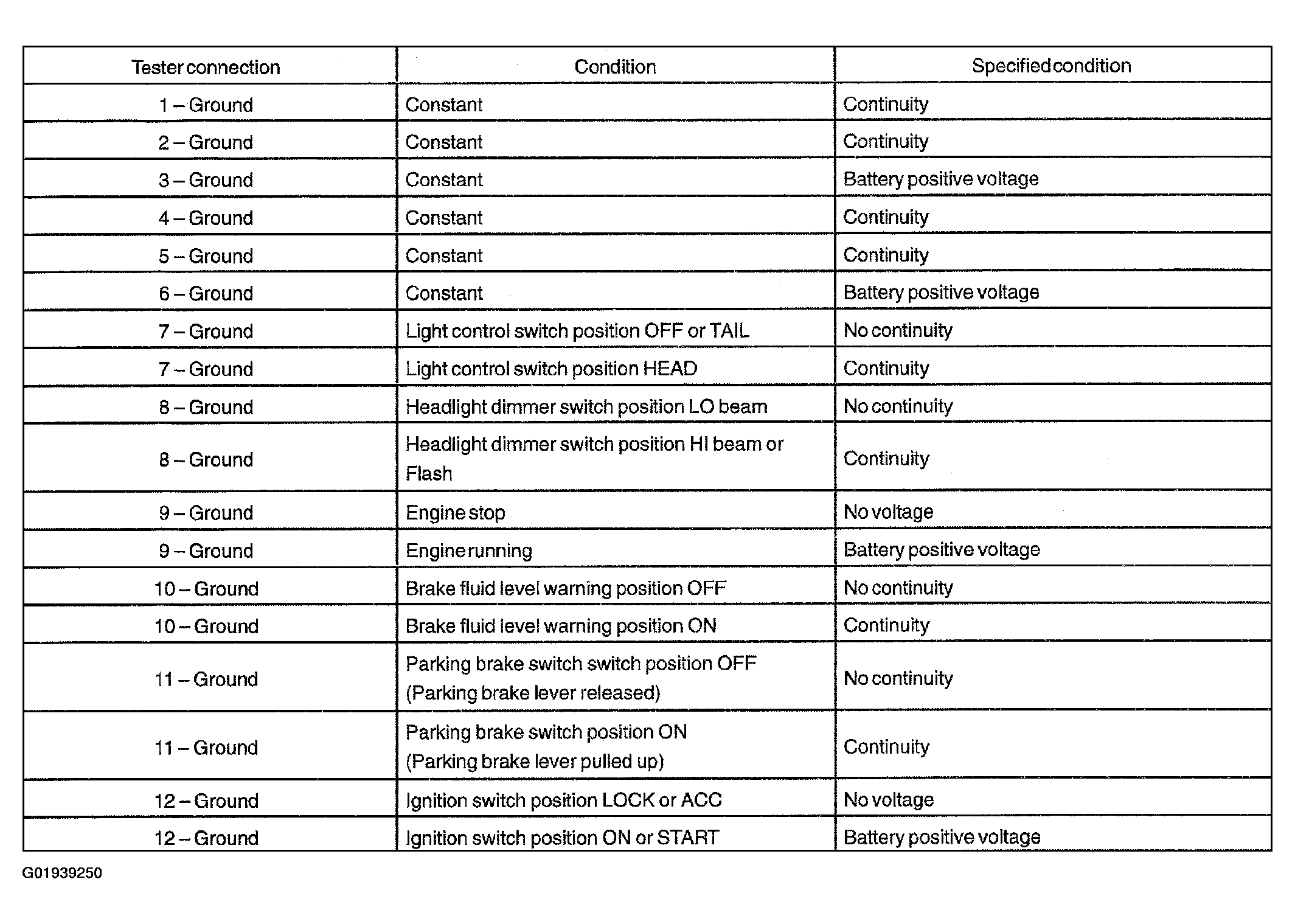

Fig 2: Identifying Light Control Switch Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT HEADLIGHT DIMMER SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

Fig 3: Identifying Dimmer Switch Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT HEADLIGHT CONTROL RELAY (Marking: H-LP) CONTINUITY
If continuity is not as specified, replace the relay.

Fig 4: Identifying Headlight Control Relay Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Headlight Control Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT TAILLIGHT CONTROL RELAY (Marking: TAIL) CONTINUITY
If continuity is not as specified, replace the relay.

Fig 6: Identifying Taillight Control Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Headlight Control Relay Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT DAYTIME RUNNING LIGHT RELAY (MAIN) CIRCUIT
Disconnect the connector from the relay and inspect the connector on the wire harness side, as shown in Fig 9.

Fig 8: Identifying Daytime Running Light Relay (Main Circuit) Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Daytime Running Light Relay (Main Circuit) Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If circuit is as specified, try replacing the relay with a new one. If circuit is not as specified, inspect the circuits connected to other parts.
INSPECT NO. 2 DAYTIME RUNNING LIGHT RELAY (Marking: DRL NO.2) CONTINUITY
If continuity is not as specified, replace the relay.

Fig 10: Identifying No. 2 Daytime Running Light Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying No. 2 Daytime Running Light Relay Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT NO. 4 DAYTIME RUNNING LIGHT RELAY (Marking: DRL NO. 4) CONTINUITY
If continuity is not as specified, replace the relay.

Fig 12: Identifying No. 4 Daytime Running Light Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Identifying No. 4 Daytime Running Light Relay Test Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SIDE MARKER LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.

If continuity is not as specified, replace the light assembly or bulb.

Fig 14: Identifying Side Marker Light Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
