Power Brake Unit Push Rod

WARNING: This page is about a different car, the 2003 Toyota Tundra and 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For procedure, see Fig 1. For component view, see Fig 2.

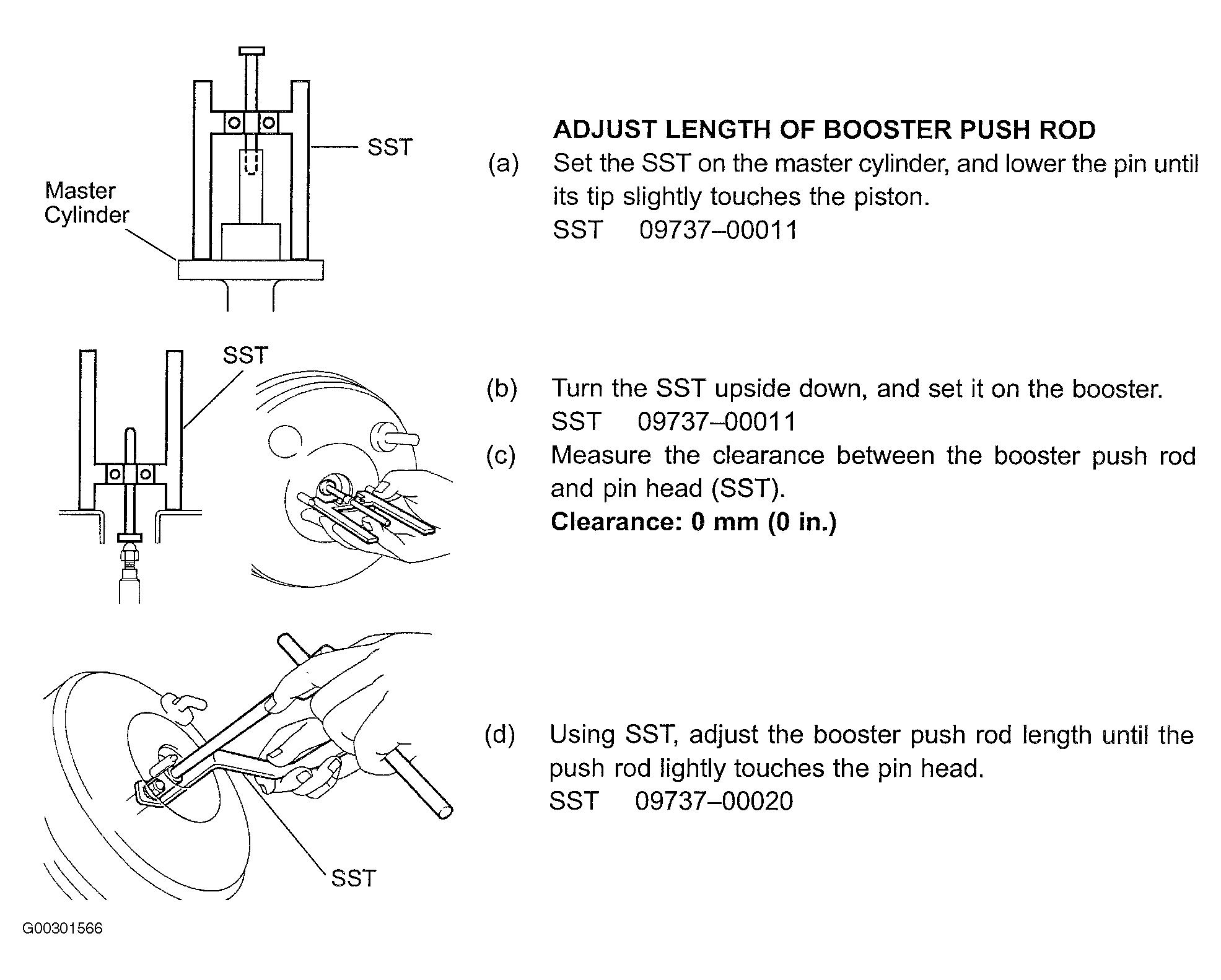

Fig 1: Brake Booster Push Rod Length Adjustment Procedure
G00301566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

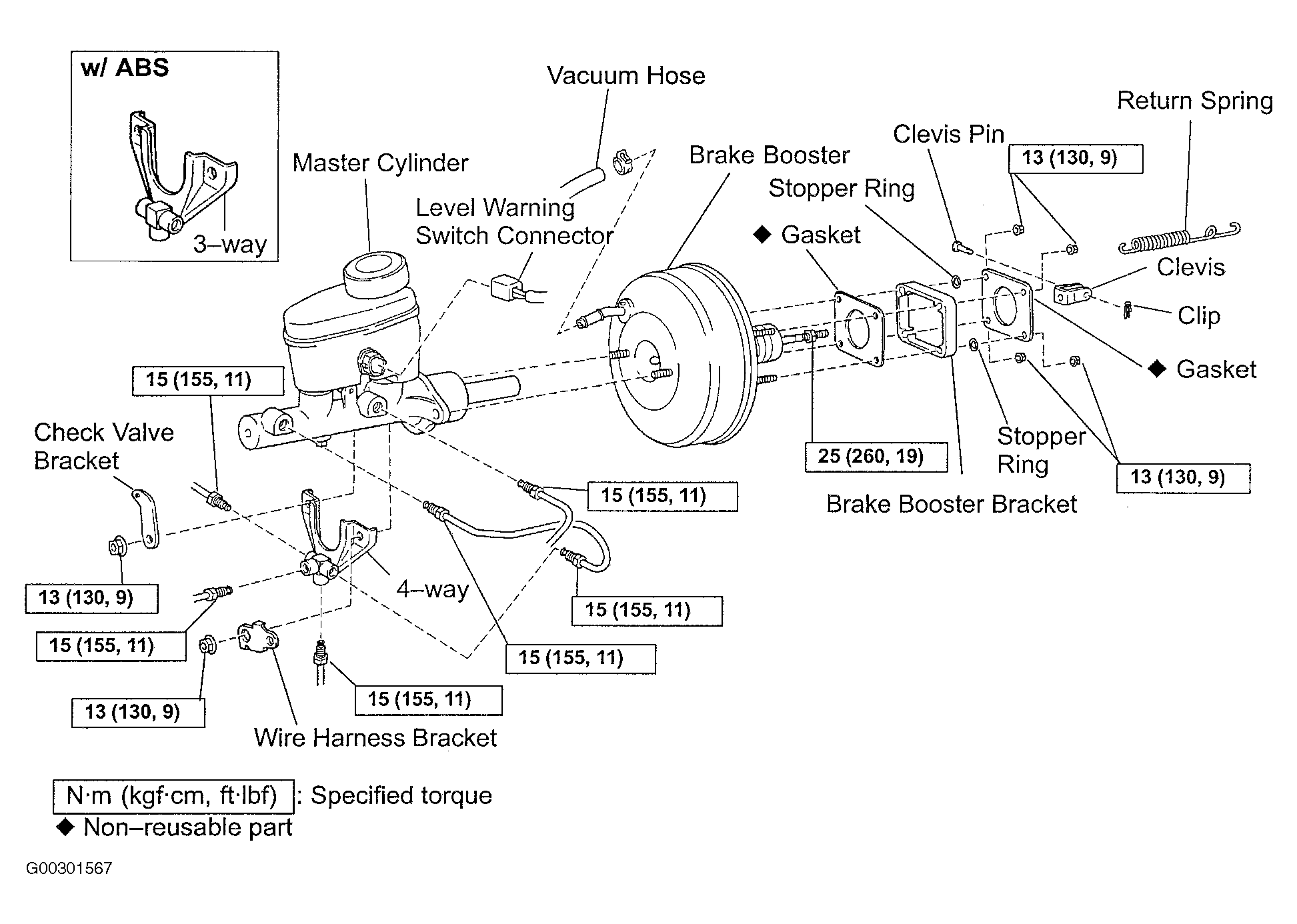

Fig 2: Locating Brake Booster Components
G00301567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
