Combination Meter: Circuit

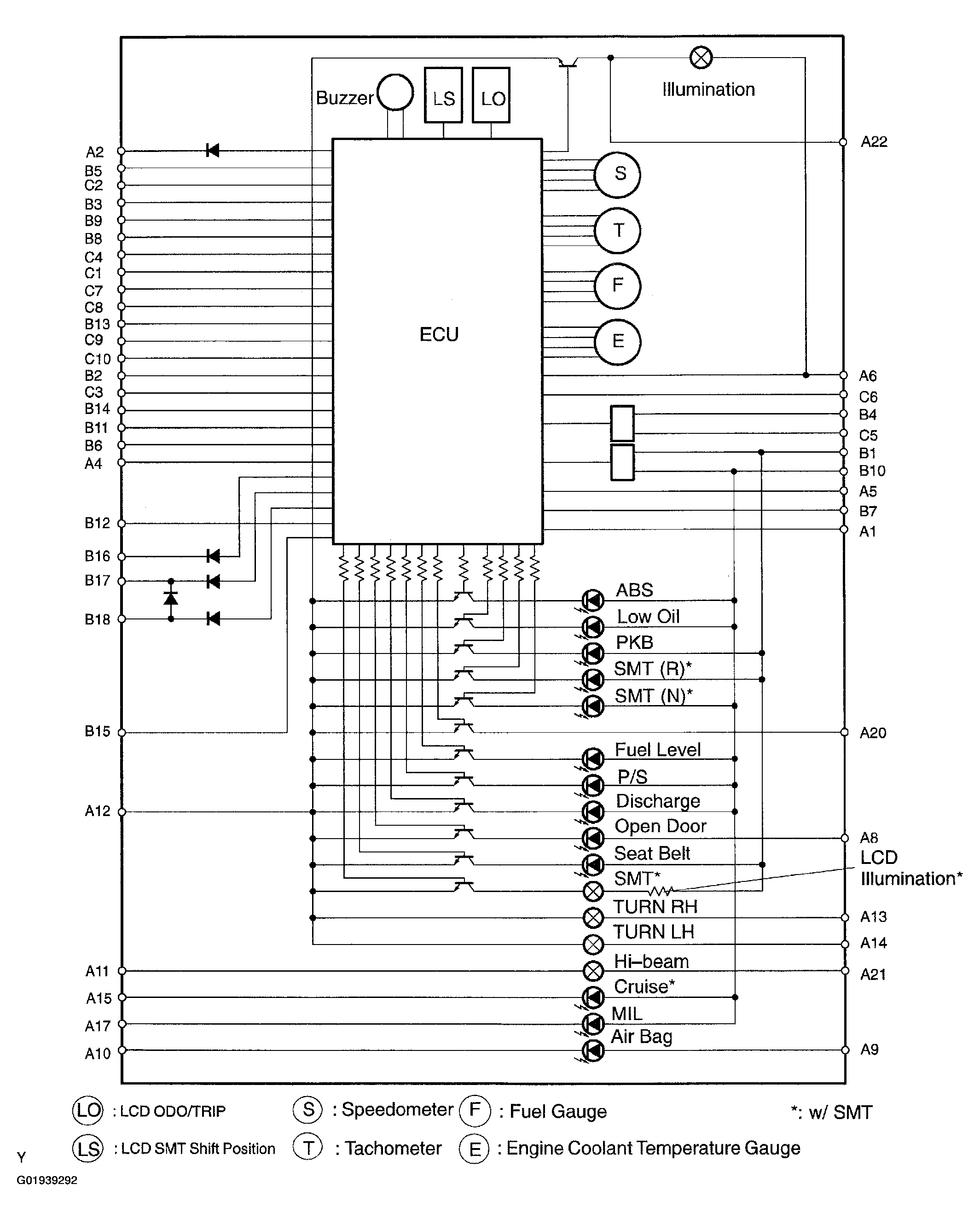

Fig 1: Identifying Combination Meter Circuits
G01939292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

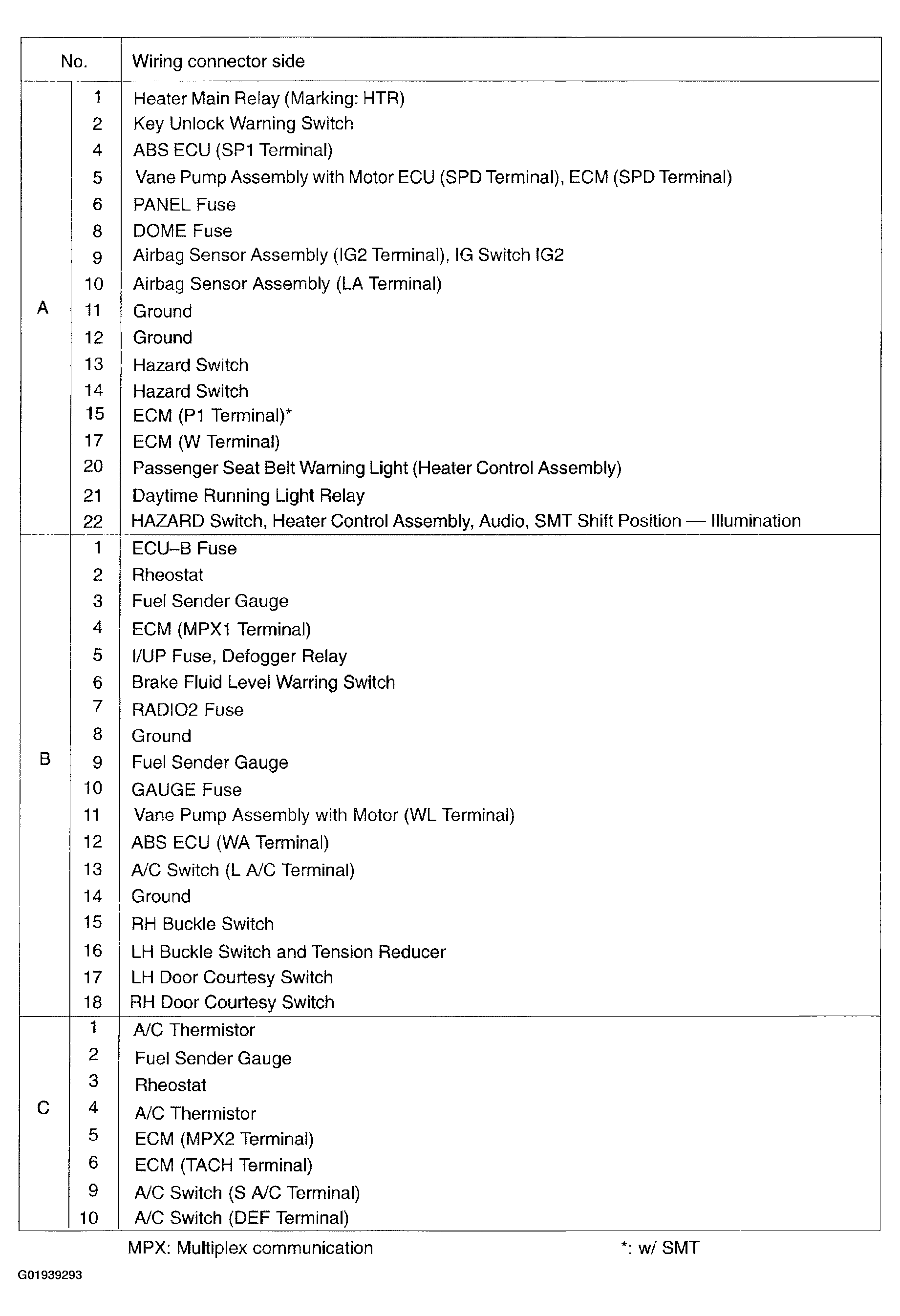

Fig 2: Identifying Combination Meter Connector Terminal Circuits
G01939293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
