Gauges & Instrument Panels: Clock: Troubleshooting

Fig 1: Determining Starting Step Based On Symptom

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

+/- 1.5 seconds / day

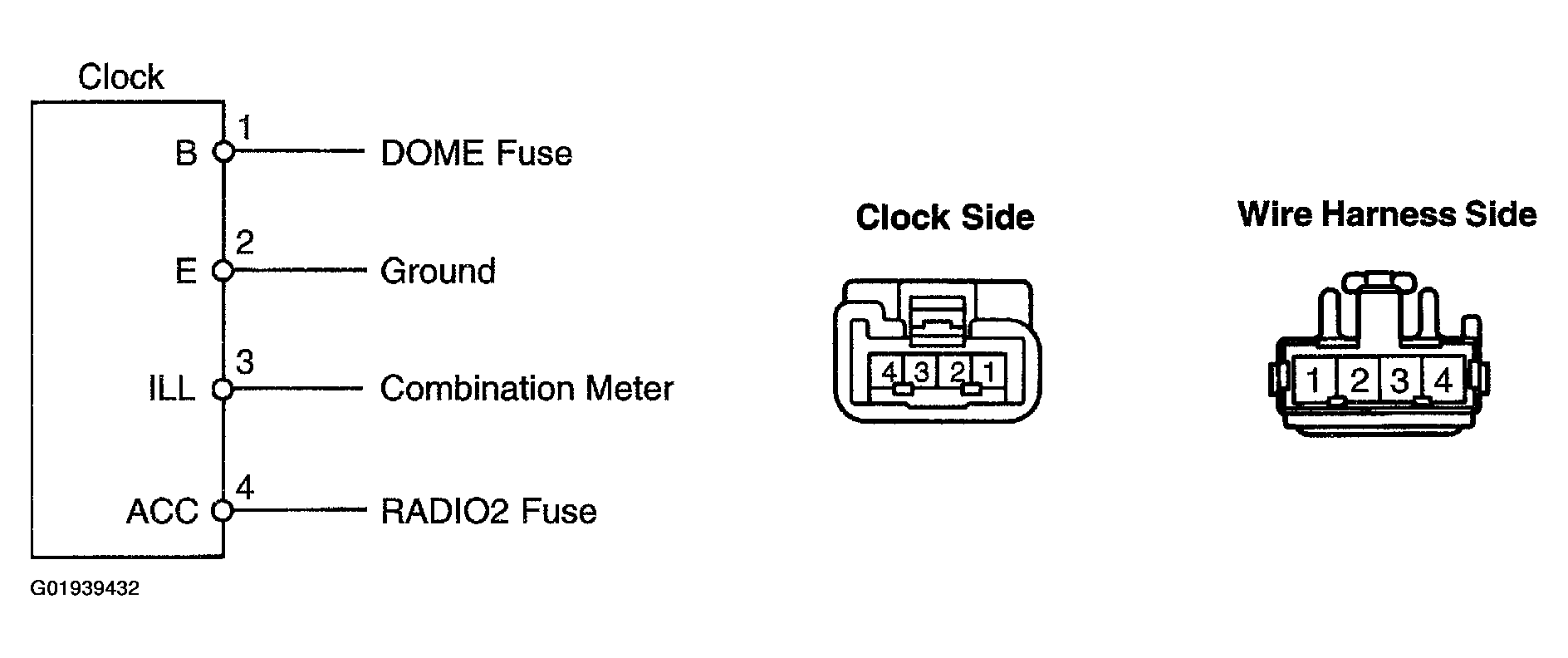

Fig 2: Identifying Clock Connector Terminals & Related Circuits

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. TROUBLESHOOTING NO. 1
   1. CLOCK WILL NOT OPERATE
      1. Check that the battery positive voltage is 10 - 16 V. If voltage is not as specified, replace the battery.
      2. Check that the DOME and RADIO2 fuses are not blown. If the fuse is blown, replace the fuse and check for short.
      3. Troubleshoot the clock as follows.
      NOTE: Inspect the connector on the wire harness side.

      Fig 3: Identifying Connectors & Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

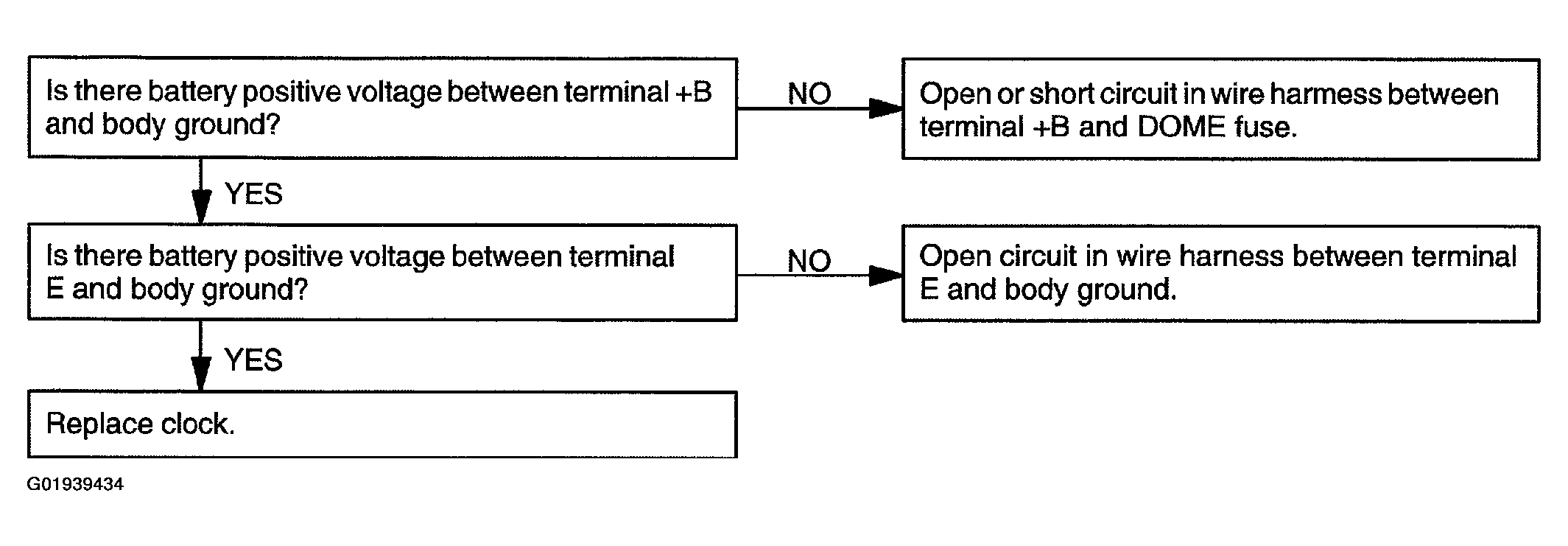

      Fig 4: Diagnosing Clock Inoperative Condition

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. TROUBLESHOOTING NO. 2
   1. CLOCK LOSES OR GAINS TIME
      1. Check that the battery positive voltage is 10 - 16 V. If voltage is not as specified, replace the battery.
      2. Inspect the error of the clock.

         Allowable error (per day): +/- 1.5 seconds

         If the error exceeds the allowable error, replace the clock.

      3. Check that the clock adjusting button is sticking in position and has failed to return.

         If the error exceeds the allowable error, replace the clock.

      4. Troubleshoot the clock as follows.

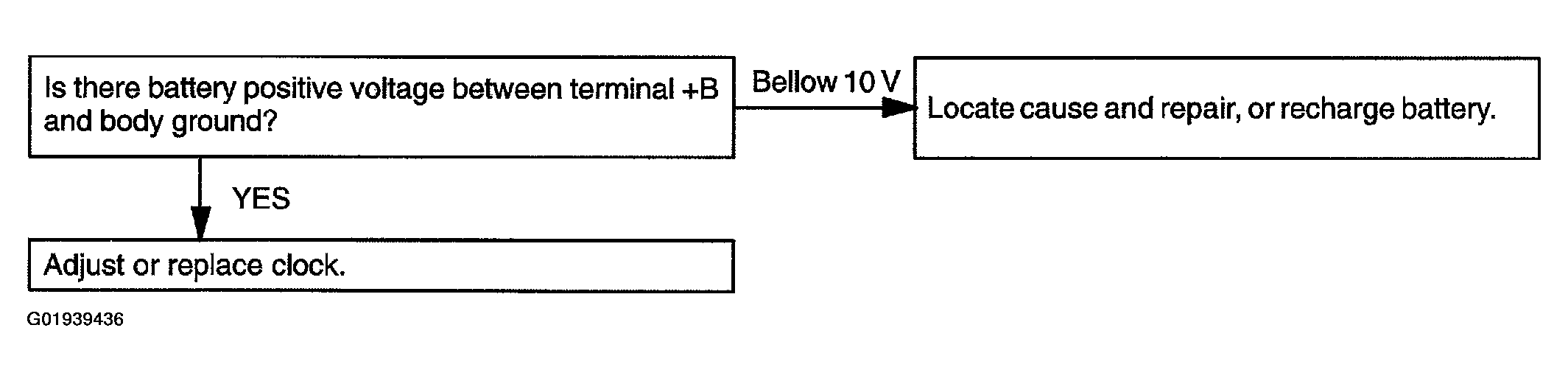

         Fig 5: Diagnosing Clock Losing Or Gaining Time

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Inspect the connector on the wire harness side.

      Fig 6: Identifying Connectors & Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
