Pedal Stroke Adjustment

WARNING: This page is about a different car, the 2003 Toyota Tundra and 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For procedure, see Fig 1. For component view, see Fig 2.

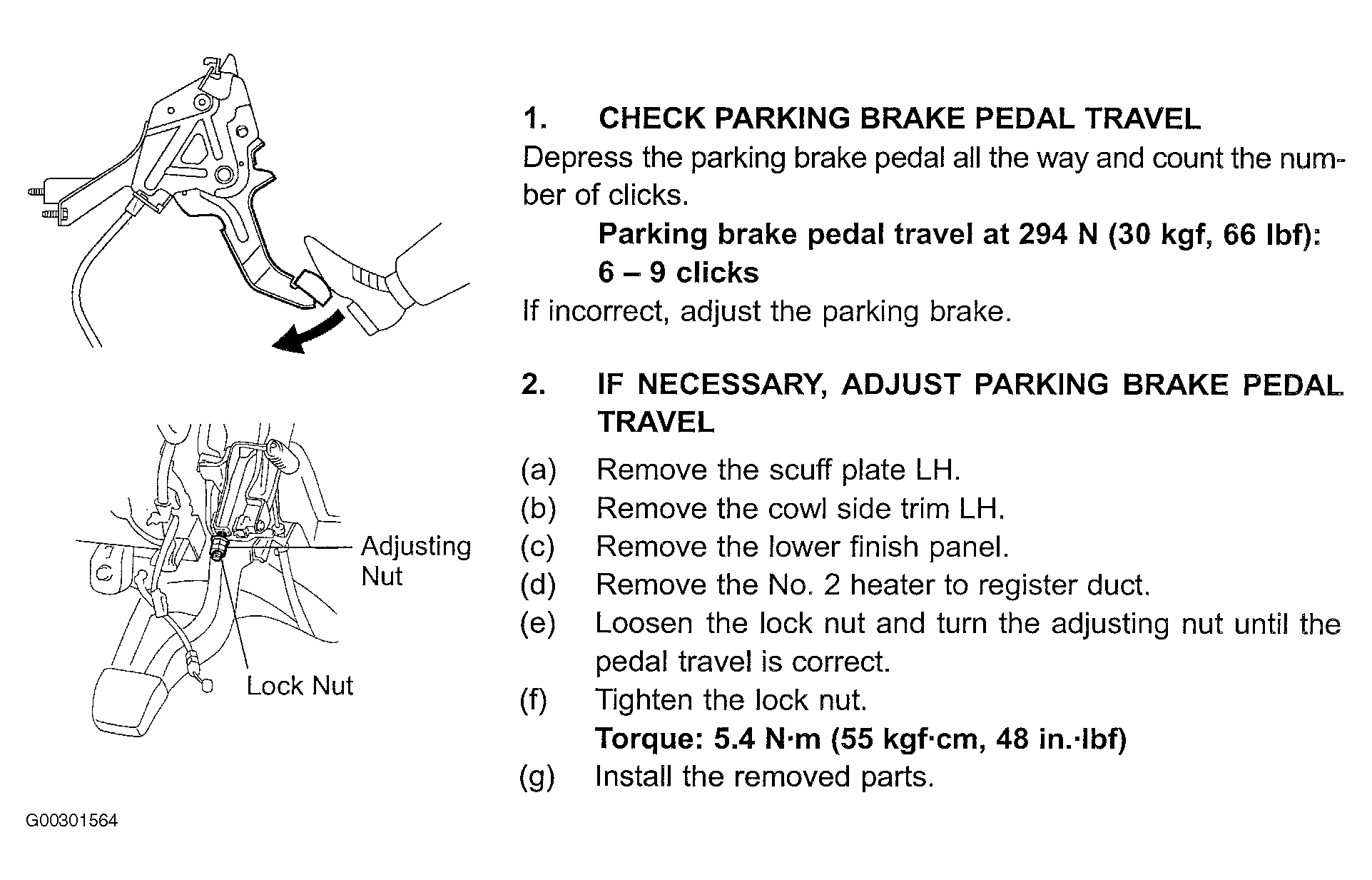

Fig 1: Parking Brake Pedal Adjustment Procedure
G00301564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Locating Parking Brake Pedal Components
G00301565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
