Terminals Of Ecu

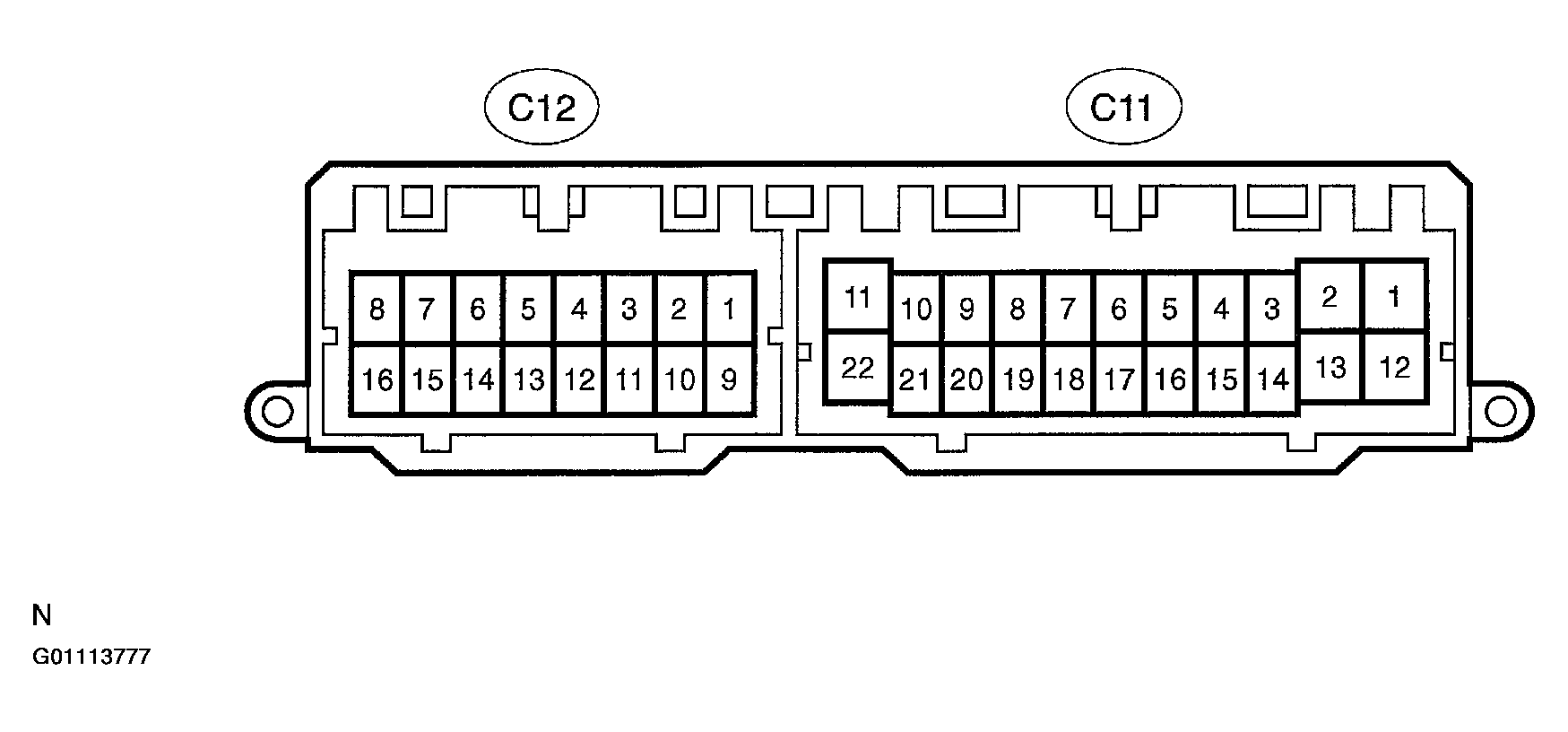

Fig 1: Identifying ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

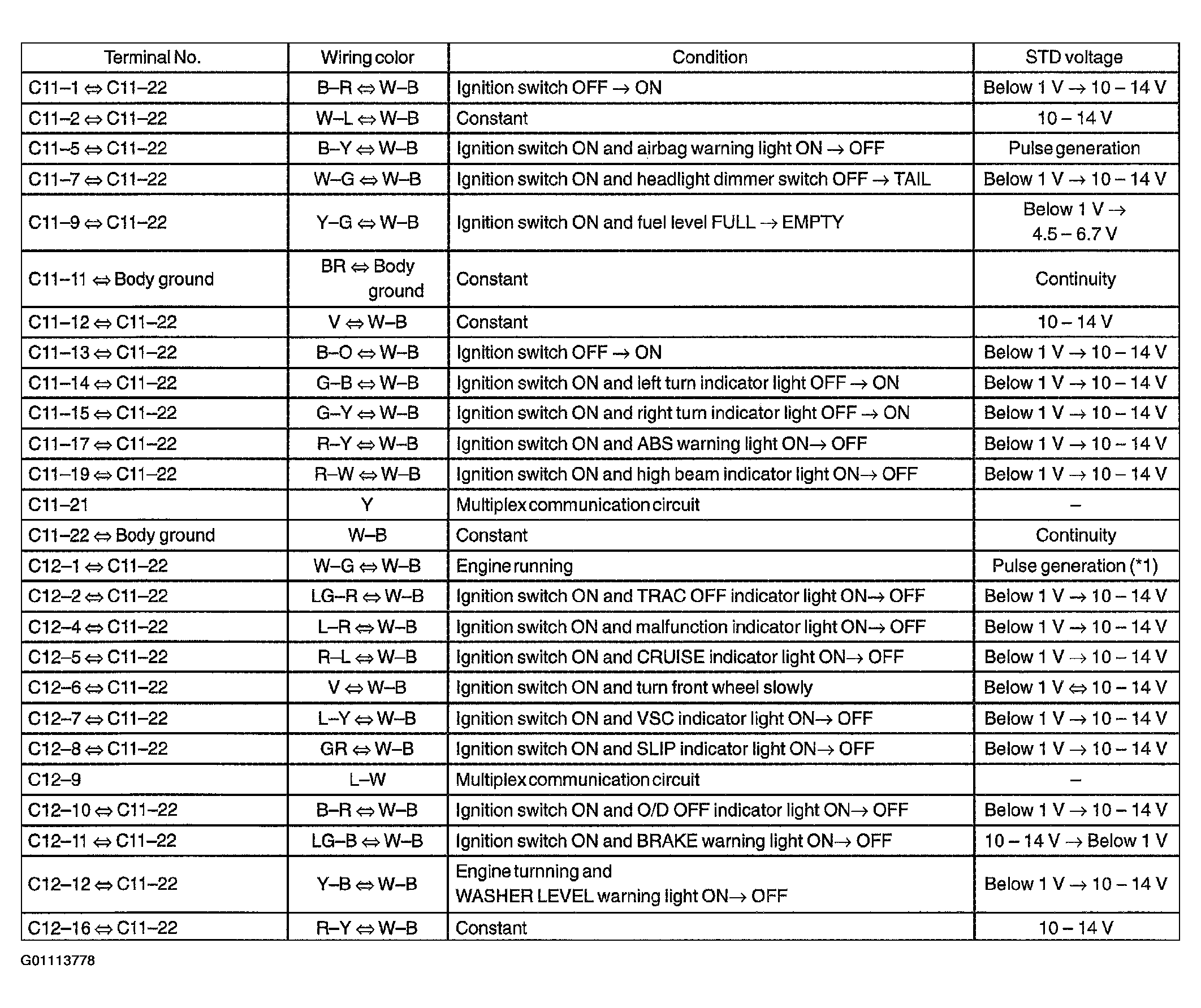

Fig 2: Reviewing ECU Terminal Information

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(*1): Reference: Using oscilloscope:

Fig 3: Reviewing ECU Information

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Reviewing ECU Oscilloscope Pattern

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
