Customer Problem Analysis Check: Location

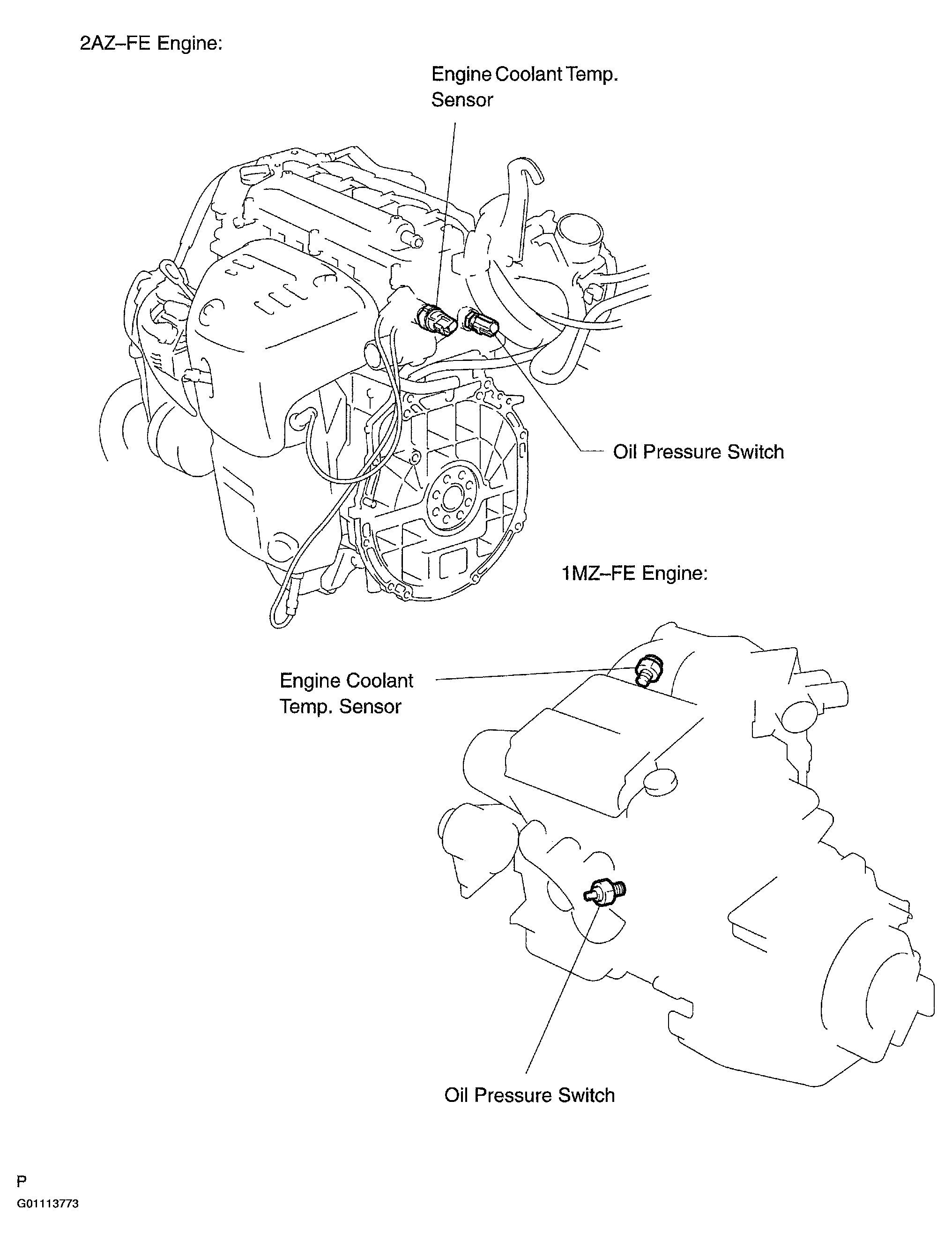

Fig 1: Locating Combination Meter Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

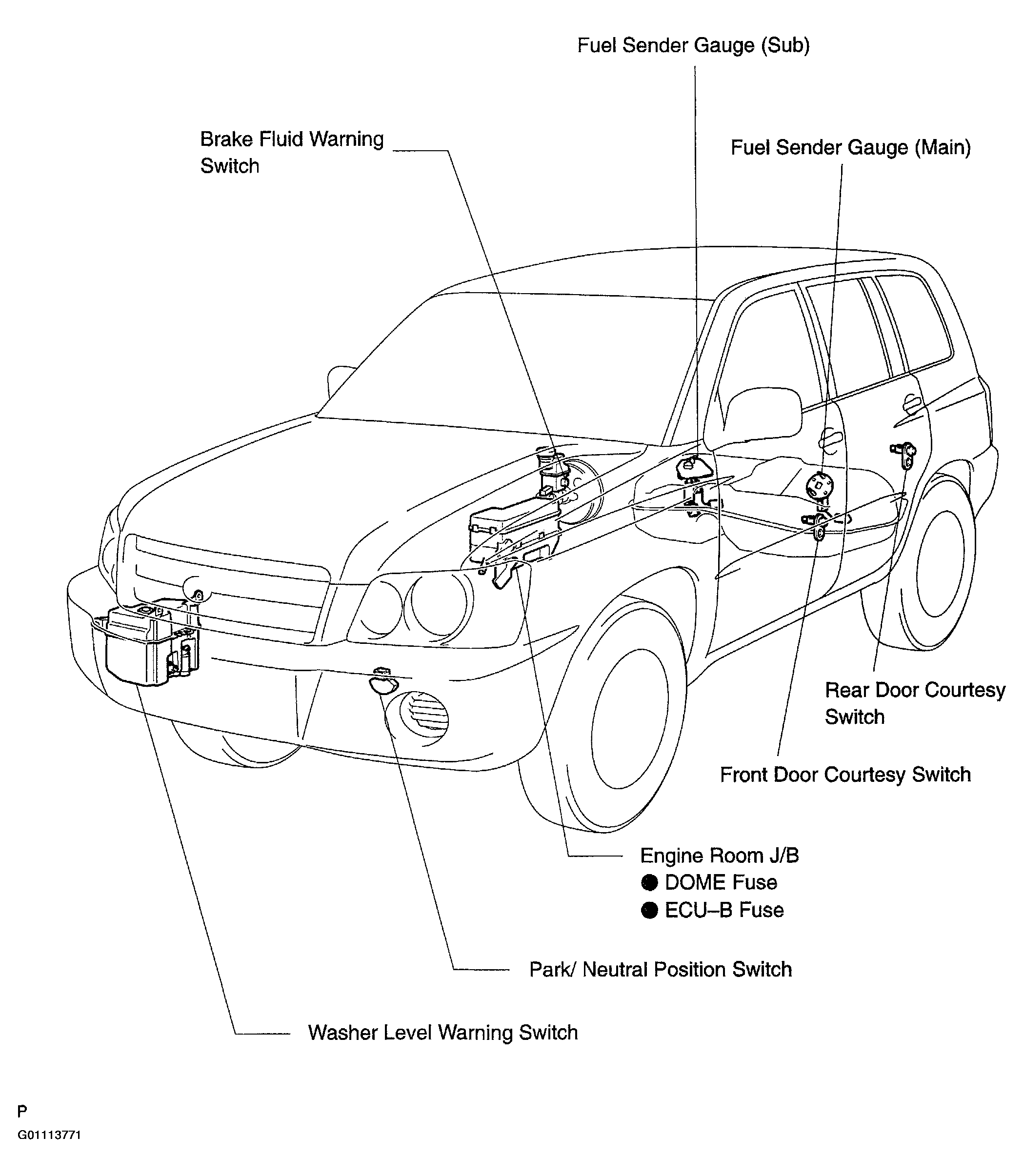

Fig 2: Locating Combination Meter Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

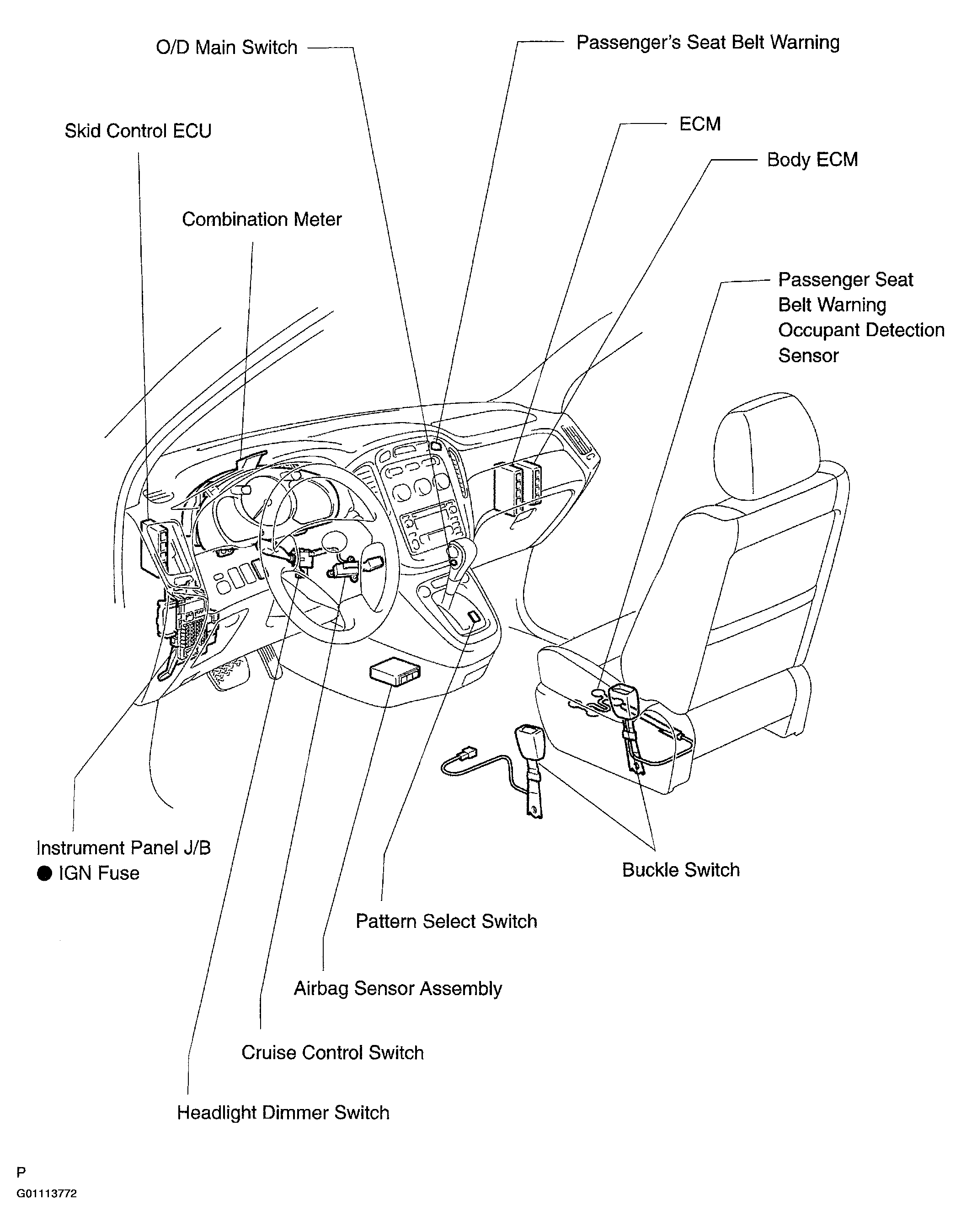

Fig 3: Locating Combination Meter Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

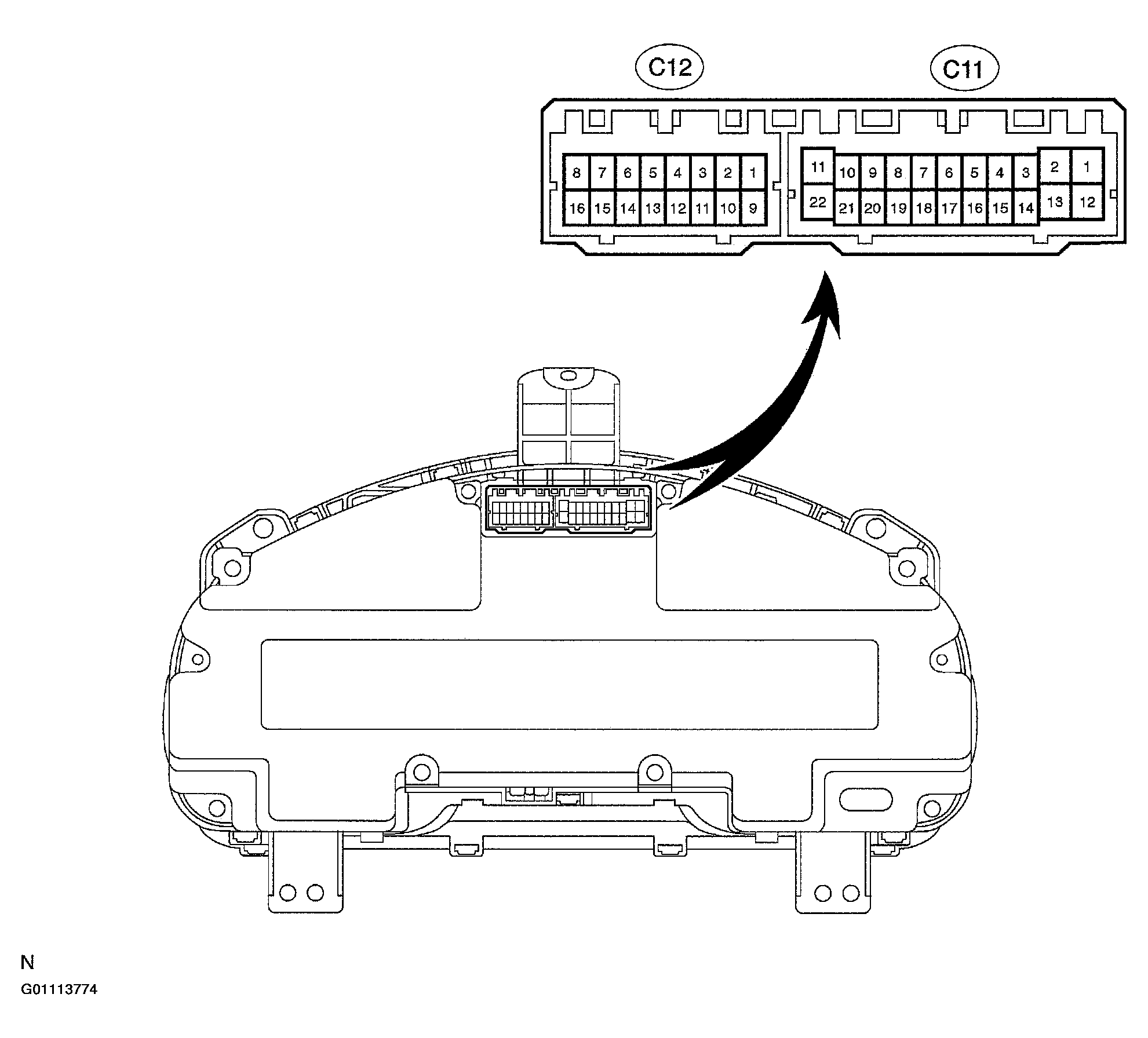

Fig 4: Identifying Combination Meter Terminal Connector

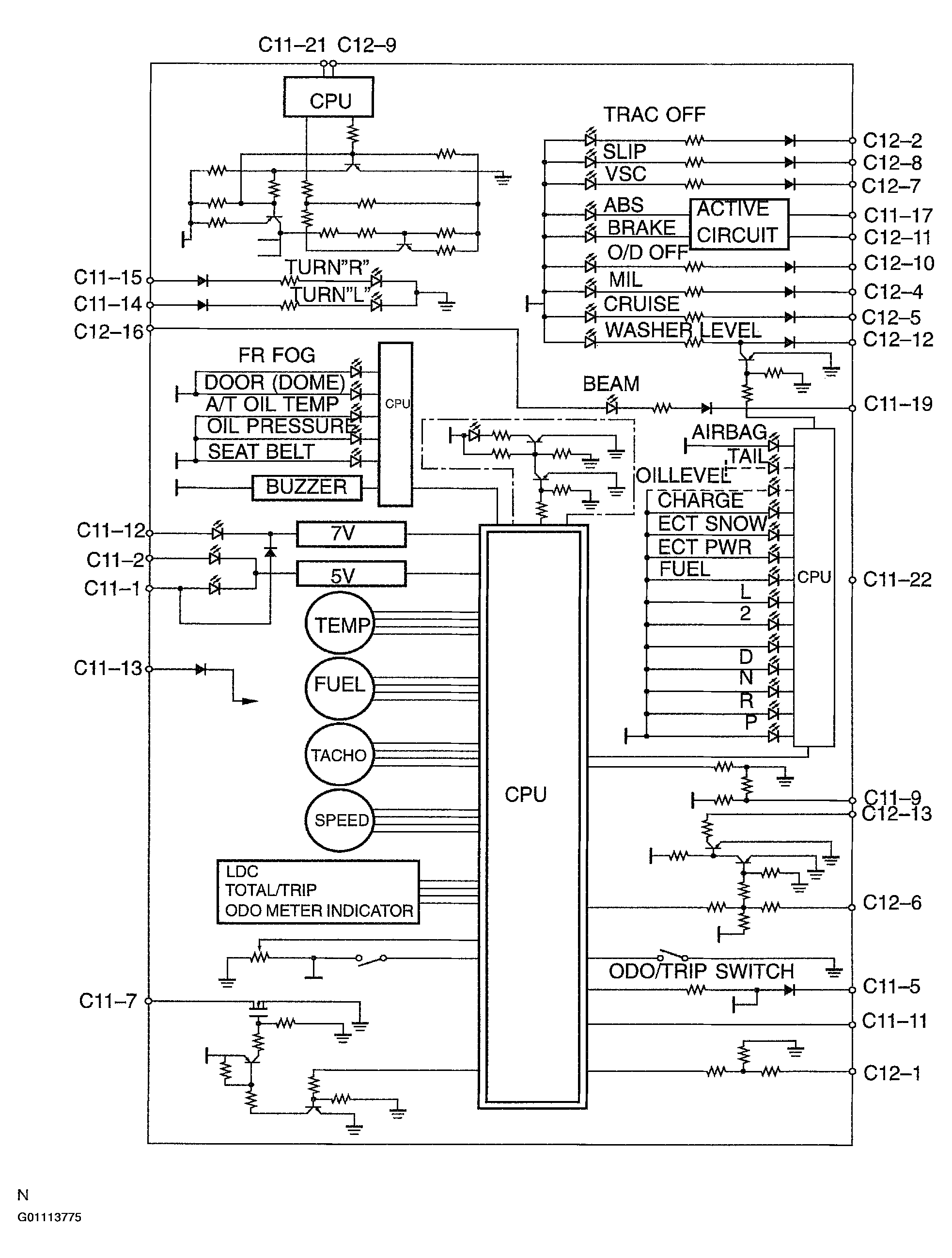

Fig 5: Reviewing Combination Meter Circuit

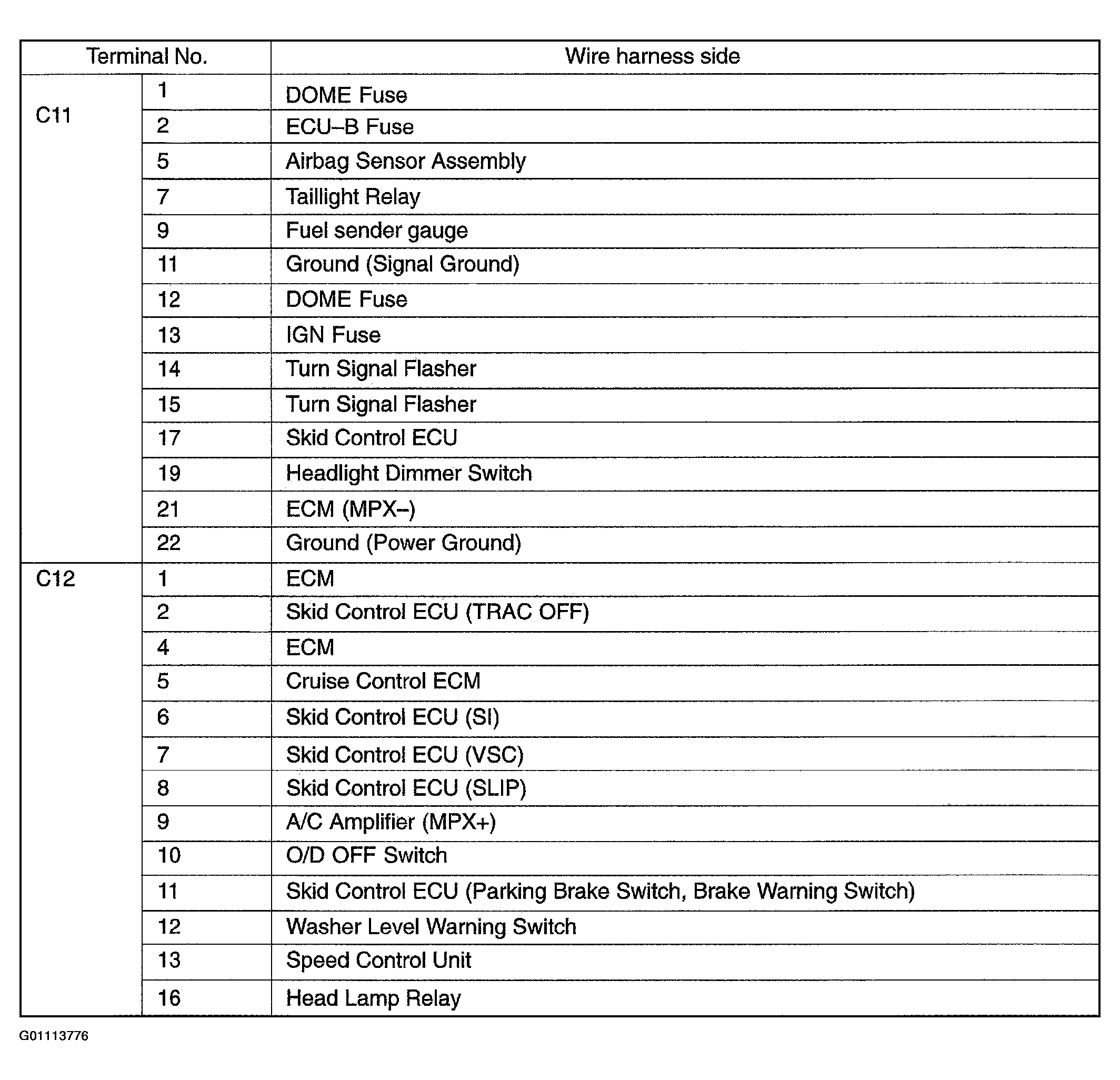

Fig 6: Reviewing Combination Meter Terminal Numbers
