Canada - Suspension - Stabilizer Bar Bracket Bolt Installation

Bulletin
1218

Issue Date
2003-06-02

Reference
FS-03-001

Model
Echo

Year Range
2003, 2002

Market
Canada

Component
FS

Subject:
STABILIZER BAR BRACKET BOLT

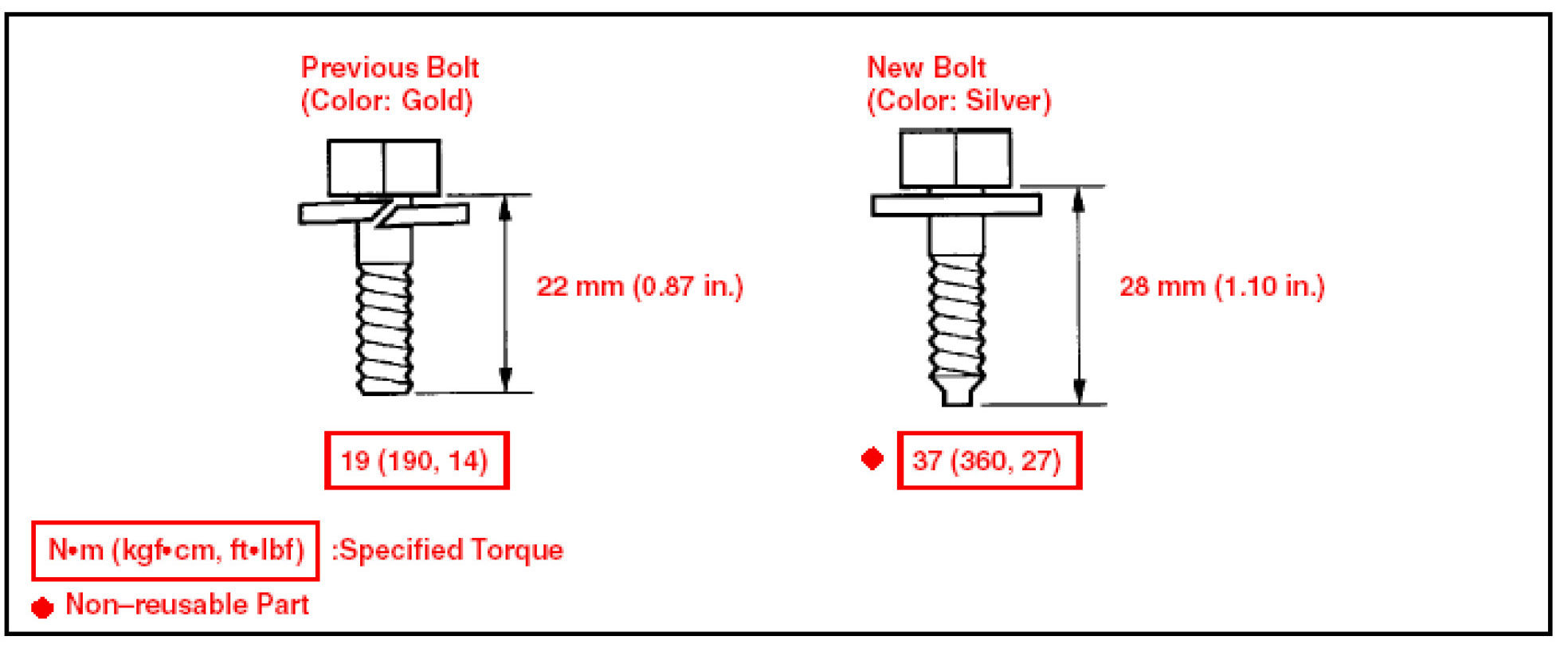

A new stabilizer bar bracket bolt is now being used in production. This bolt is non reusable and must be replaced when removed.

APPLICABLE VEHICLES: 2002 - 2003 model year ECHO vehicles produced AFTER the Production Change Effective VINSs listed.

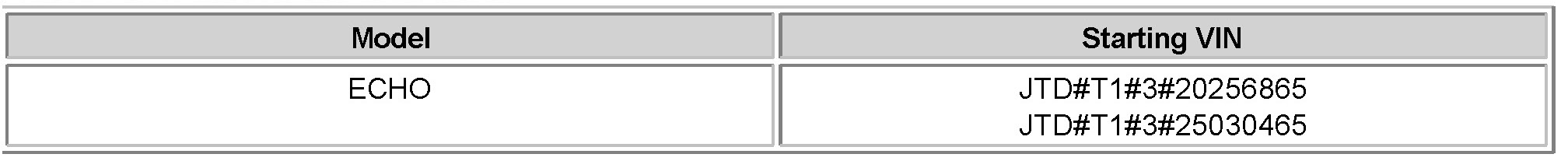

PRODUCTION CHANGE INFORMATION:

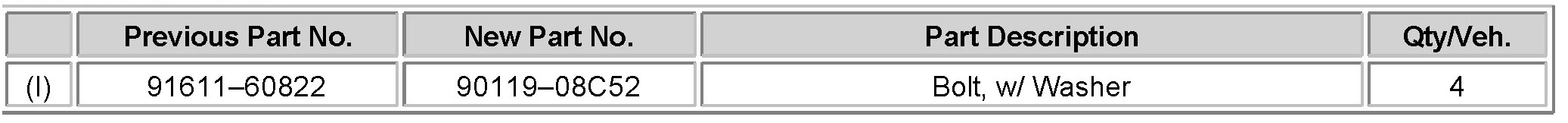

PARTS INFORMATION:

NOTE:
This part is not interchangeable with the old part. Please refer to the Production Change Information table.







INSTALLATION PROCEDURE:

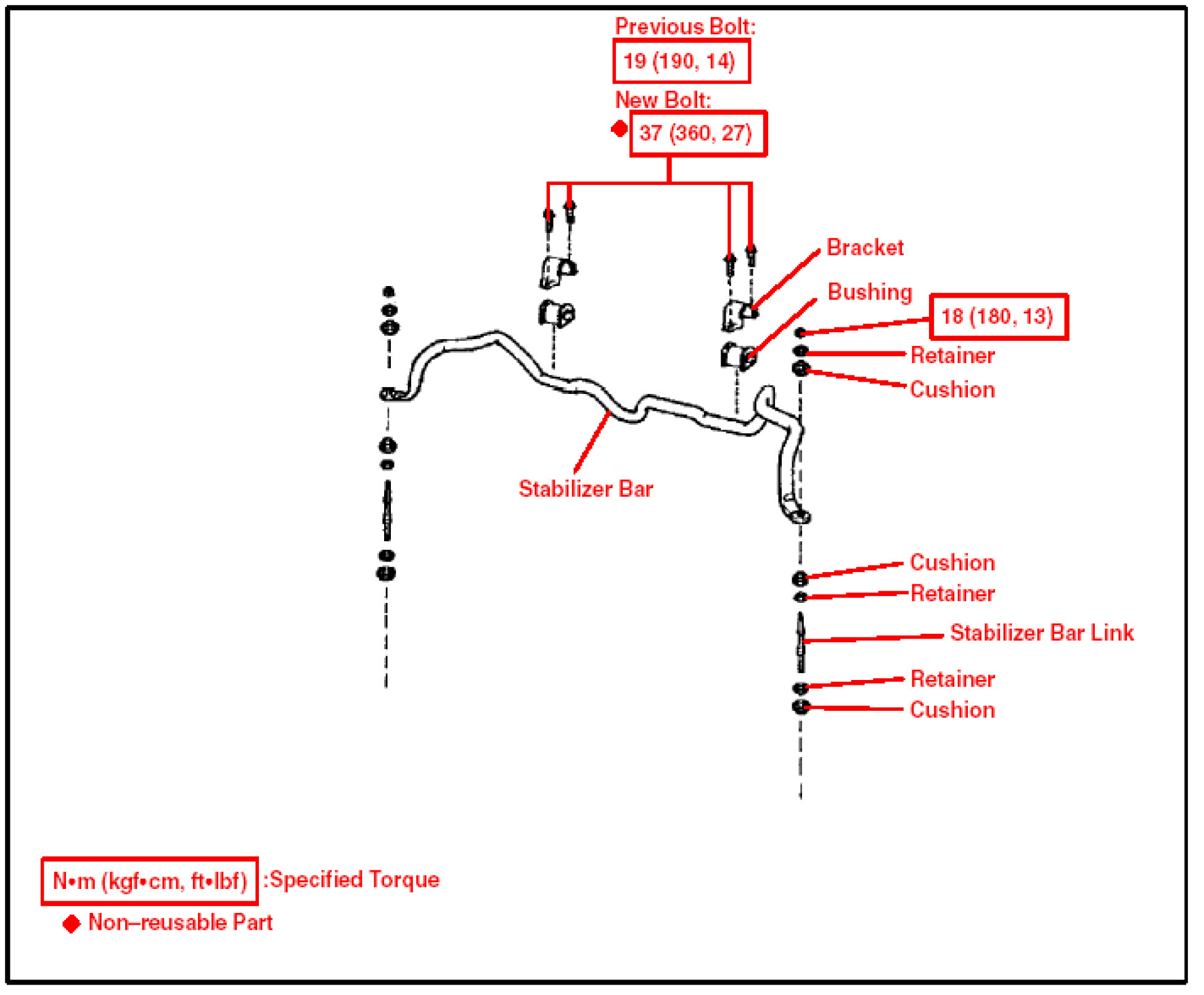

INSTALL BUSHINGS AND BRACKETS
Install the 2 bushings and brackets with the 4 bolts.

HINT:

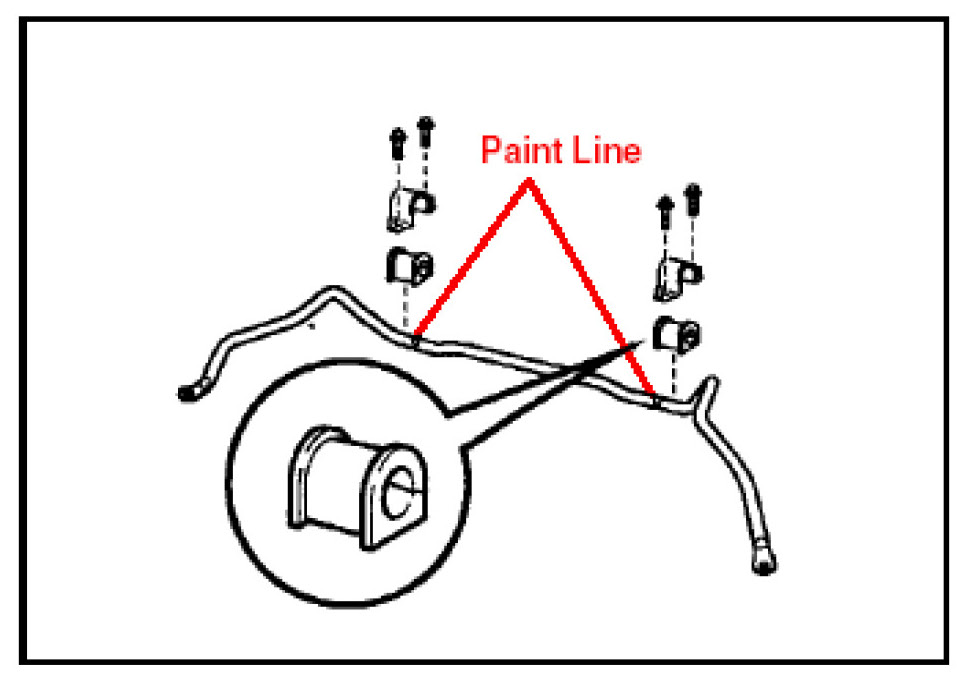

Install the bushings to the outside of each paint line.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
