Home >> Toyota >> 2002 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Locations

Starter Motor: Locations

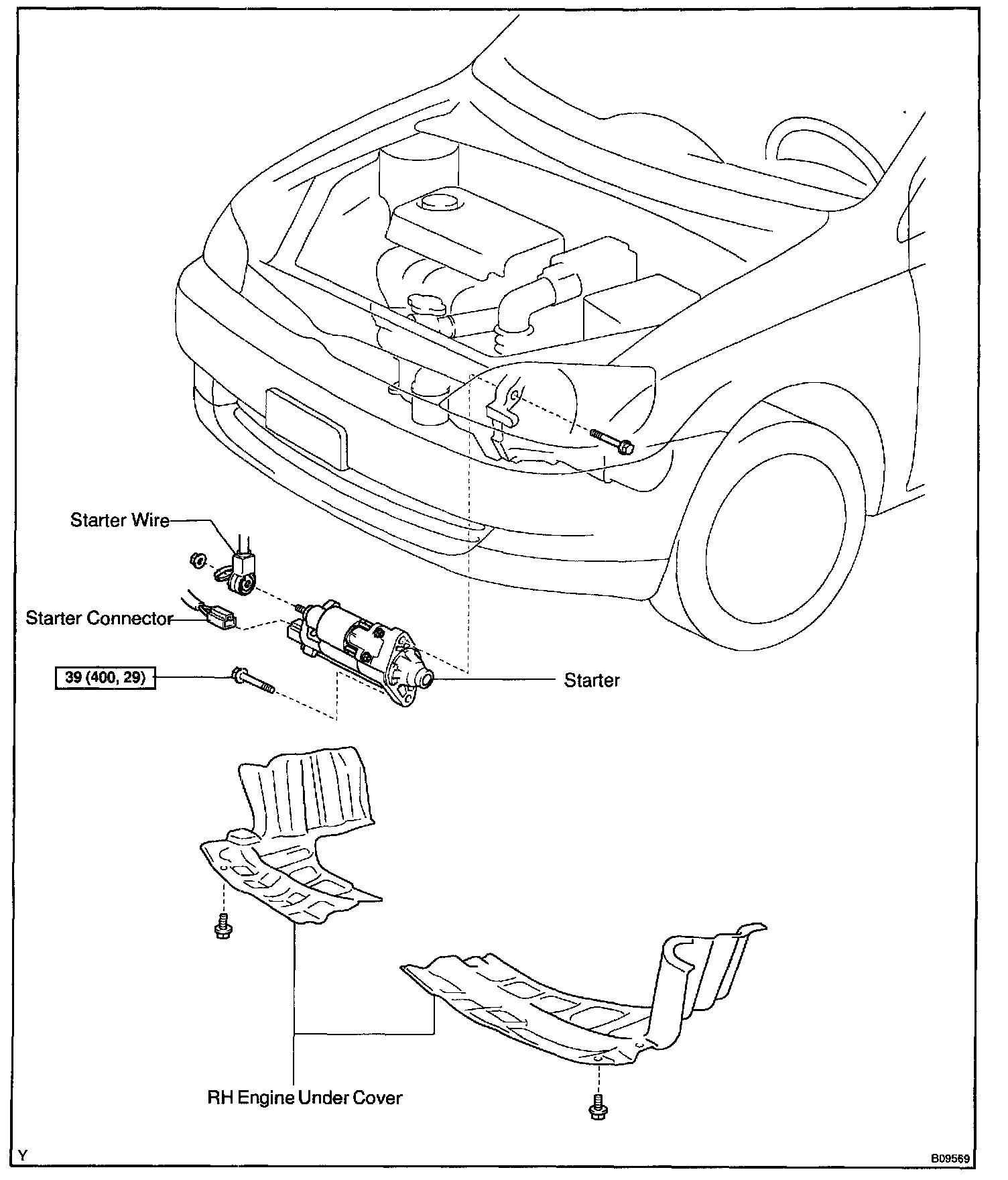

Starter (Part 1):
