How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING

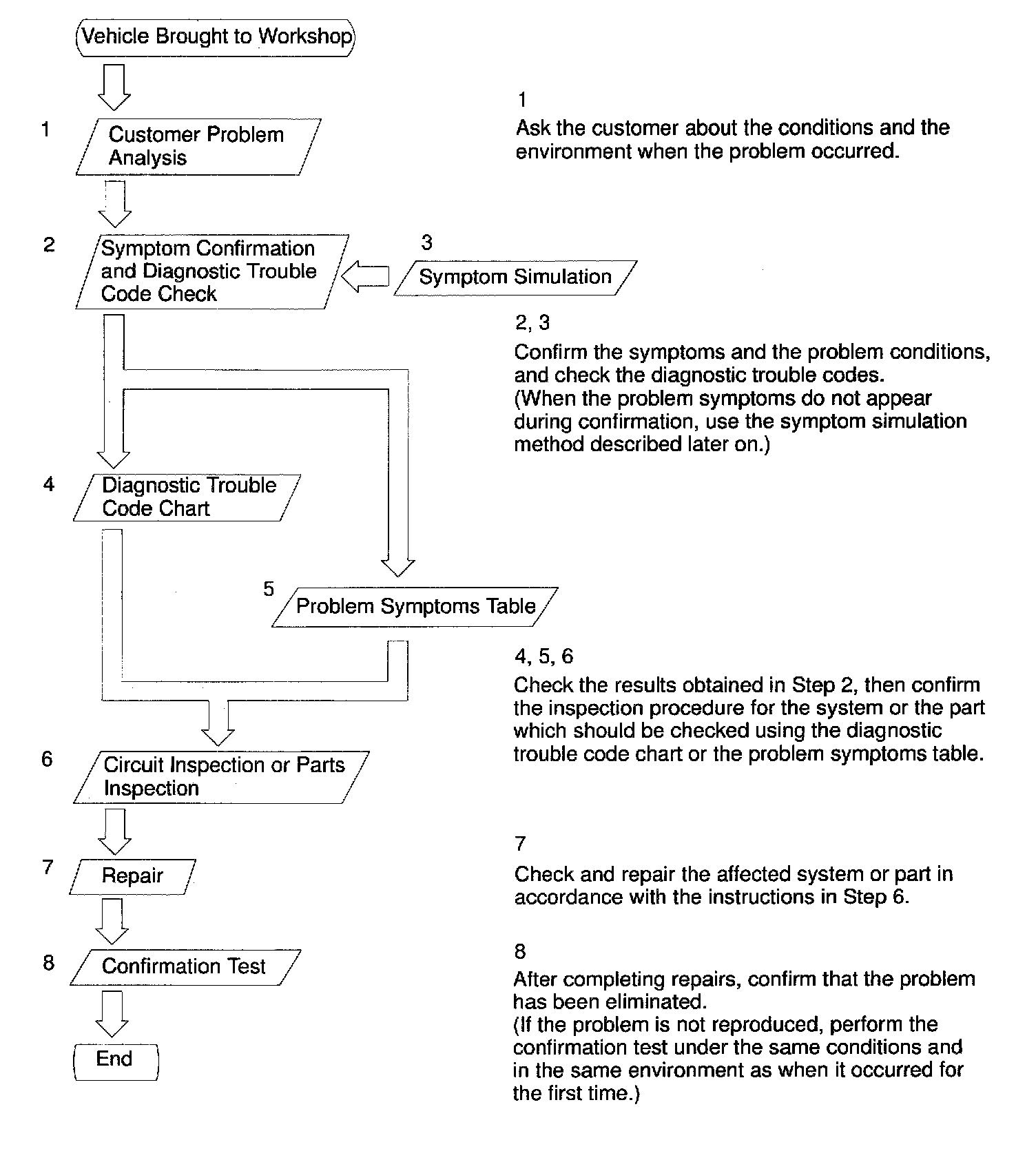

Carry out troubleshooting in accordance with the procedure on the following page. Here, only the basic procedure is shown Details are provided in Diagnostics section, showing the most effective methods for each circuit. Confirm the troubleshooting procedures first for the relevant circuit before beginning troubleshooting of that circuit.
