Pinout Values and Diagnostic Parameters
Terminals Of ECU - Connector View:

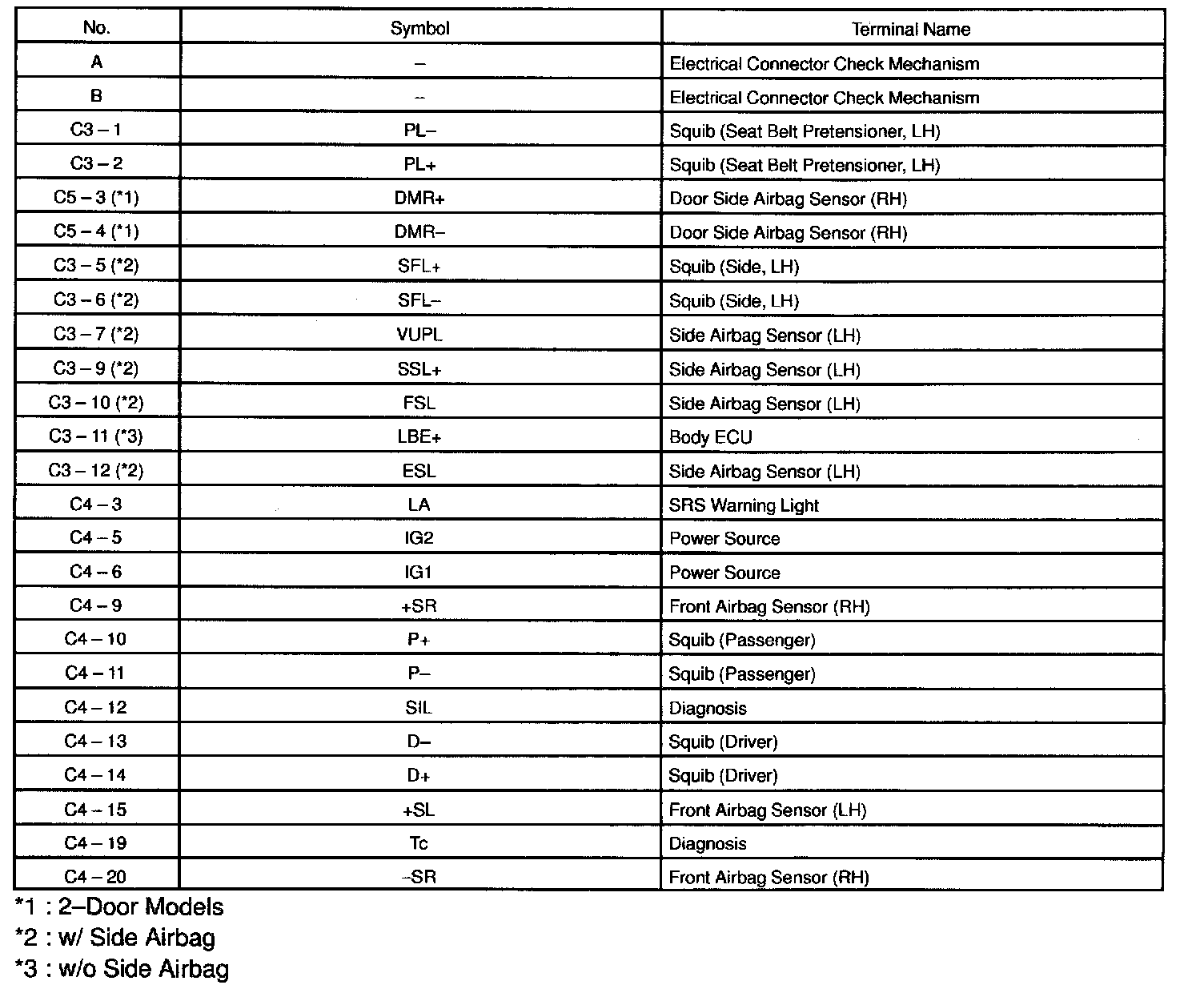

Terminals Of ECU - Pinouts (Part 1):

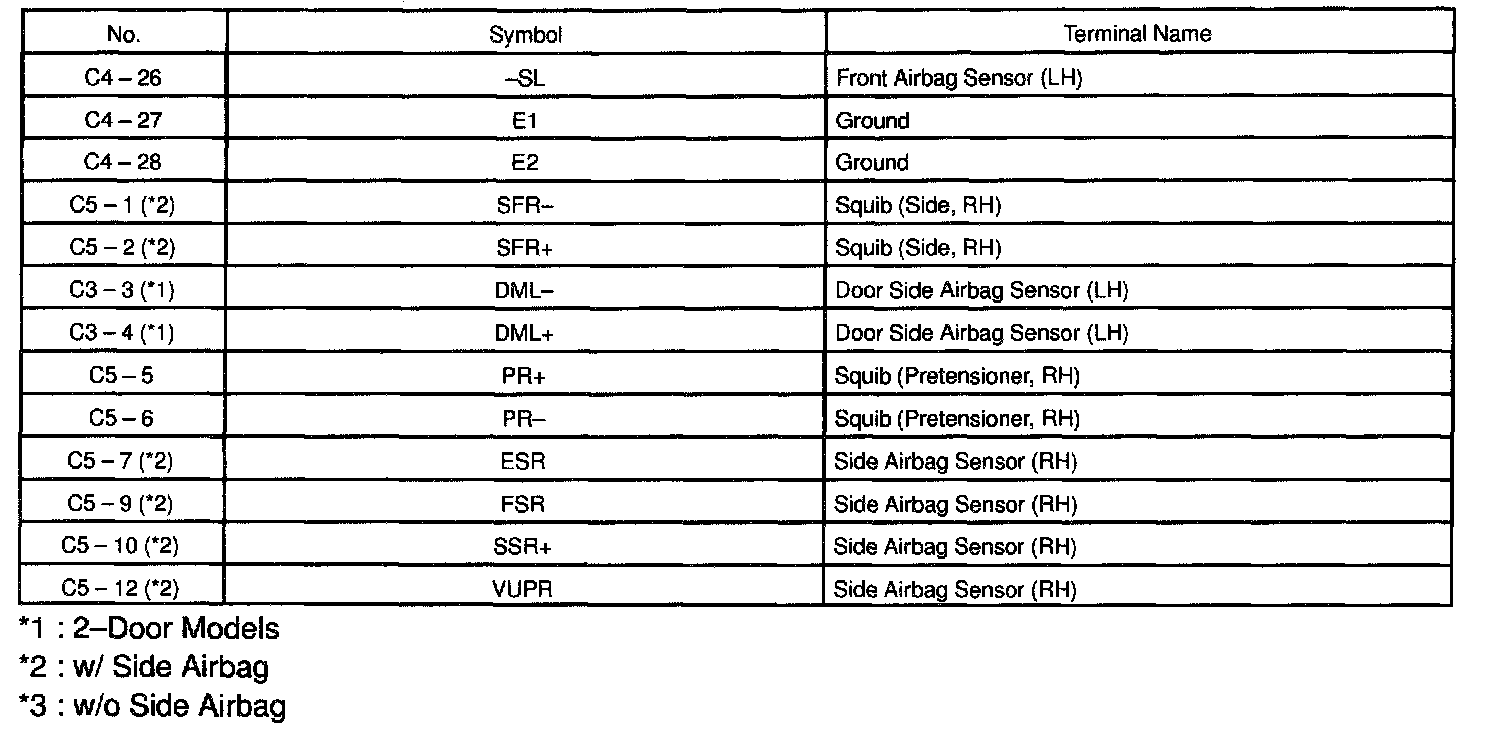

Terminals Of ECU - Pinouts (Part 2):
