Airbag Assembly Connectors

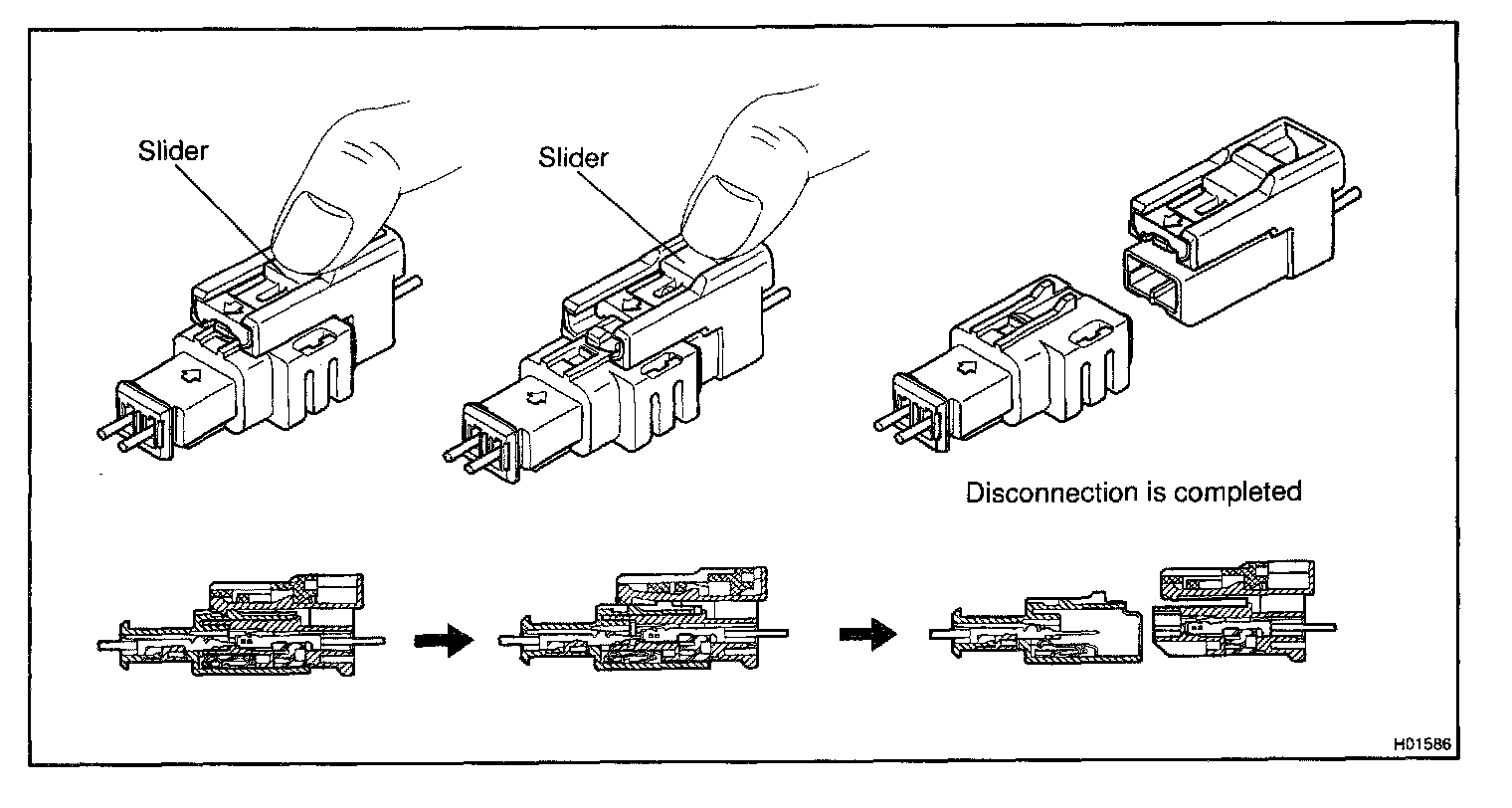

DISCONNECTION

a. Place a finger on the slider.
b. Slide the slider to release lock.




c. Disconnect the connector.

CONNECTION

a. Align a lock part of male connector and a slider of female connector in the same direction as shown in the illustration, fit in them without rubbing.
b. Make sure to insert until they are locked. After filling in pull them slightly to check that they are locked. (When locked, make sure that the outer returns to its original position and sound at the time of fitting in can be heard.)






HINT:
- As the slider slides, do not touch it.
- Be careful not to deform the release board. If the release board is deformed, replace it with a new one.
