ECM Power Source Circuit

CIRCUIT DESCRIPTION

When the ignition switch is turned ON, battery positive voltage is applied to the coil, closing the contacts of the EFI relay (Making: EFI) and supplying power to the terminal +B of the ECM.

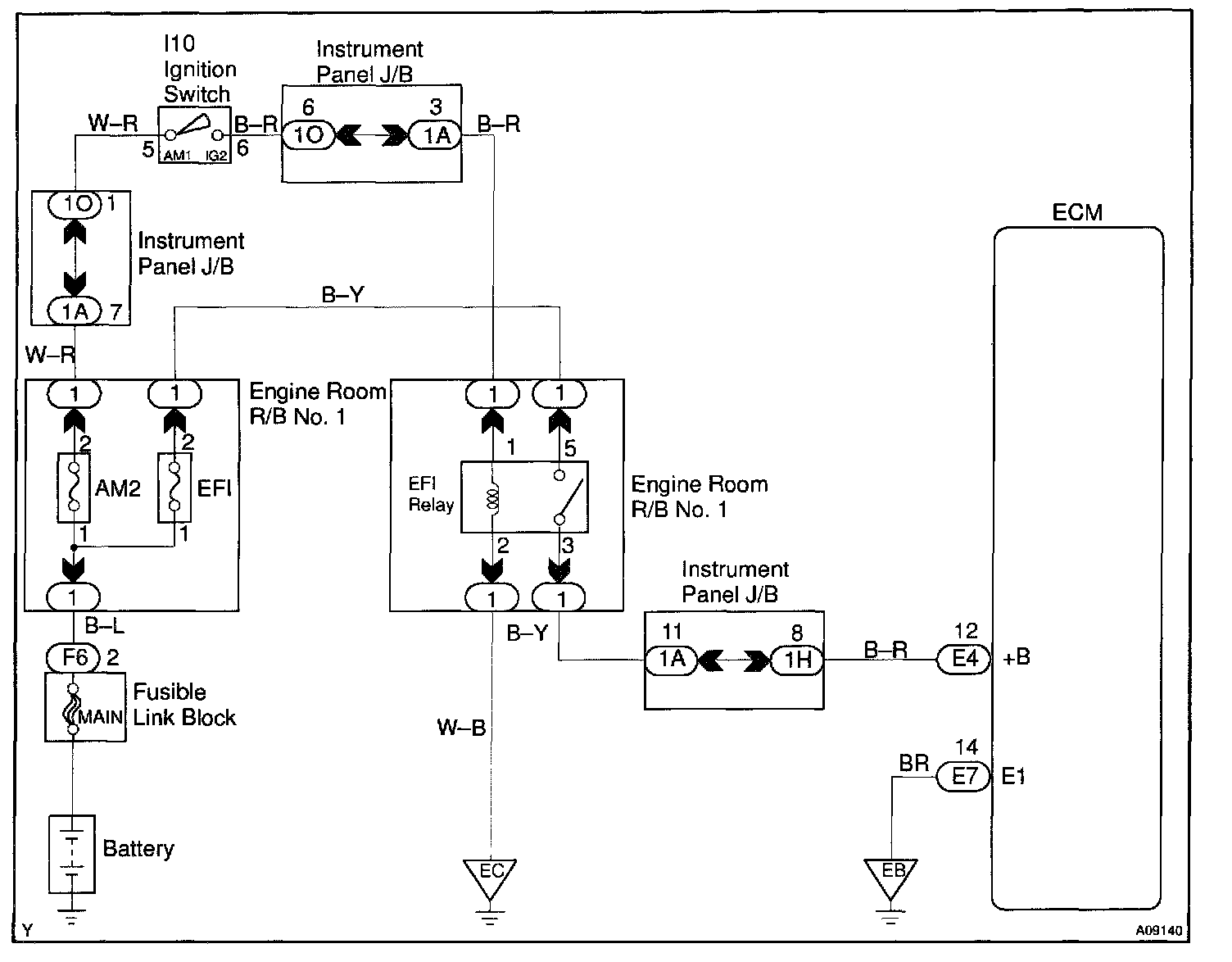

Wiring Diagram:

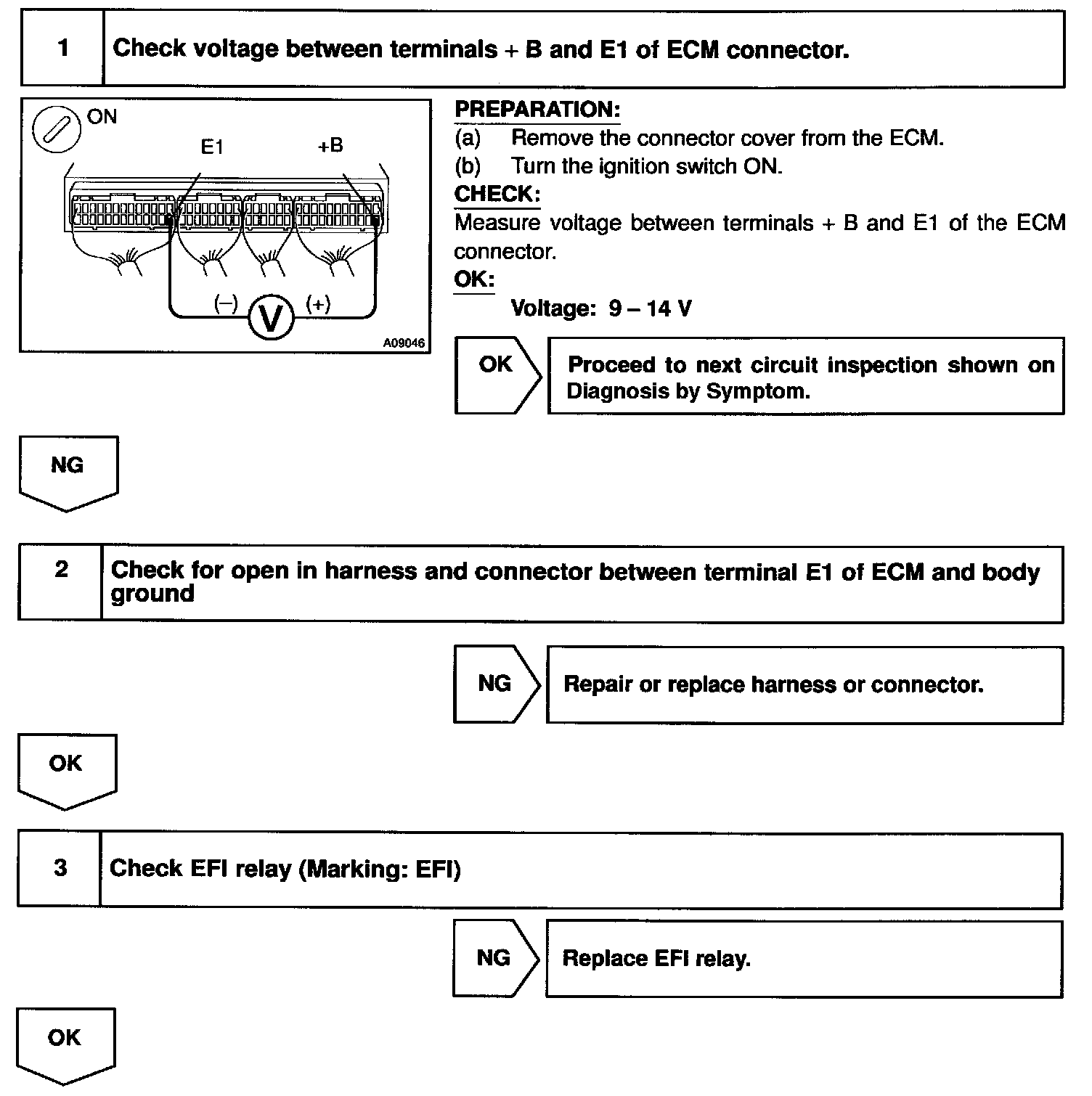

Step 1 - 3:

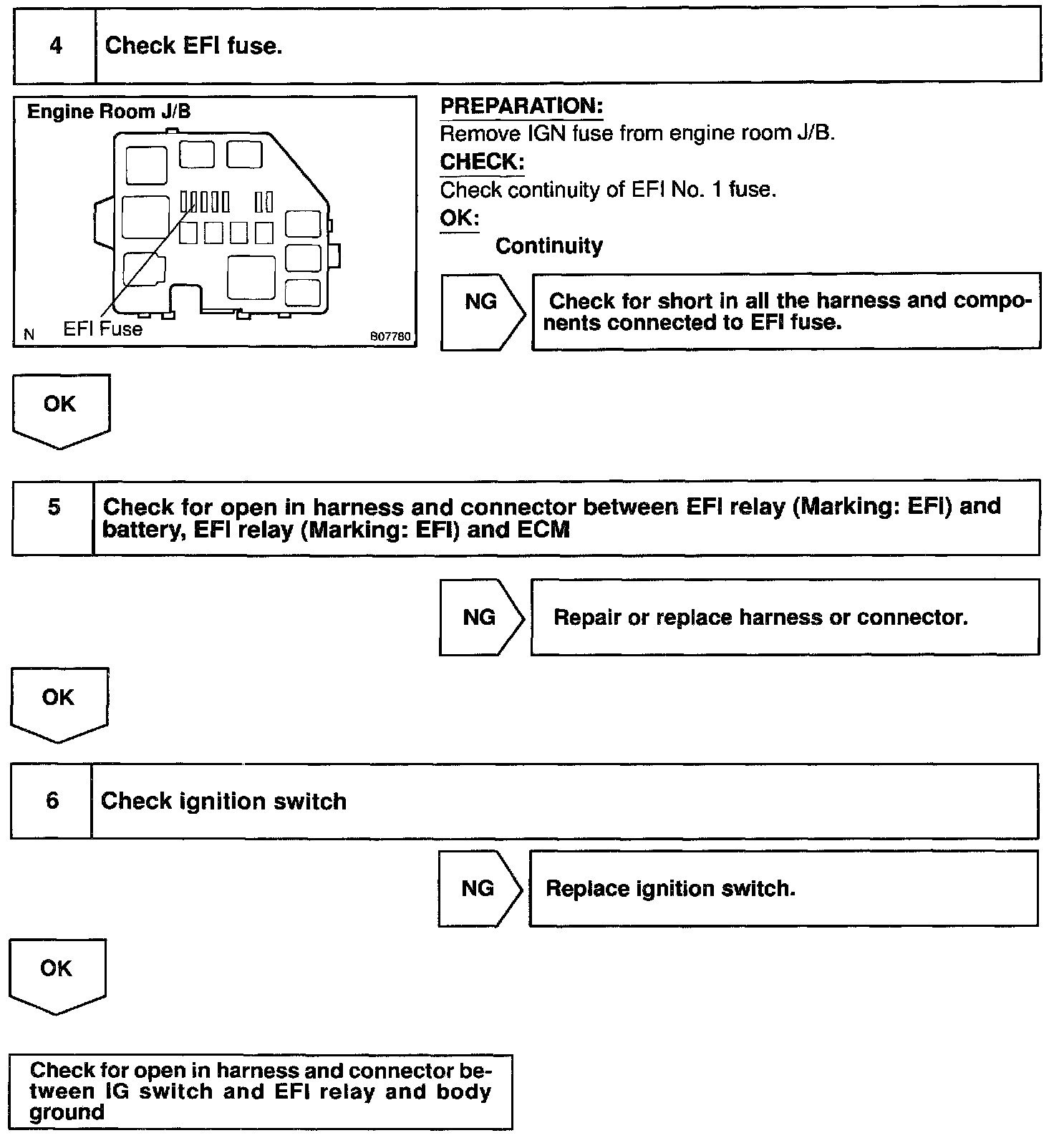

Step 4 - 6:

INSPECTION PROCEDURE
