Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:

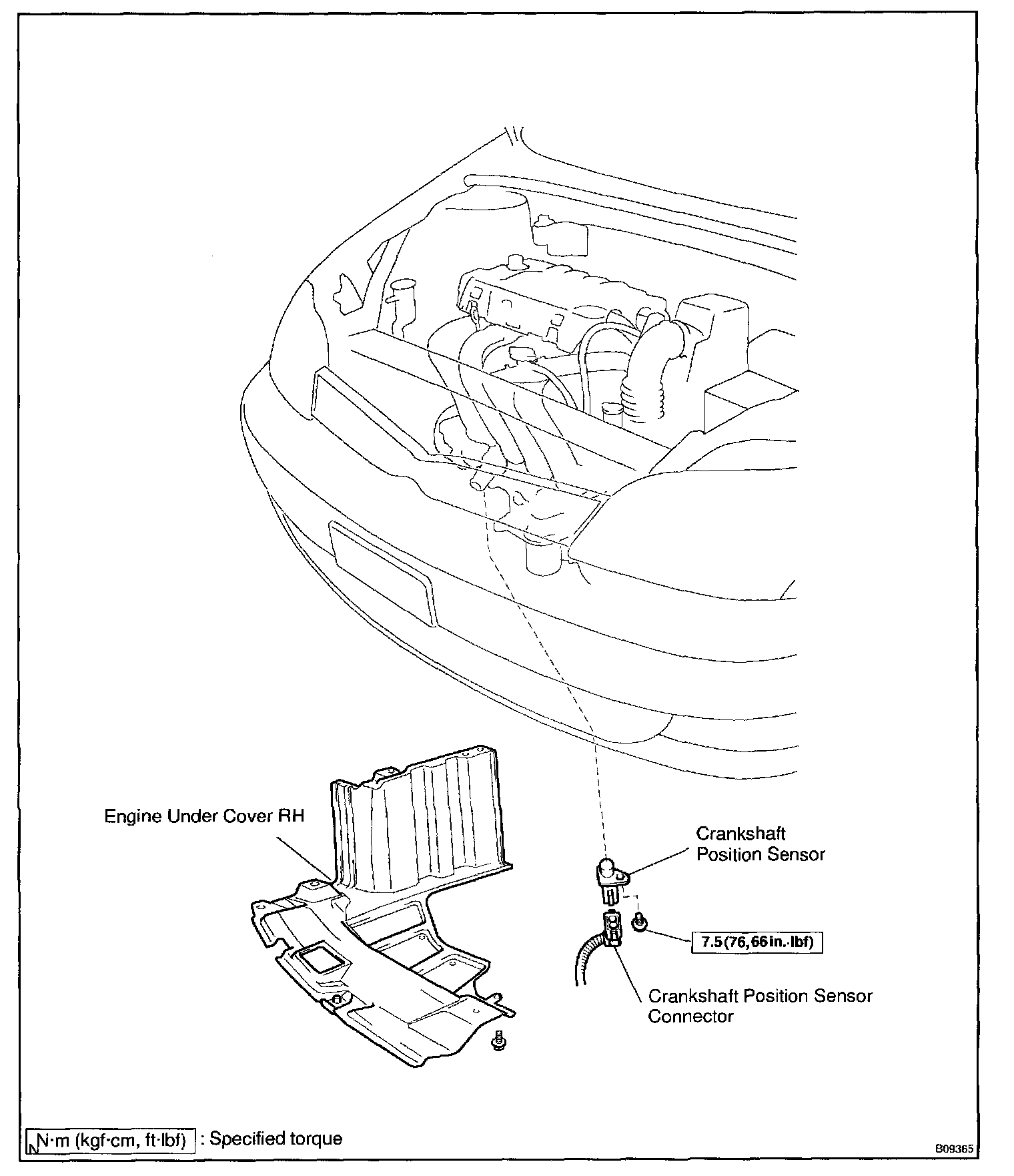

REMOVAL

1. REMOVE ENGINE UNDER COVER RH




2. REMOVE CRANKSHAFT POSITION SENSOR
a. While sliding the connector lock, remove the connector.
b. Remove the bolt and crankshaft position sensor.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
