Component Locations

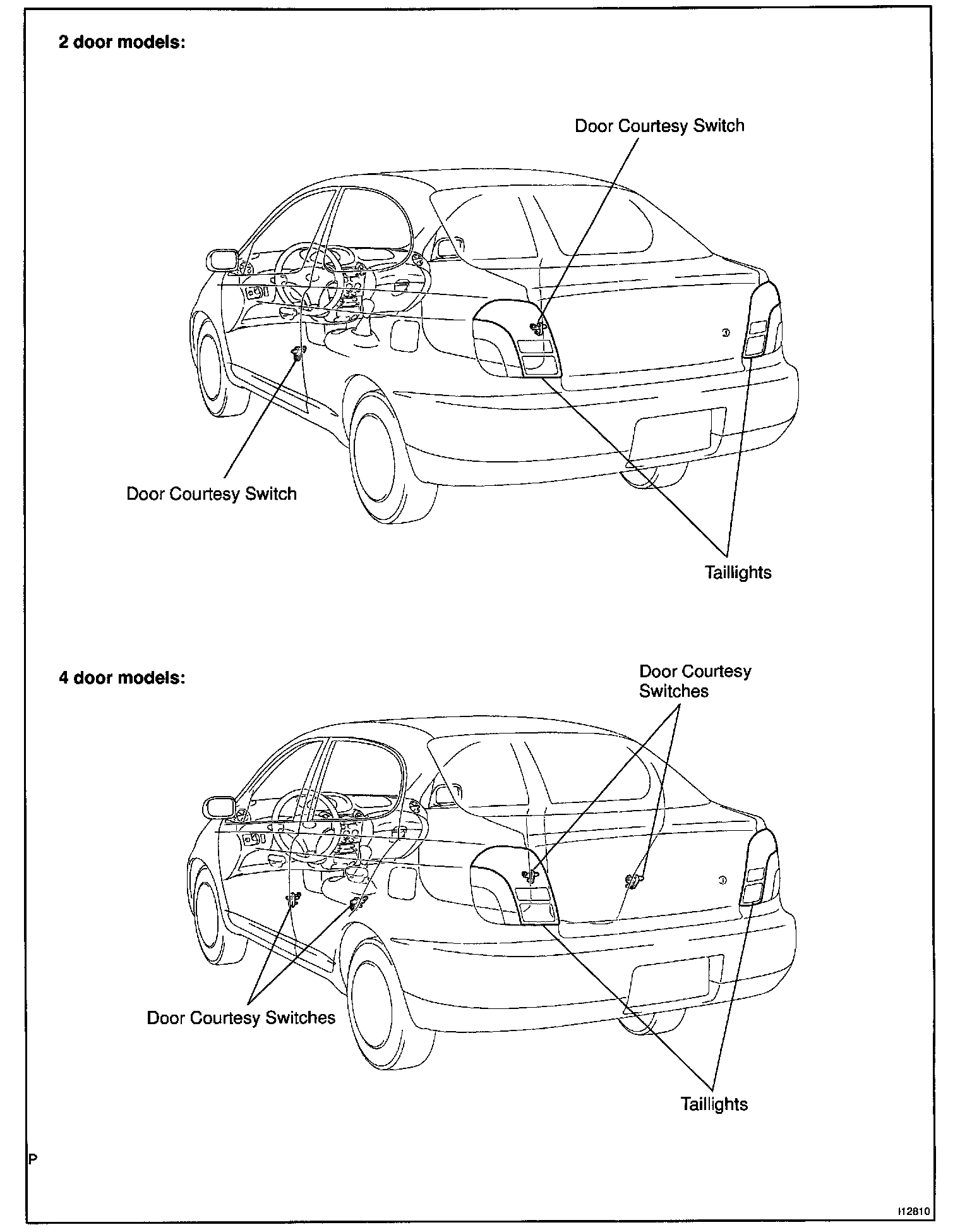

Headlight And Taillight System (Part 1):

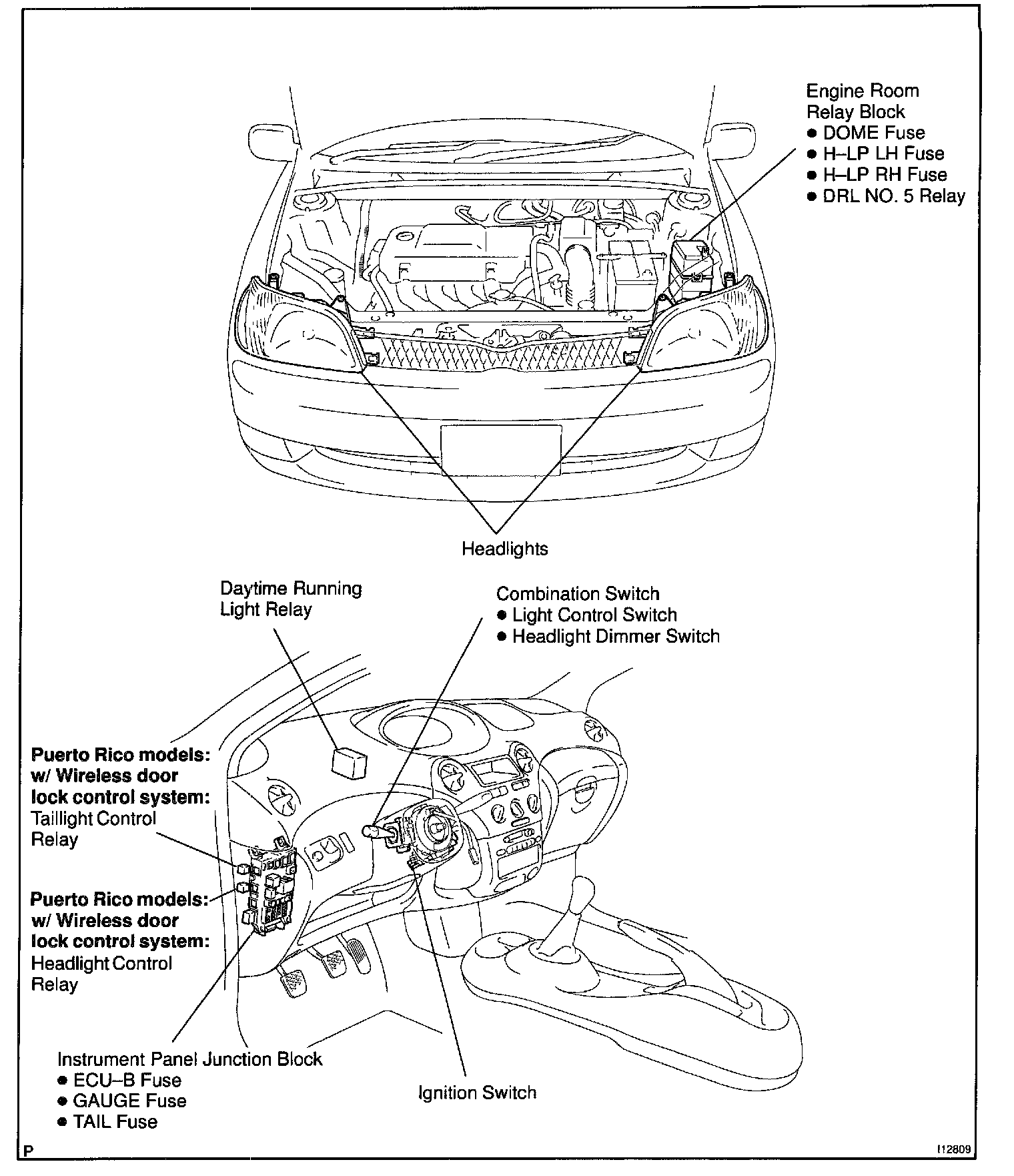

Headlight And Taillight System (Part 2):

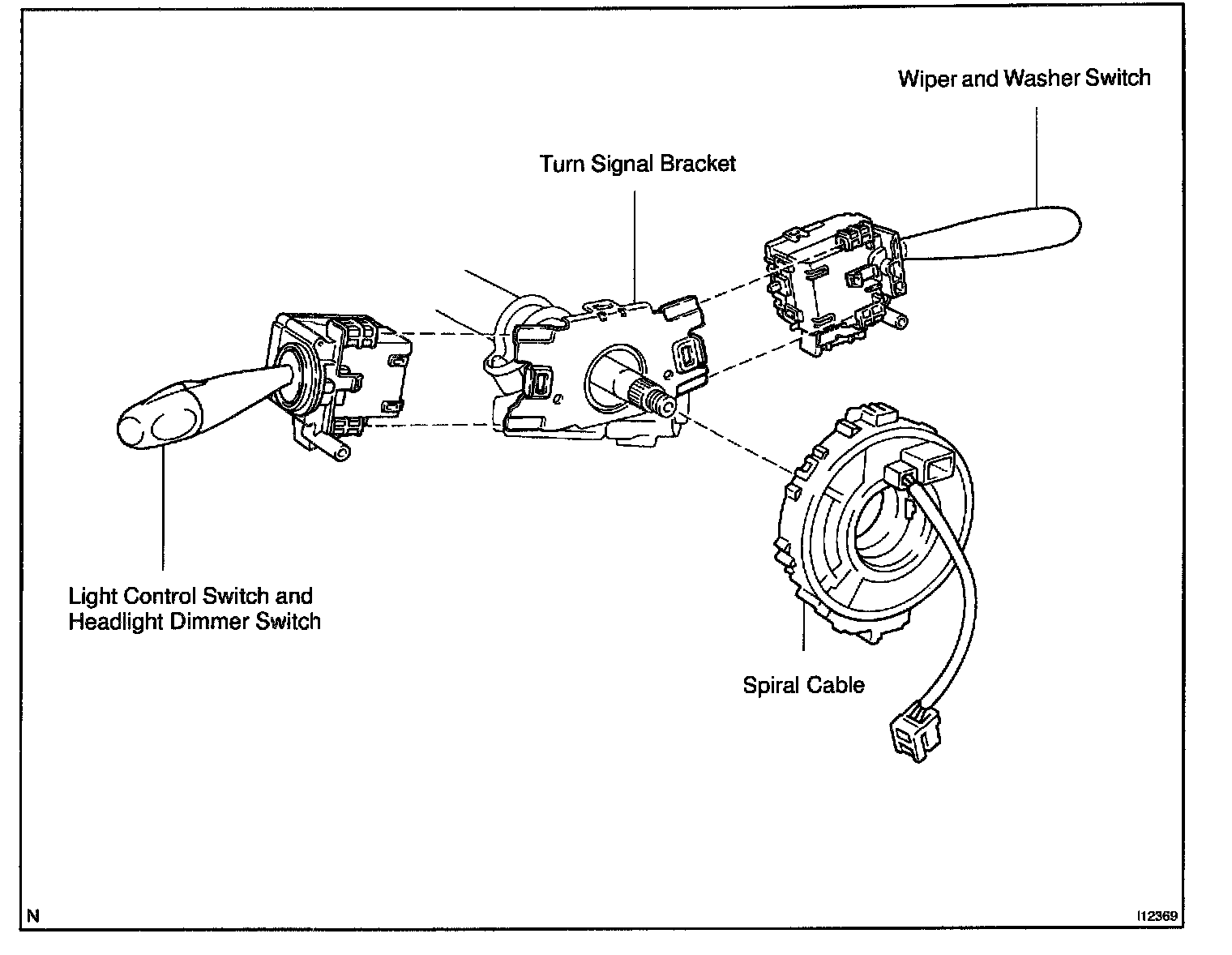

Headlight And Taillight System:
