Symptom Related Diagnostic Procedures

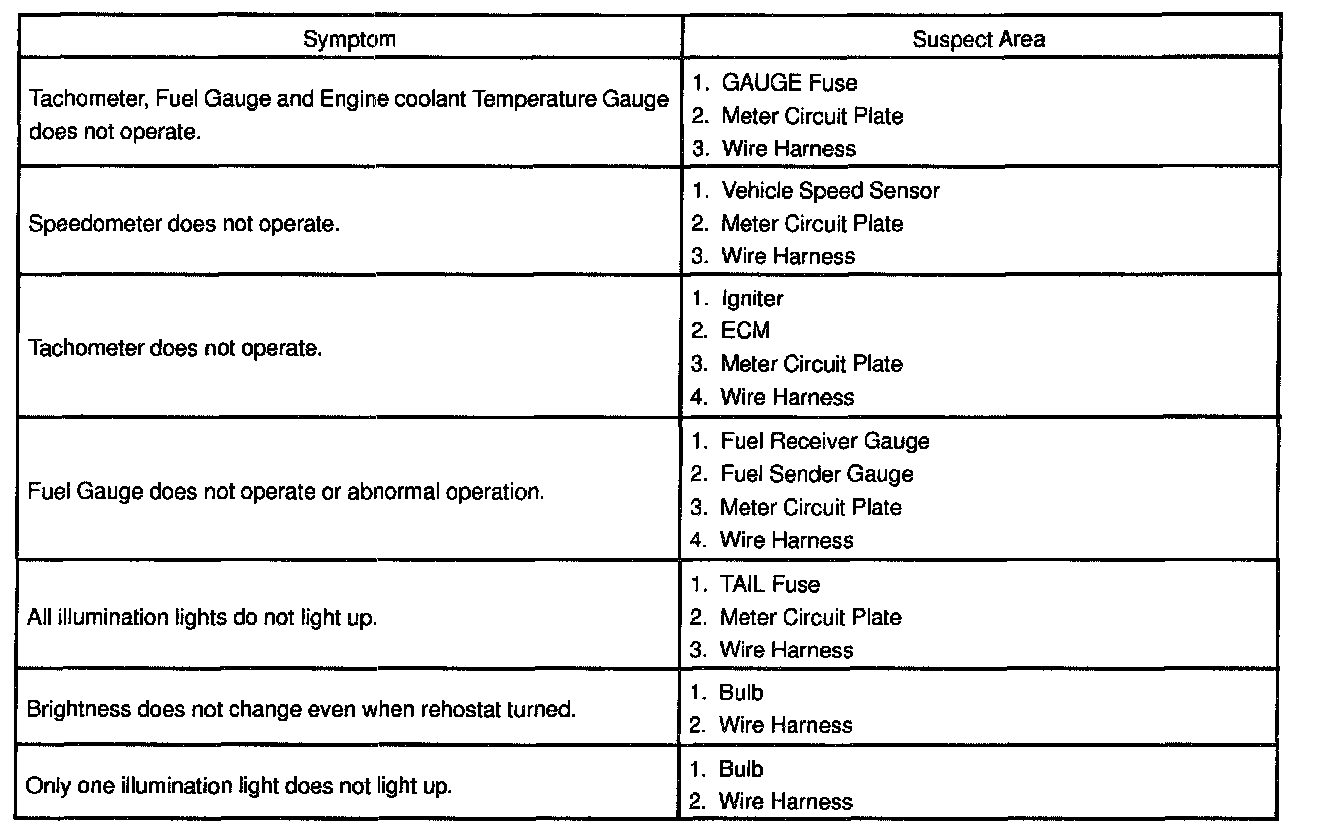

Problem Symptoms Table - Meter Gauges And Illumination - Combination Meter:

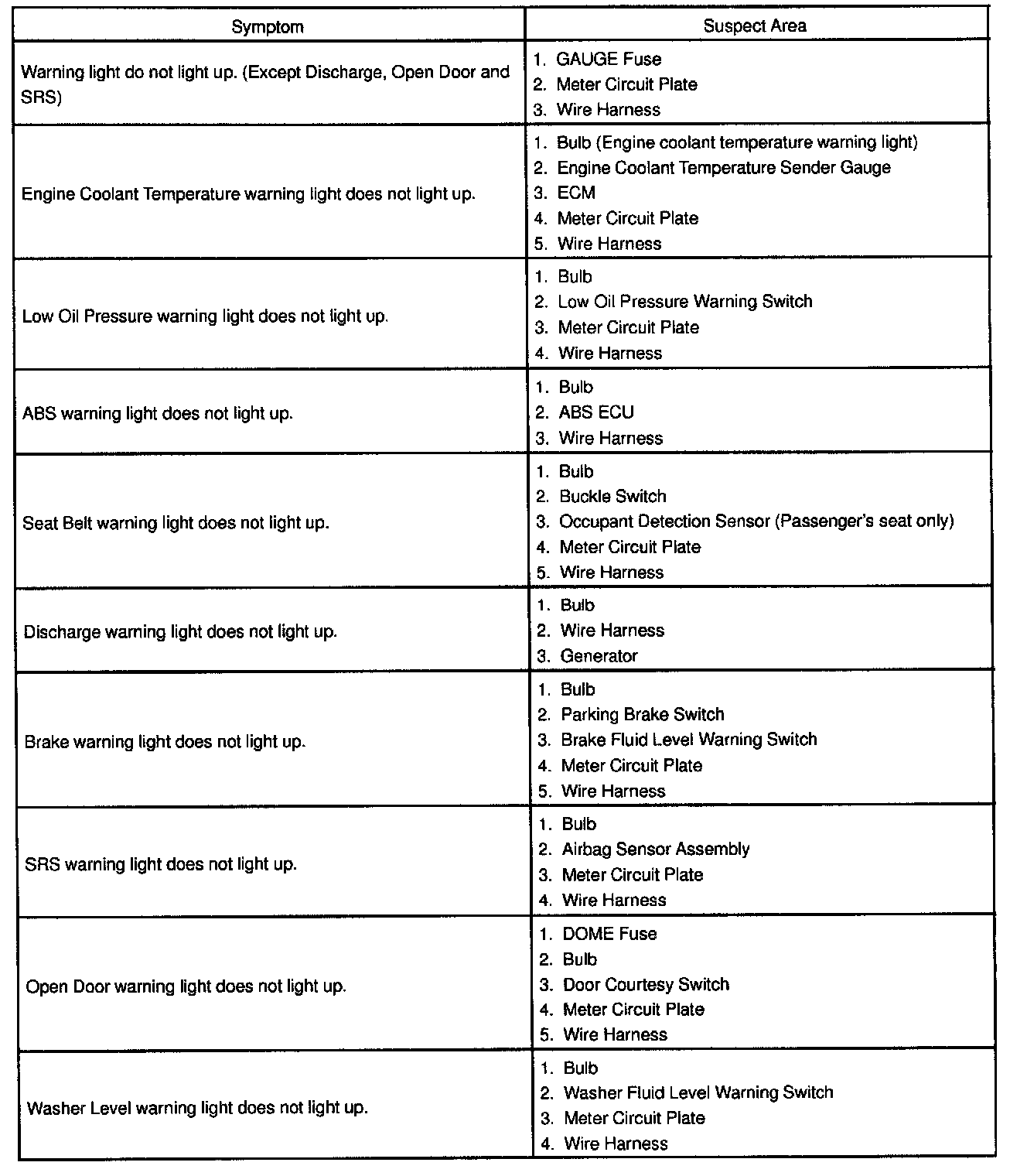

Problem Symptoms Table - Warning Lights - Combination Meter:



Problem Symptoms Table - Indicator Lights - Combination Meter:
