Home >> Toyota >> 2002 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Exterior Moulding / Trim >> Lower Side Moulding / Trim

Lower Side Moulding / Trim

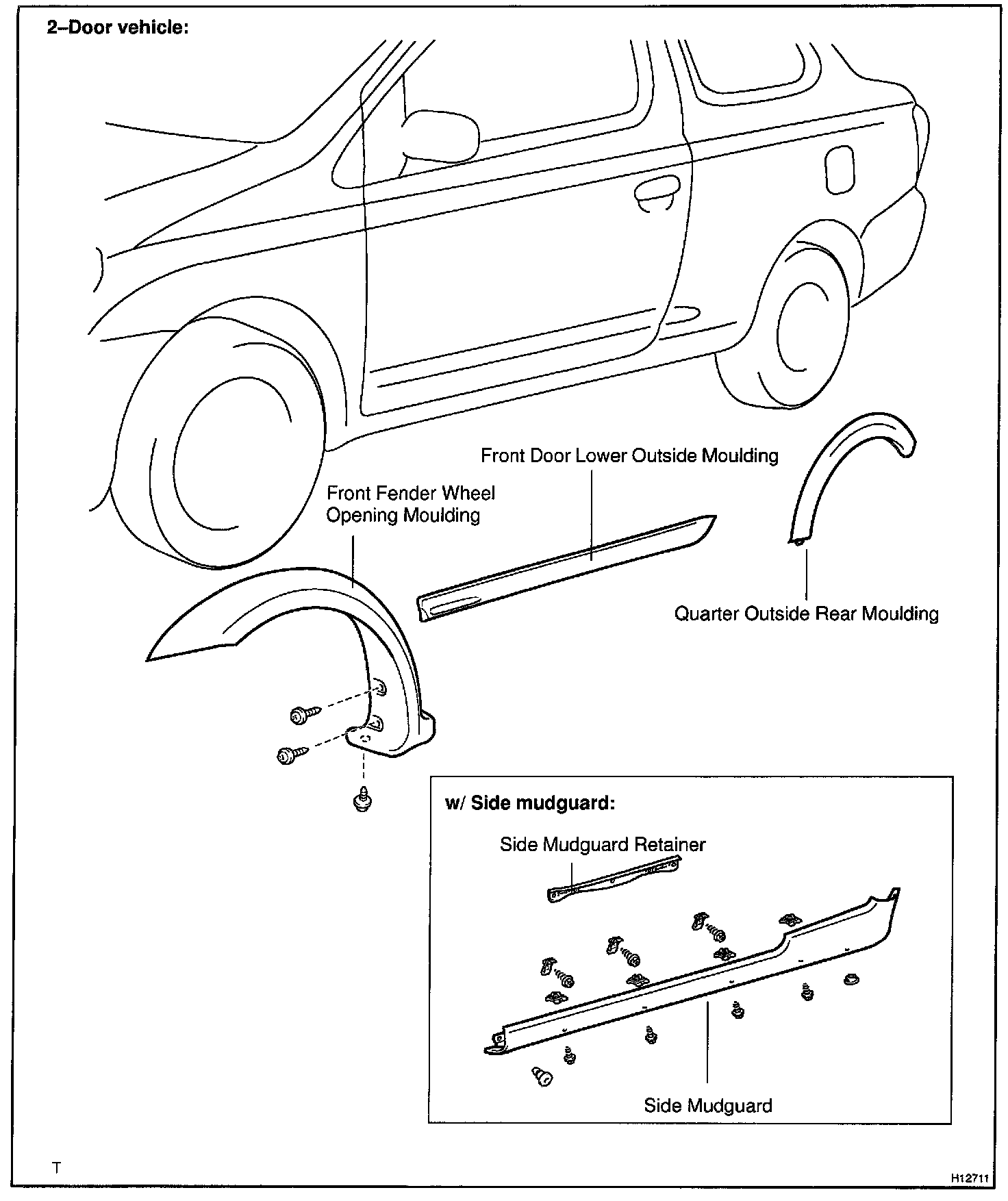

Body Outside Moulding - 2-Door:

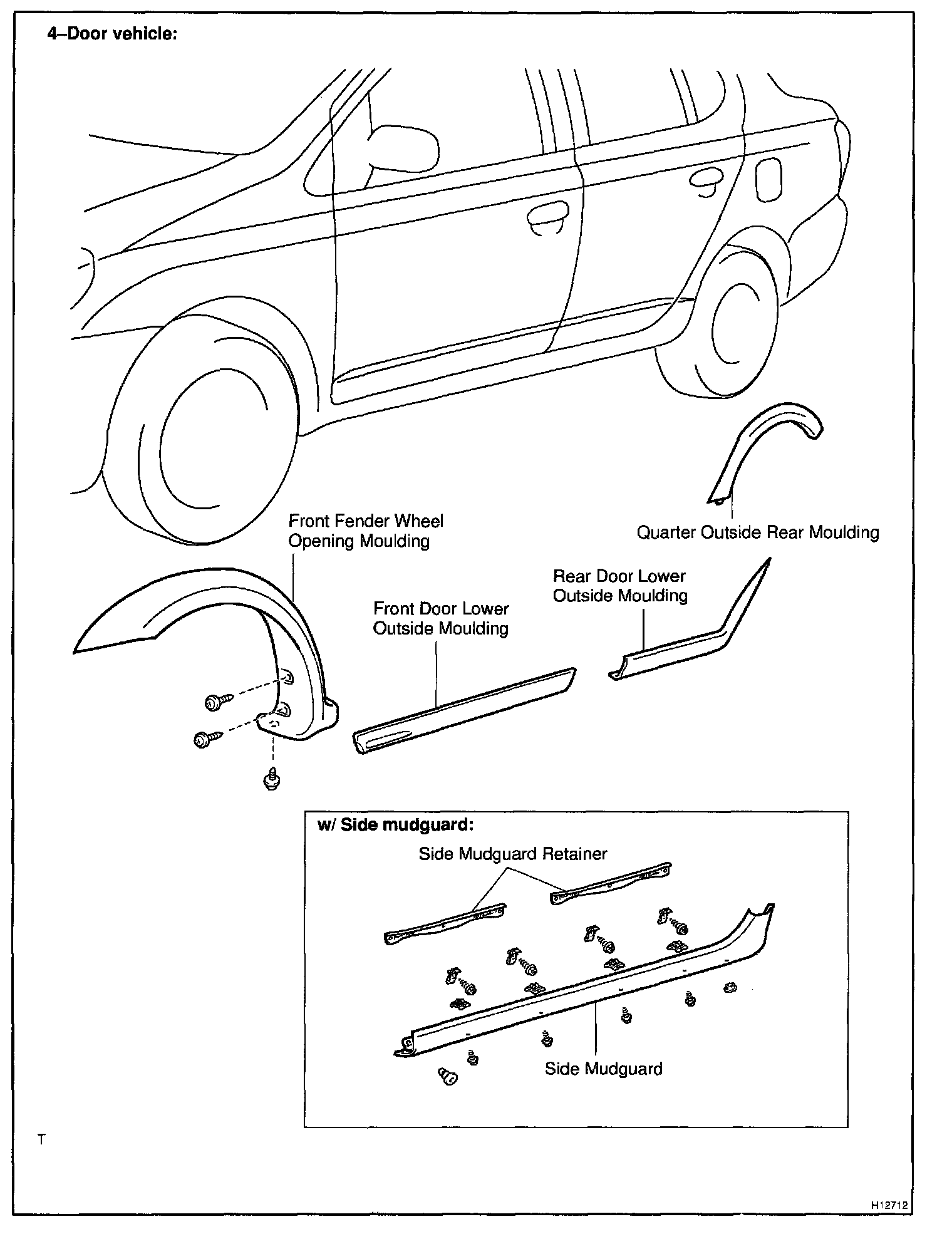

Body Outside Moulding - 4-Door:
