Oil Pump, Engine

OIL PUMP REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

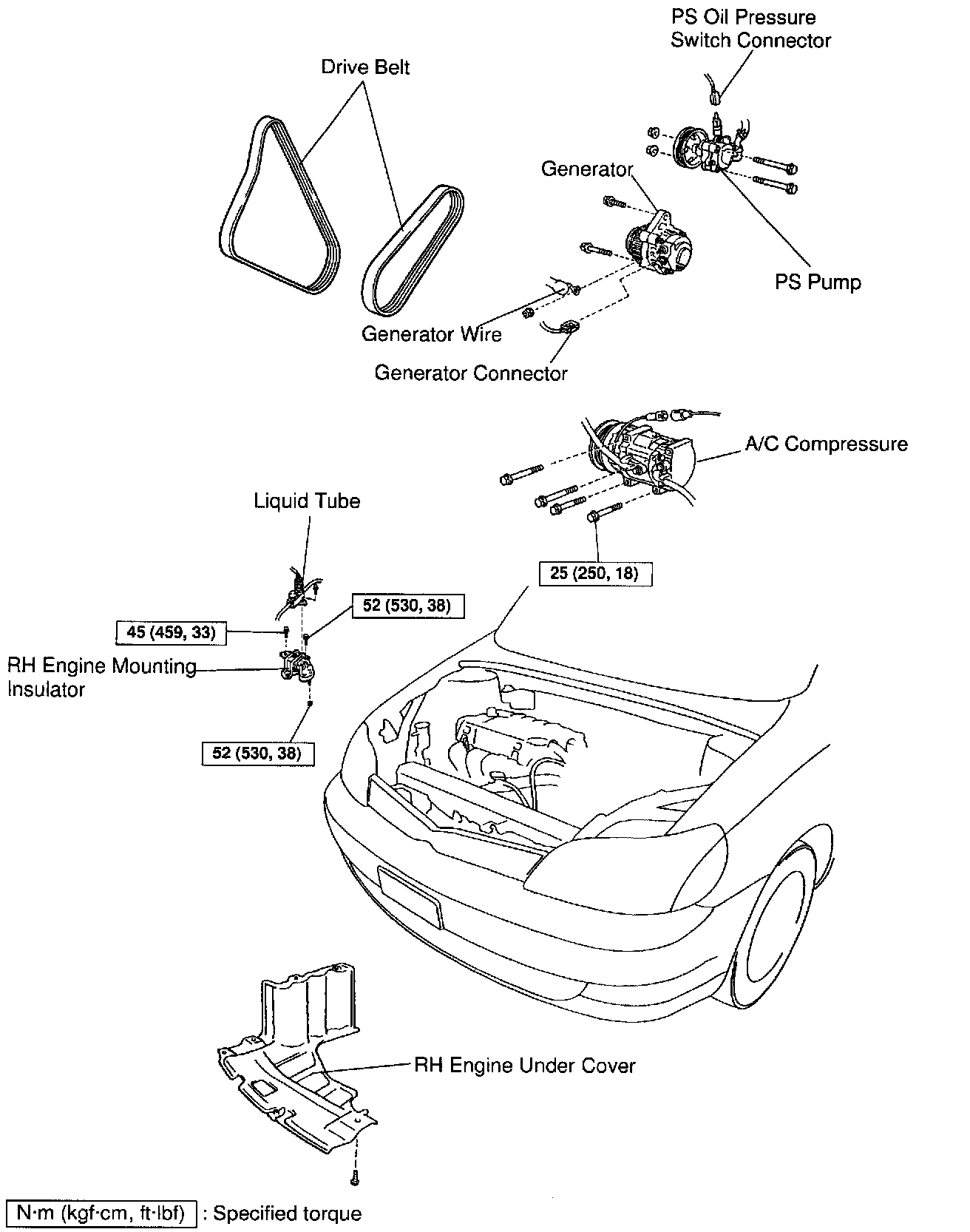

Part 1 of 3

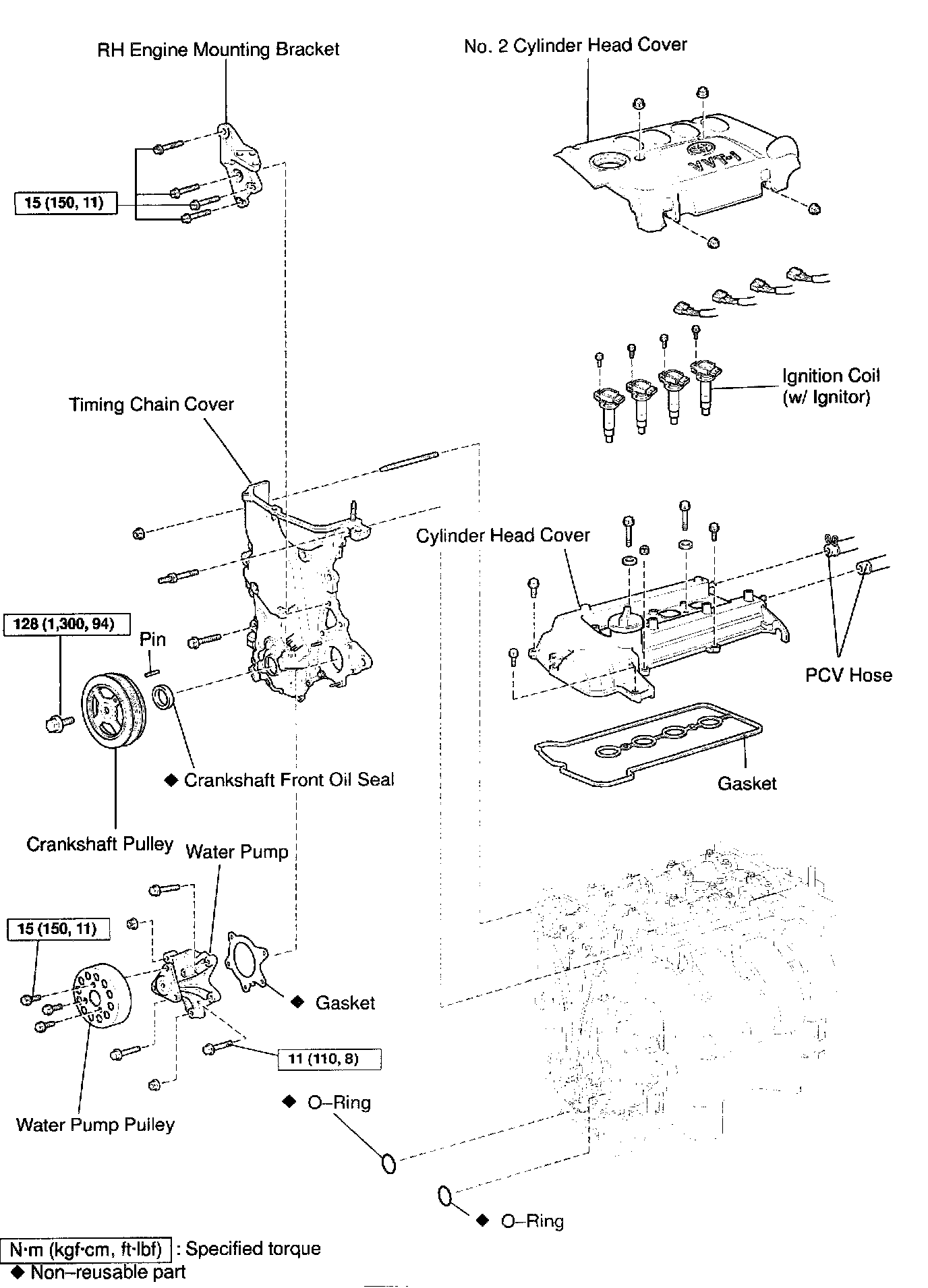

Part 2 of 3

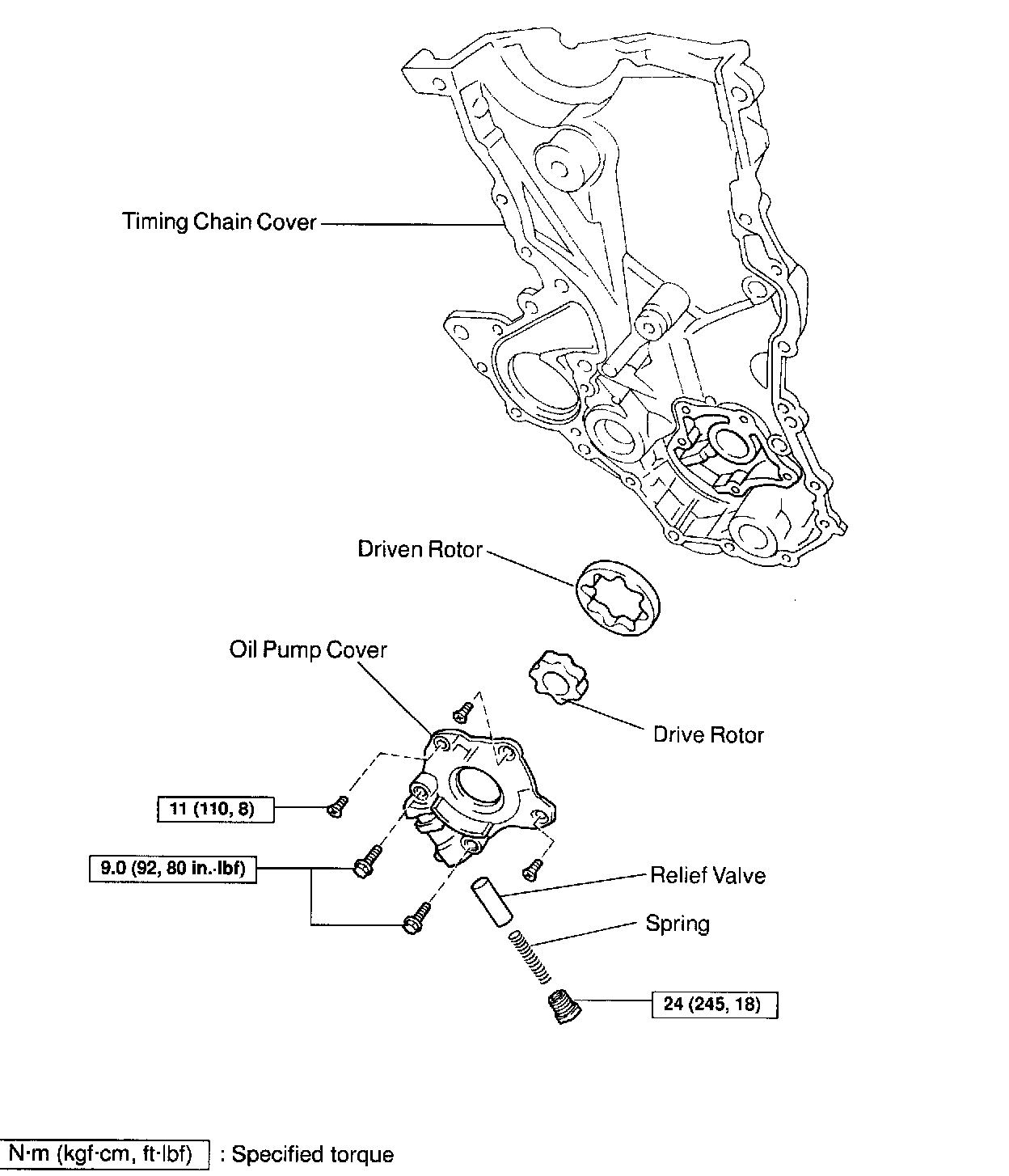

Part 3 of 3
