Control Assembly, HVAC

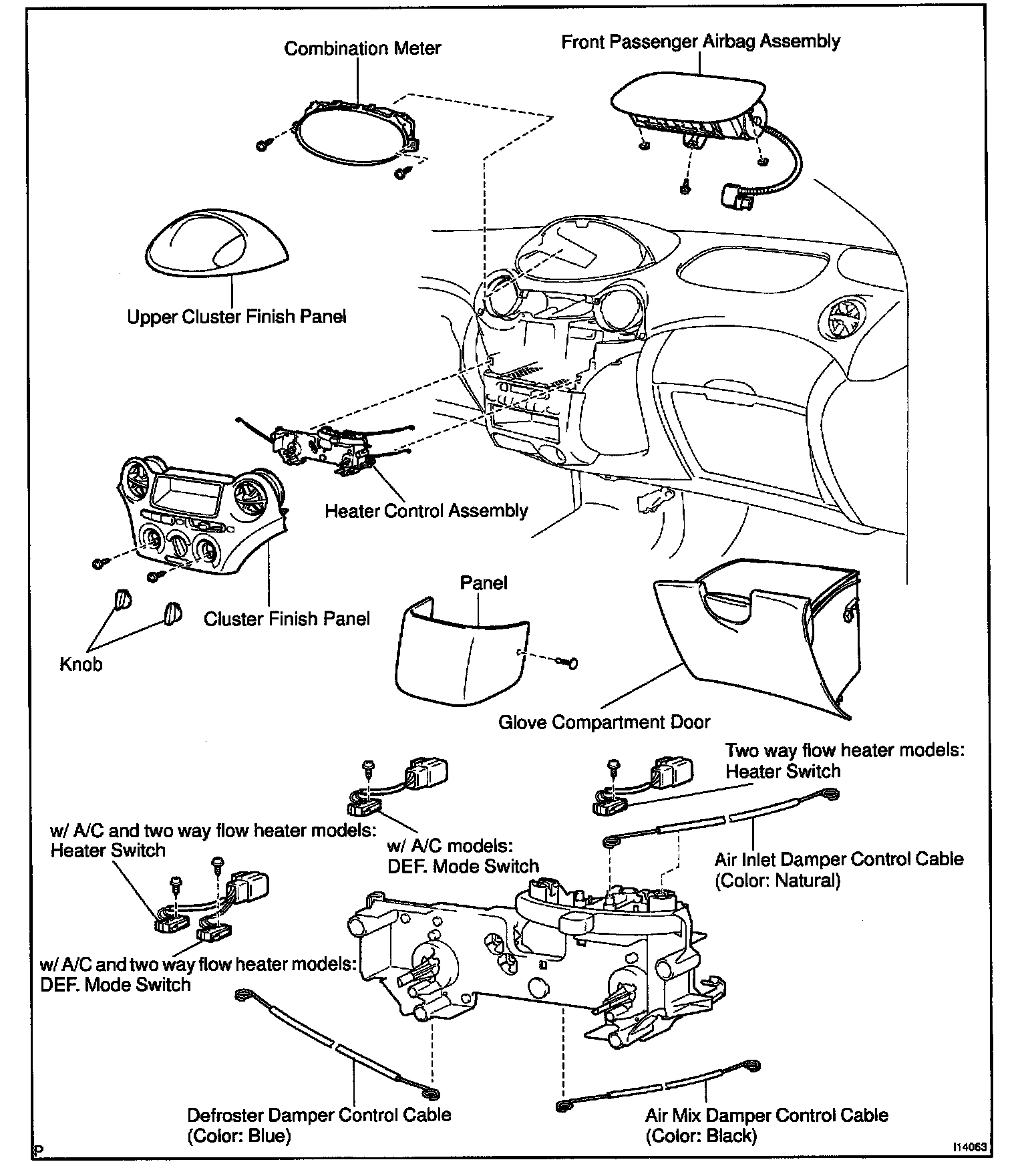

Heater Control Assembly:

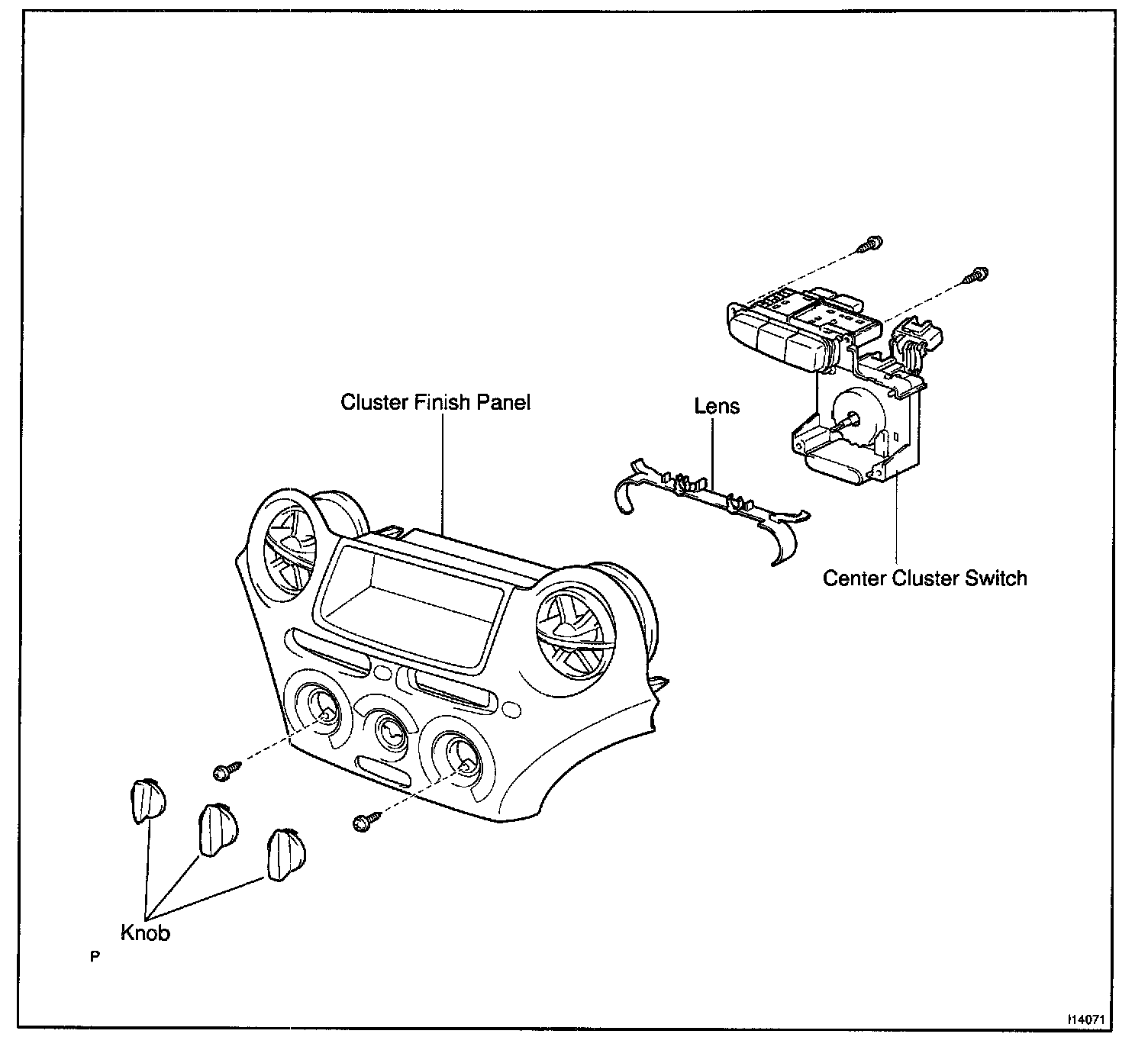

Heater Control Assembly (Center Cluster Integration):
