Instrument Panel / Center Console
Instrument Panel / Center Console

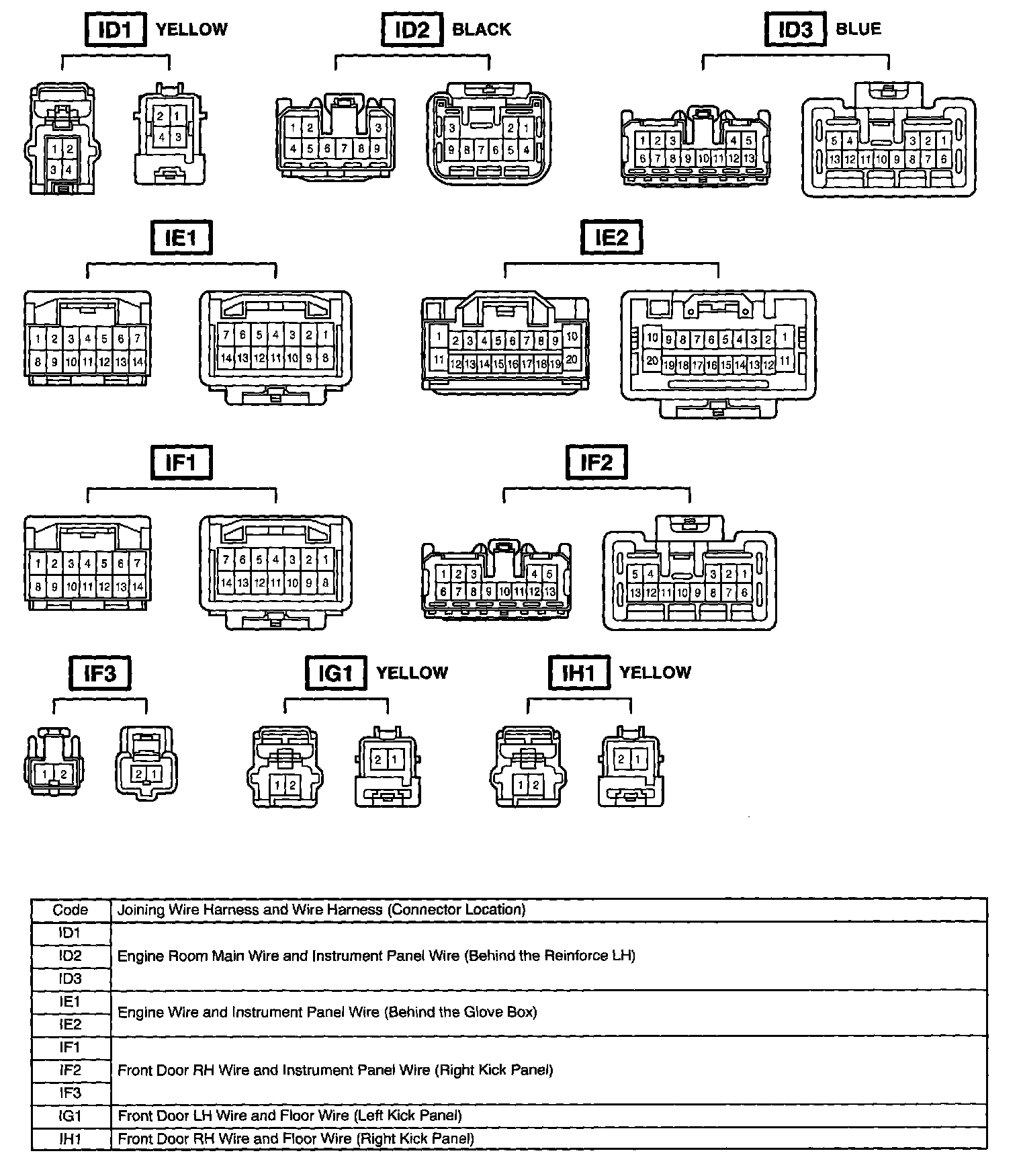

Under Hood Wire Harness To Wire Harness Connectors (ID1 - IH1):

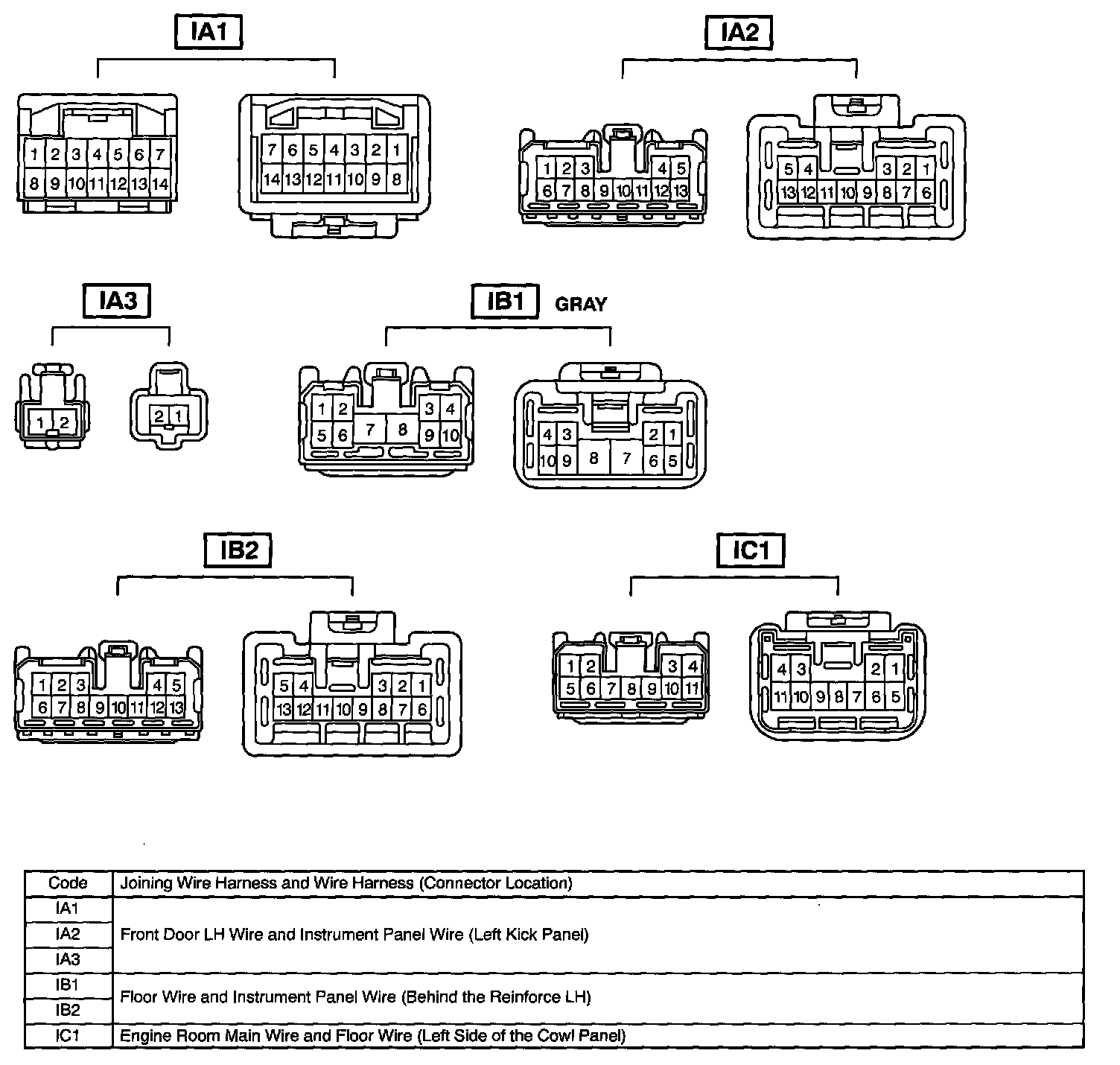

Under Hood Wire Harness To Wire Harness Connectors (IA1 - IC1):
