LEMON Manuals
: Even more car manuals for everyone
Home
>>
Toyota
>>
2002
>>
Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Code Lists
Connector Code Lists

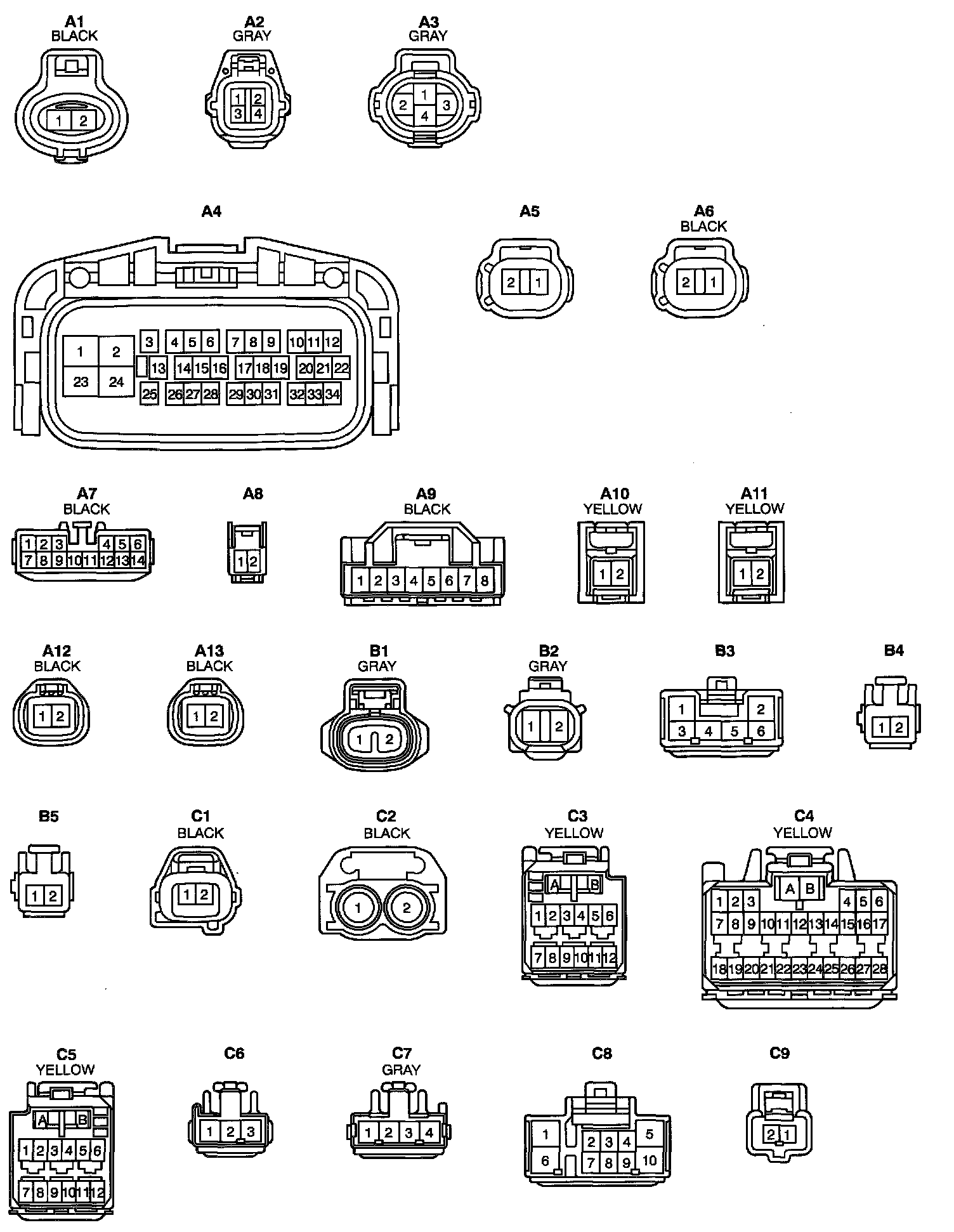

Connector Views (A1 - C9):

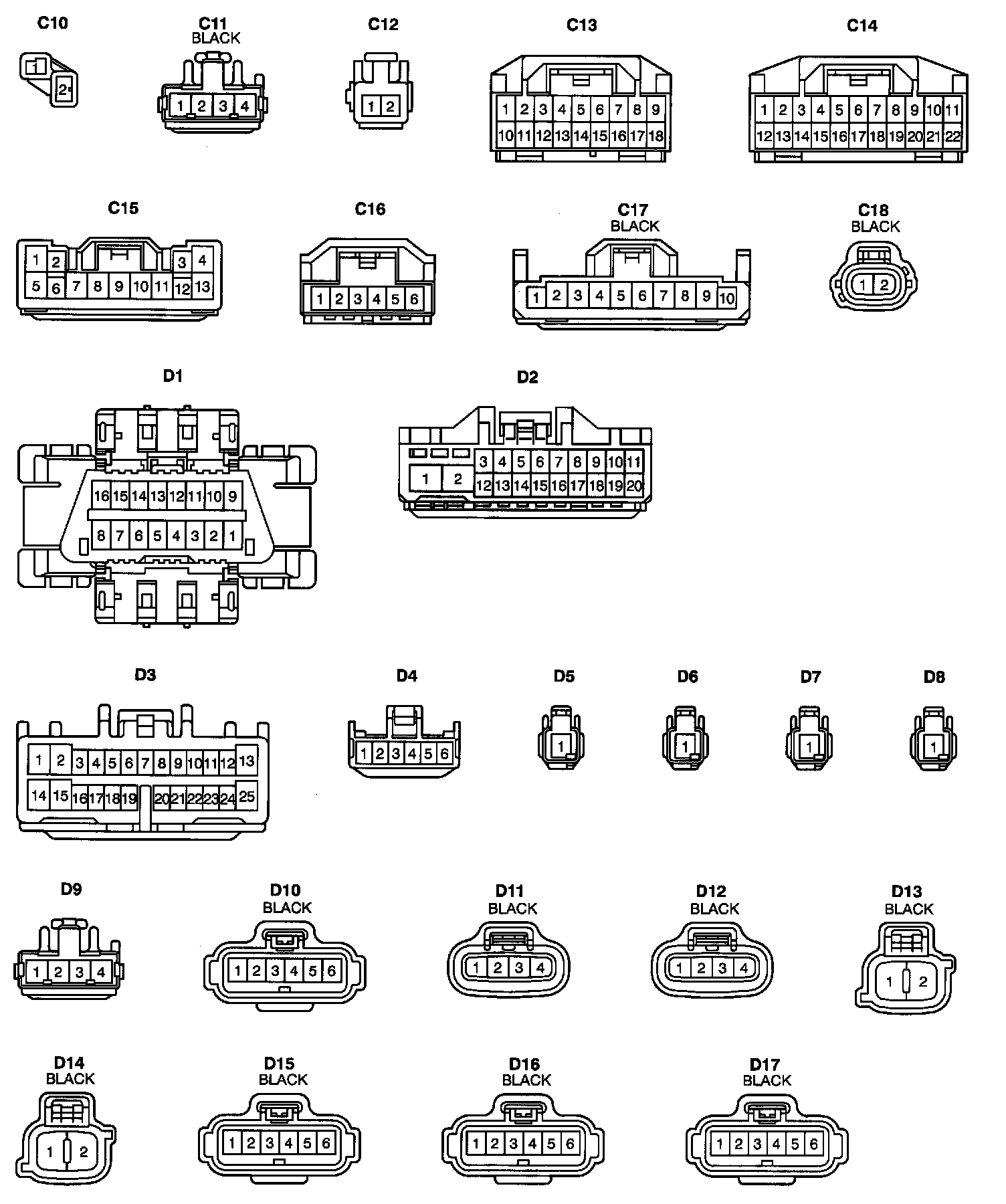

Connector Views (C10 - D17):

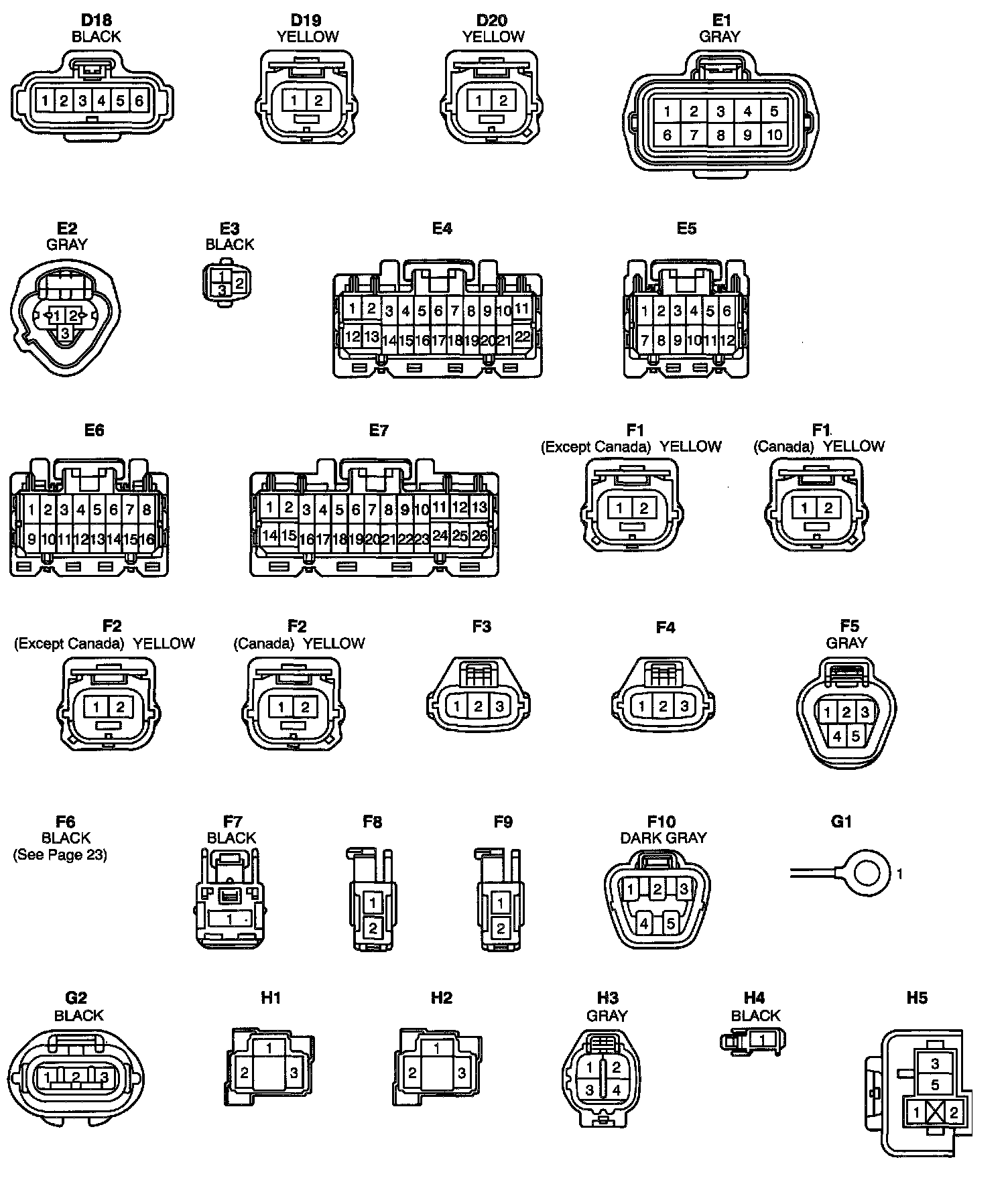

Connector Views (D18 - H5):

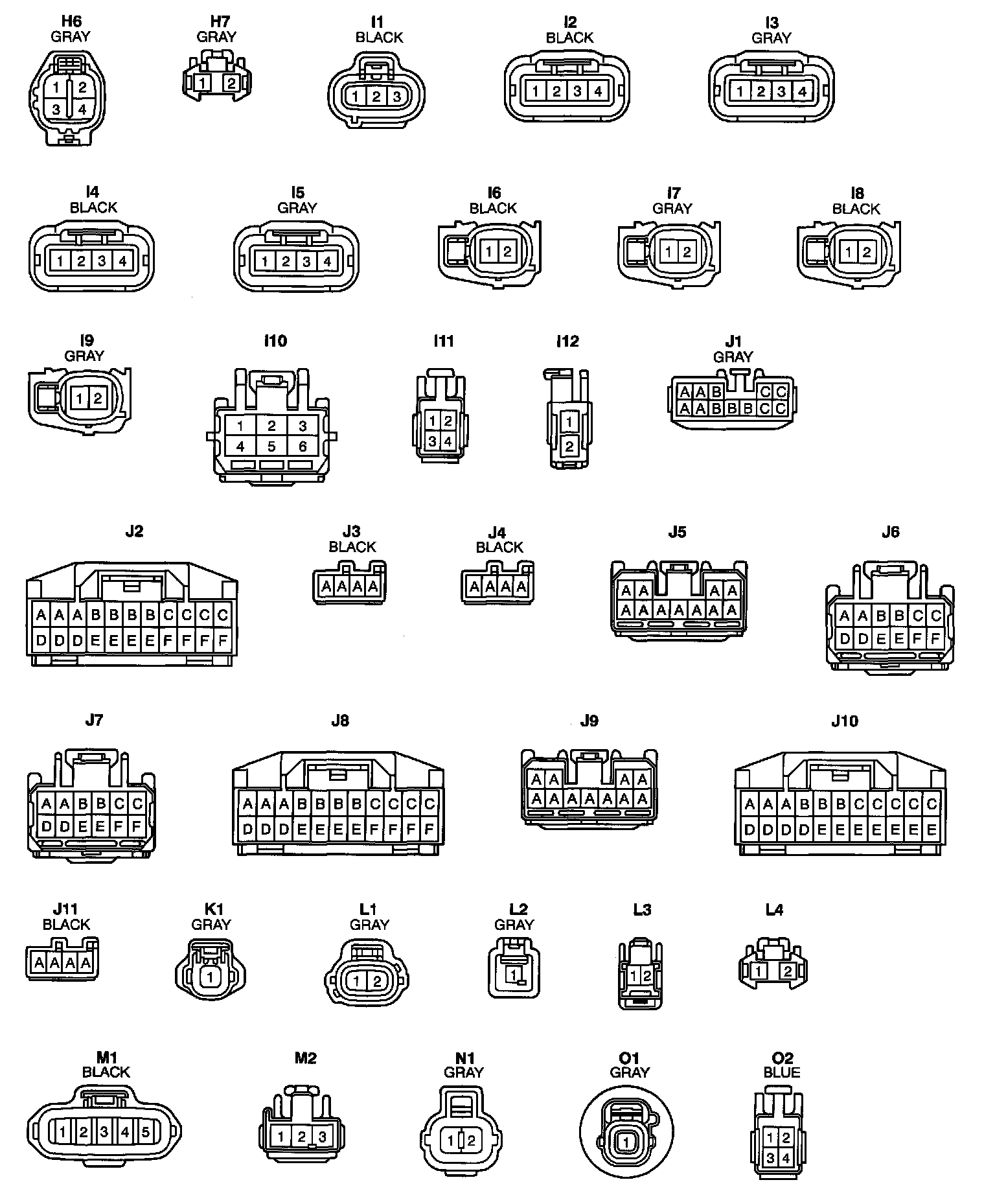

Connector Views (H6 - O2):

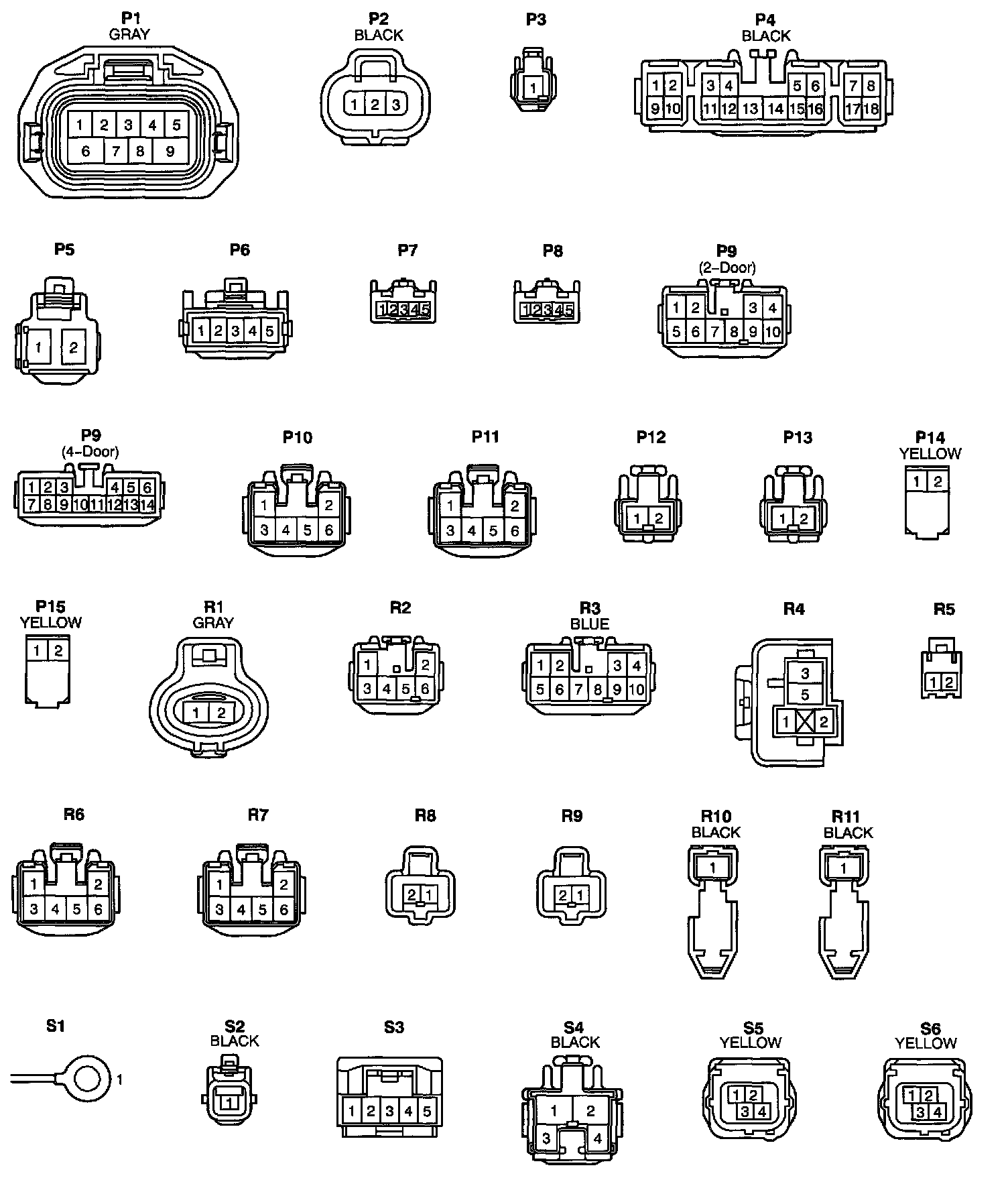

Connector Views (P1 - S6):

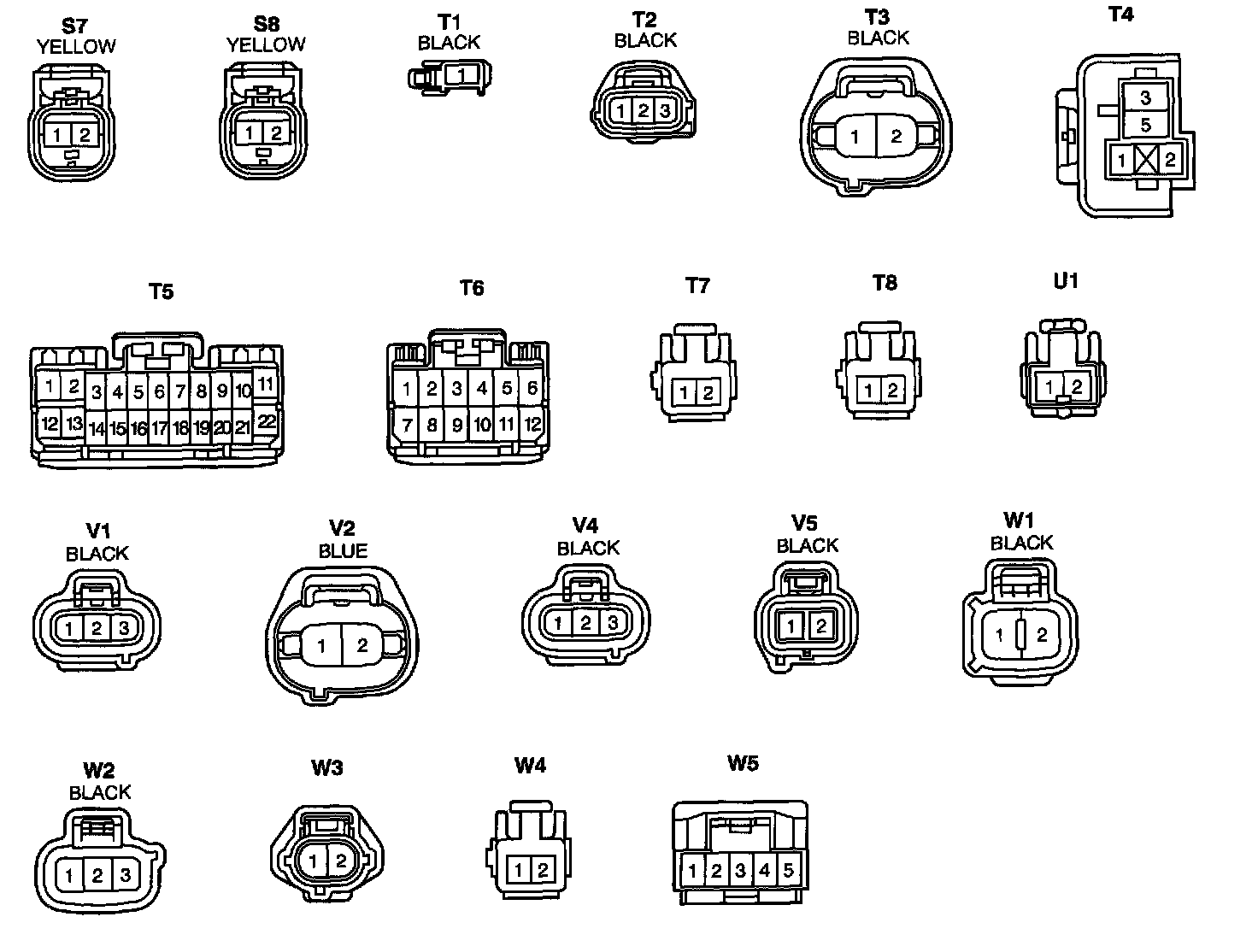

Connector Views (S7 - W5):
