Brakes and Traction Control: Testing and Inspection

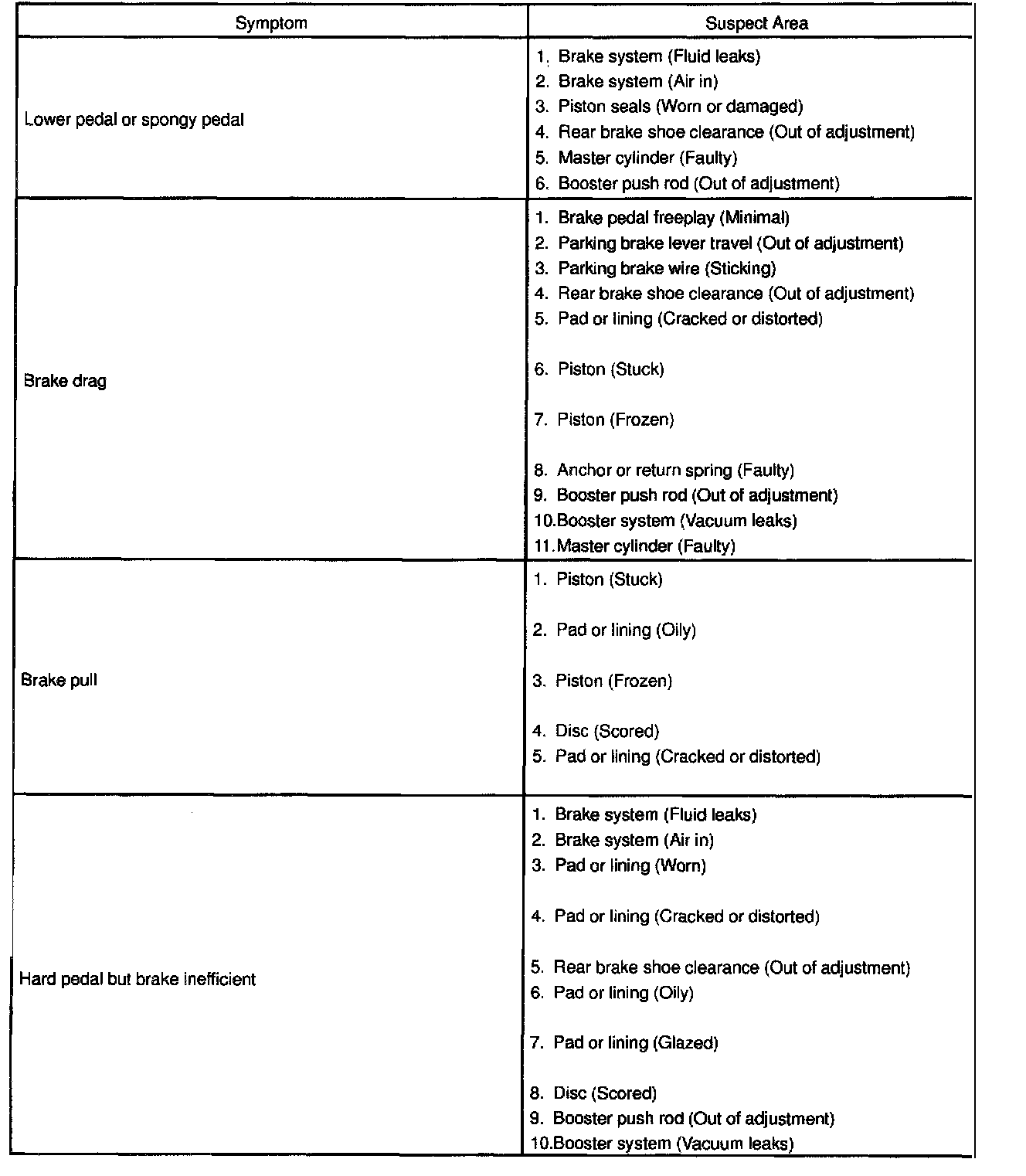

PROBLEM SYMPTOMS TABLE





Part 1 of 2





Part 2 of 2

Use the table shown to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
