Body and Frame: Service and Repair

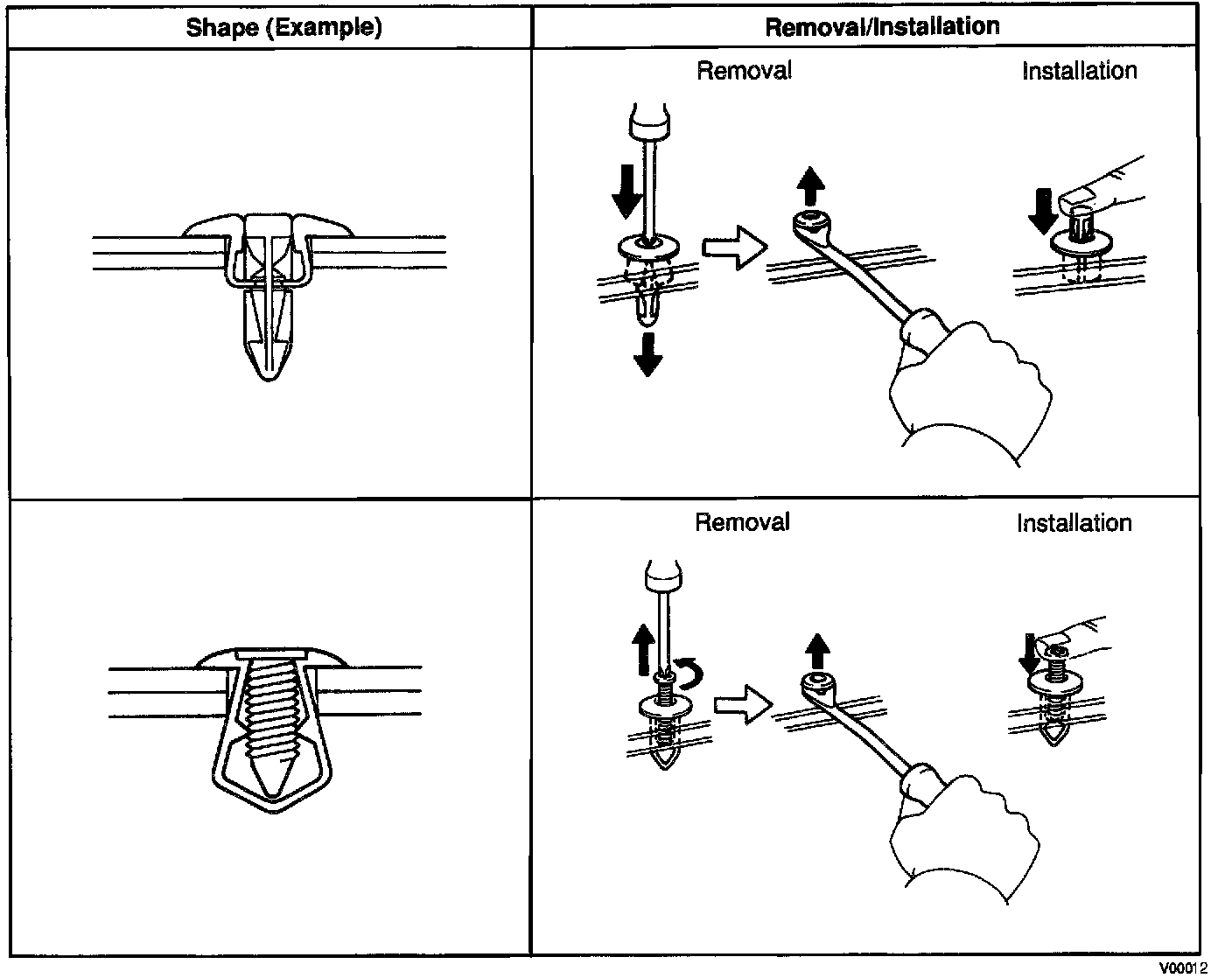

CLIP REPLACEMENTClip (Part 1):

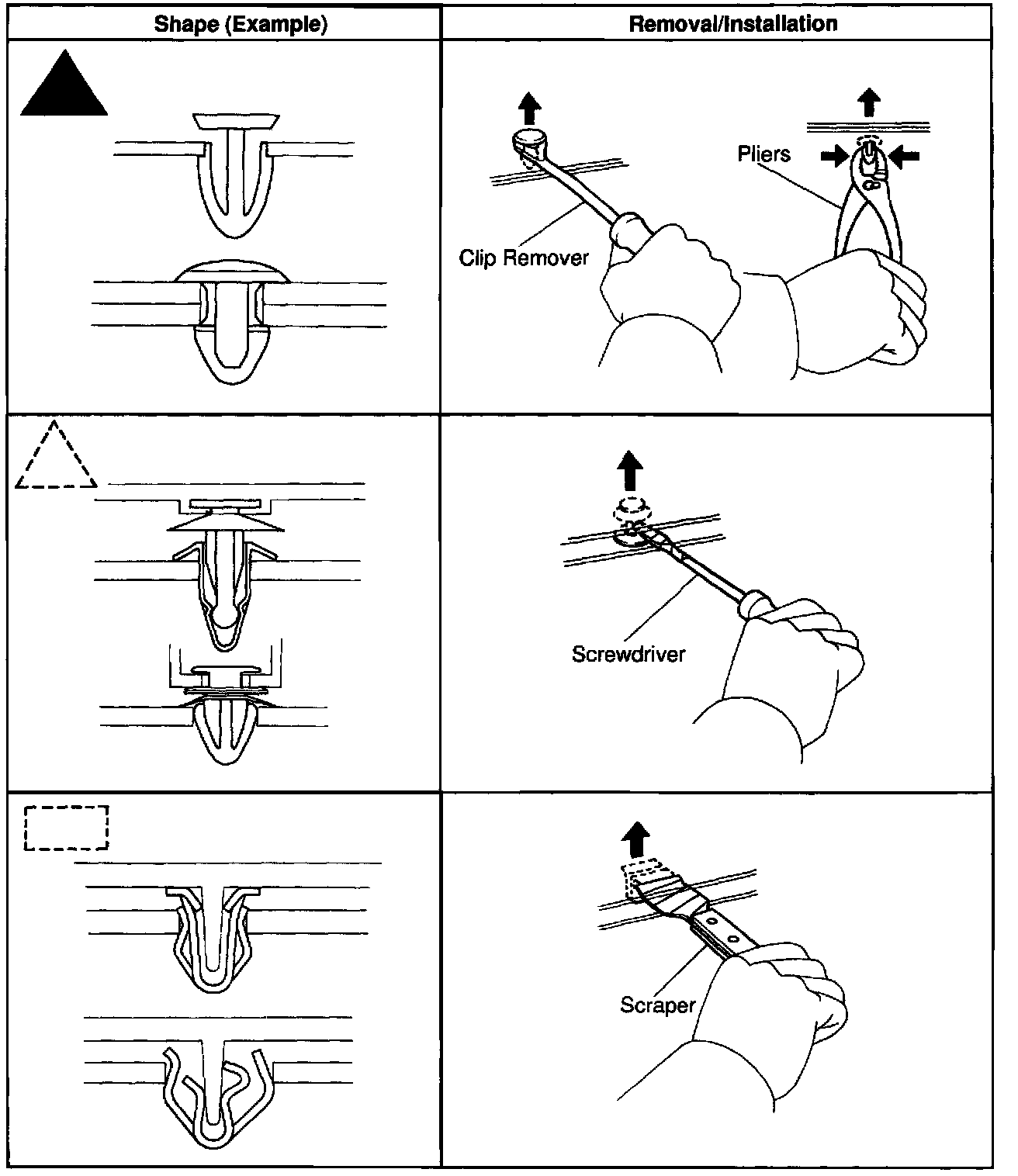

Clip (Part 2):
The removal and installation methods of typical clips used in body parts are shown in the table.
HINT: If the clip is damaged during the operation, always replace it with a new clip.
