Home >> Toyota >> 2002 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Specifications

Trunk / Liftgate: Specifications

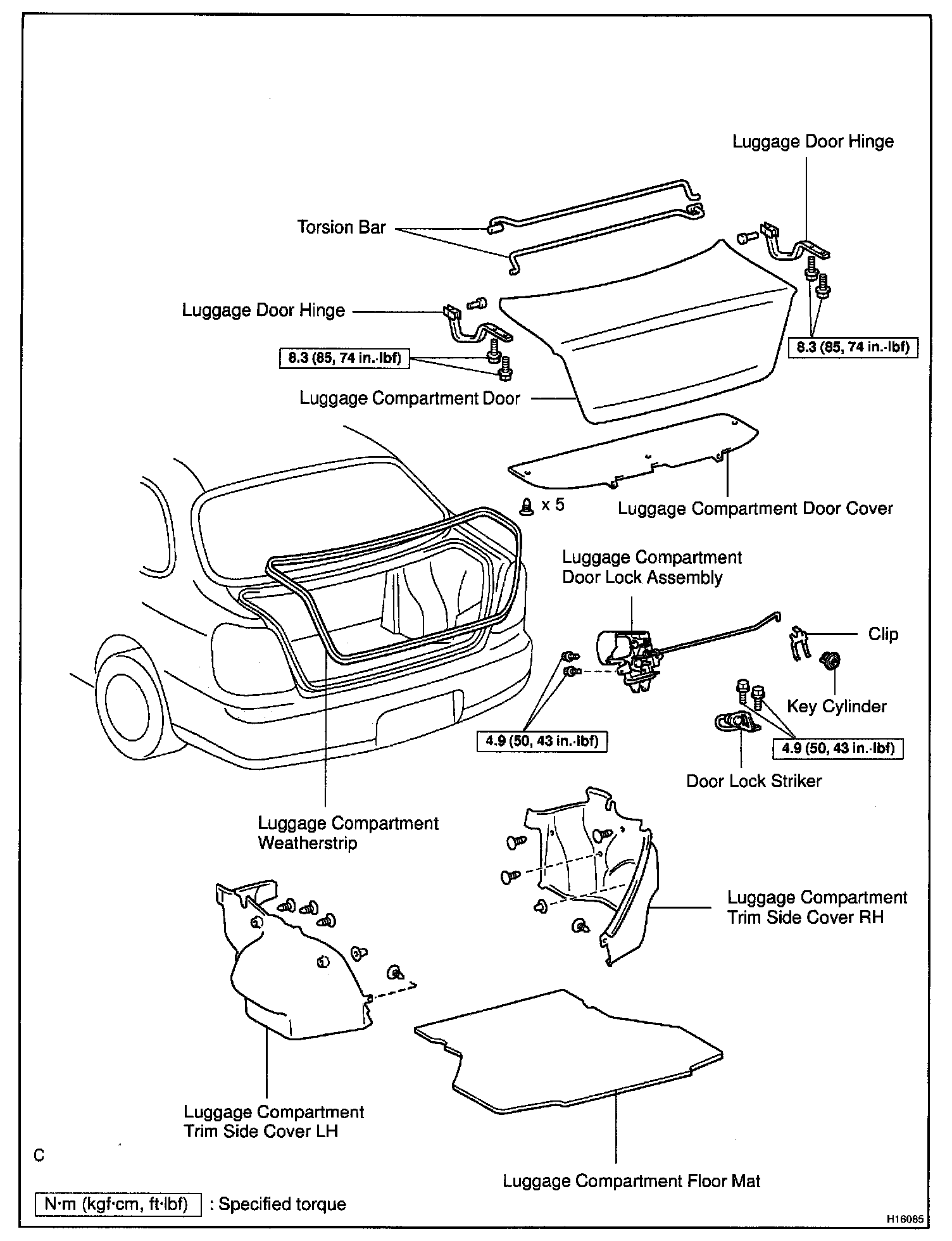

Luggage Compartment Door And Hinge:



Luggage Compartment Door And Hinge:
