ECU Power Source Circuit

CIRCUIT DESCRIPTION

This circuit provides power to operate the theft deterrent ECU.

Wiring Diagram:






Step 1 - 2:




Step 3:

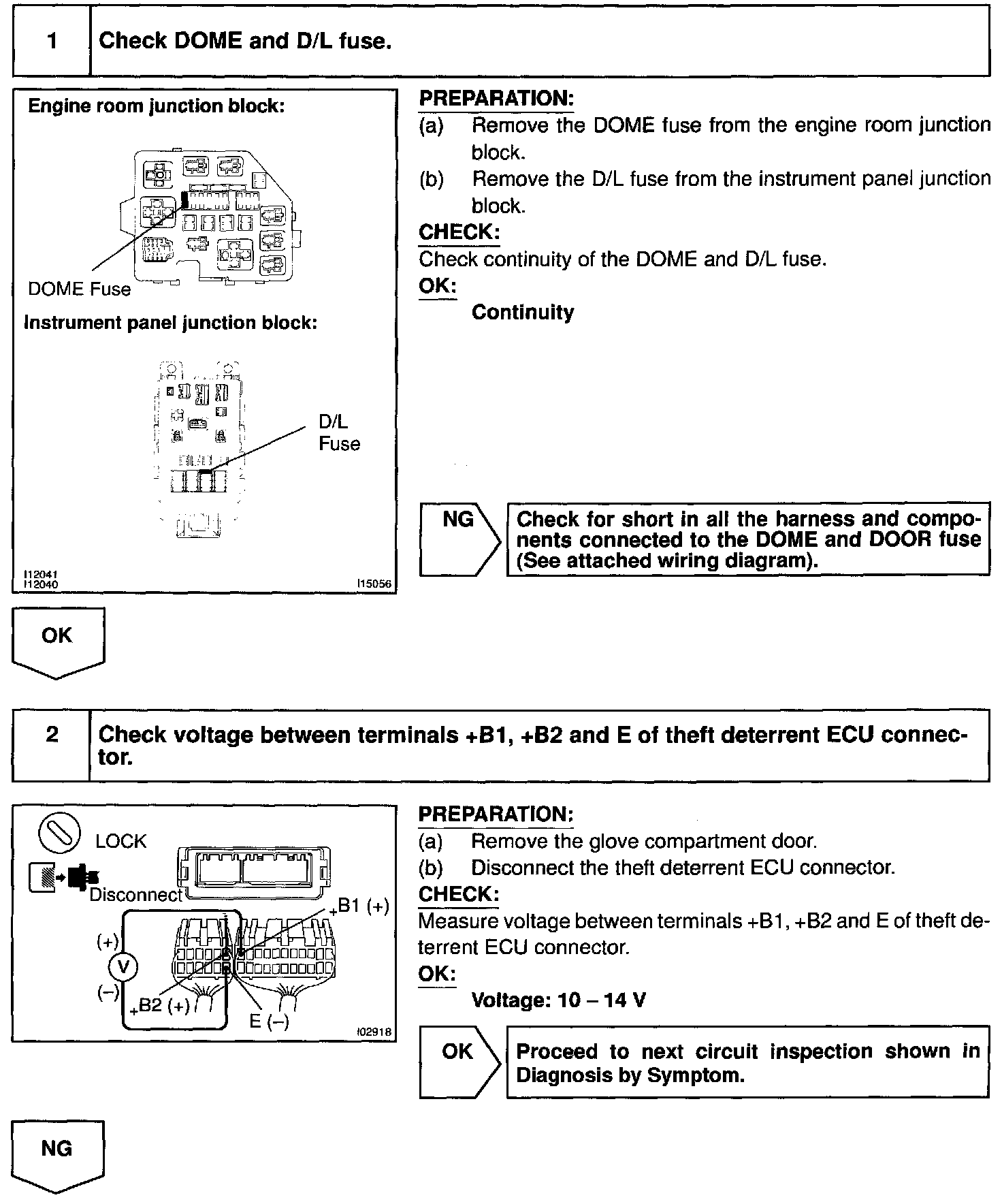

INSPECTION PROCEDURE
