Troubleshooting

P0711 - Transmission Fluid Temperature Sensor Circuit Range/Performance Problem

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

Wiring Diagram:

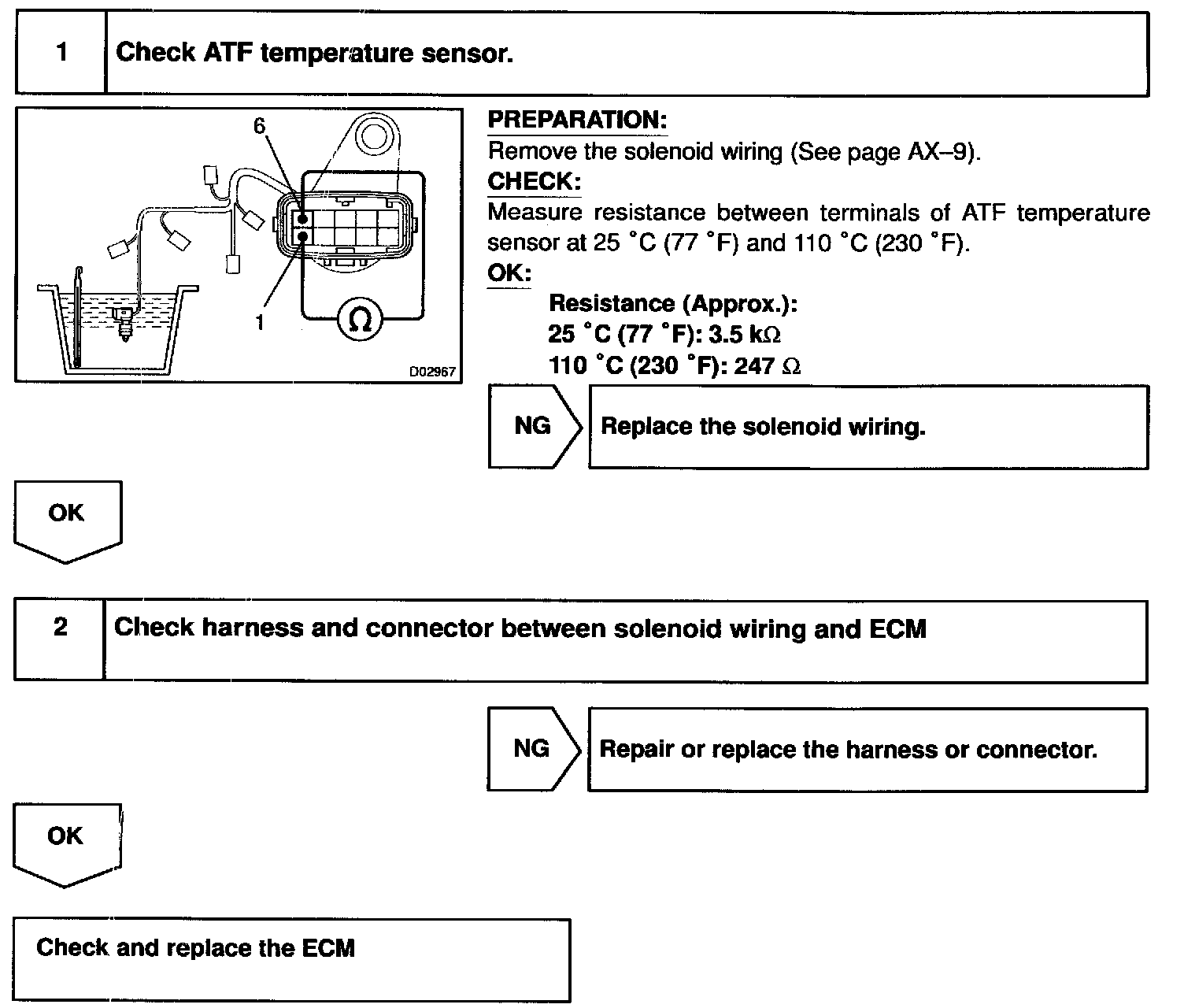

Step 1 - 2:

INSPECTION PROCEDURE
