C1241

C1241 - IG Power Source Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This is the power source for the ECU, hence for the CPU, and ABS actuator.

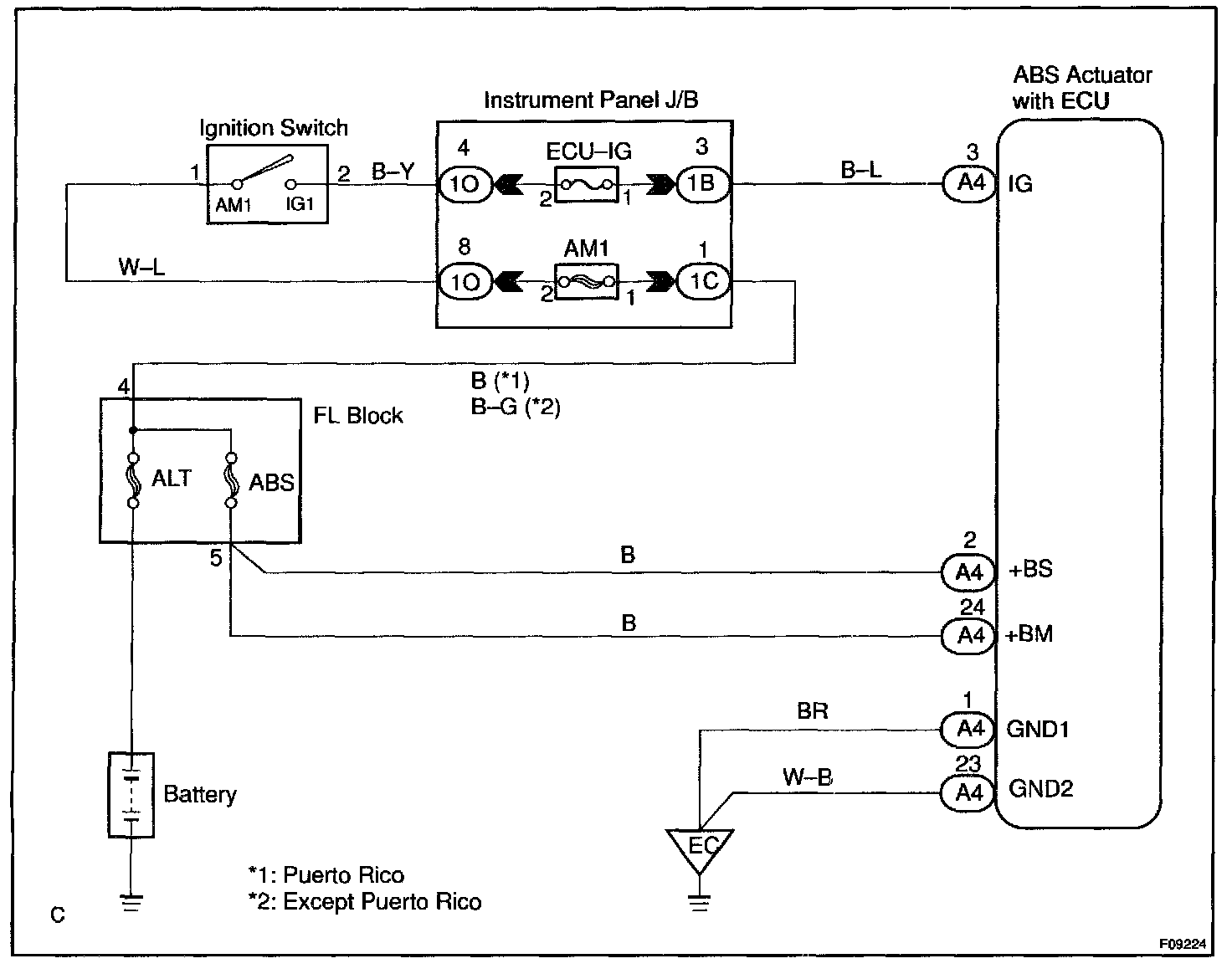

Wiring Diagram:

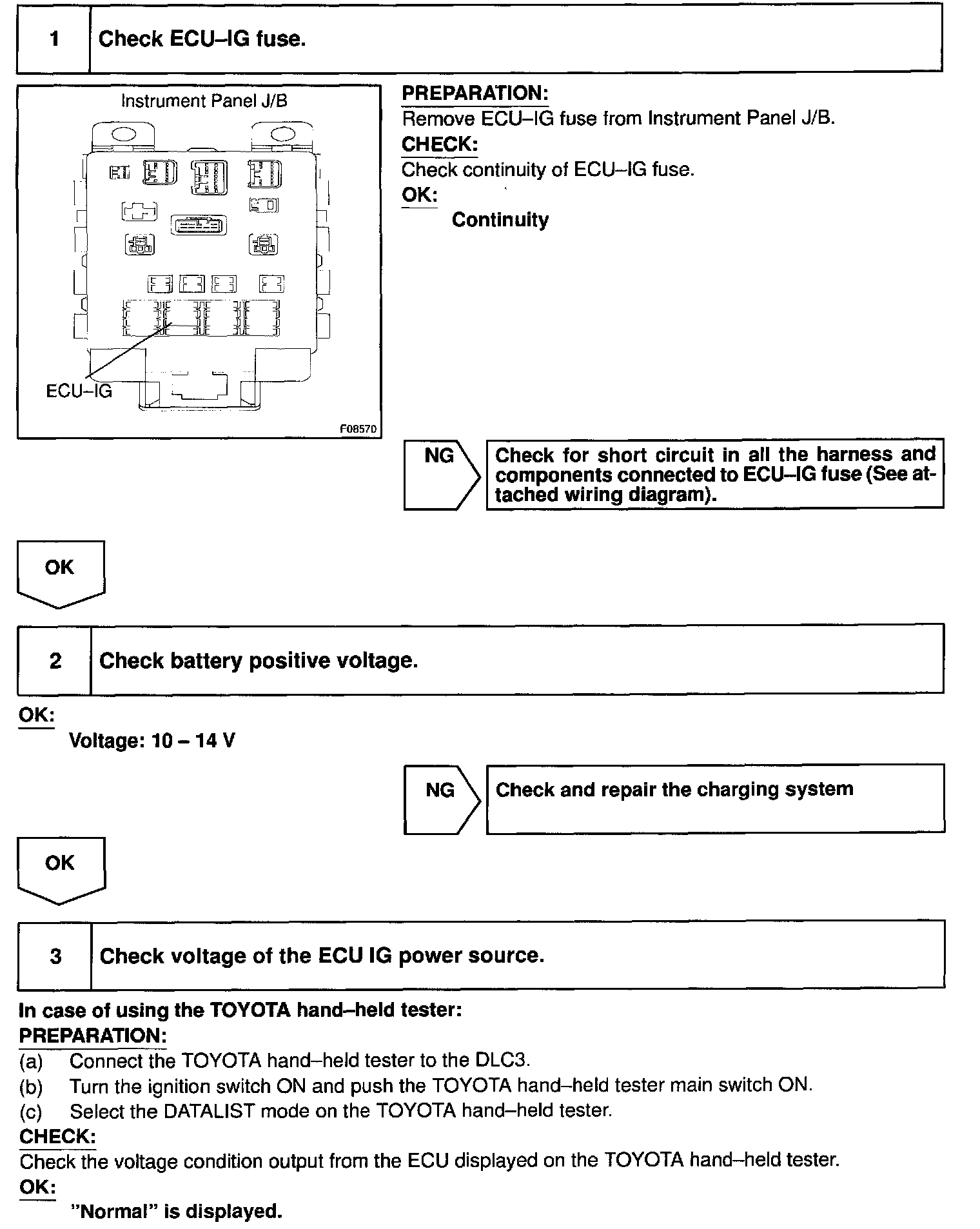

Step 1 - 3:

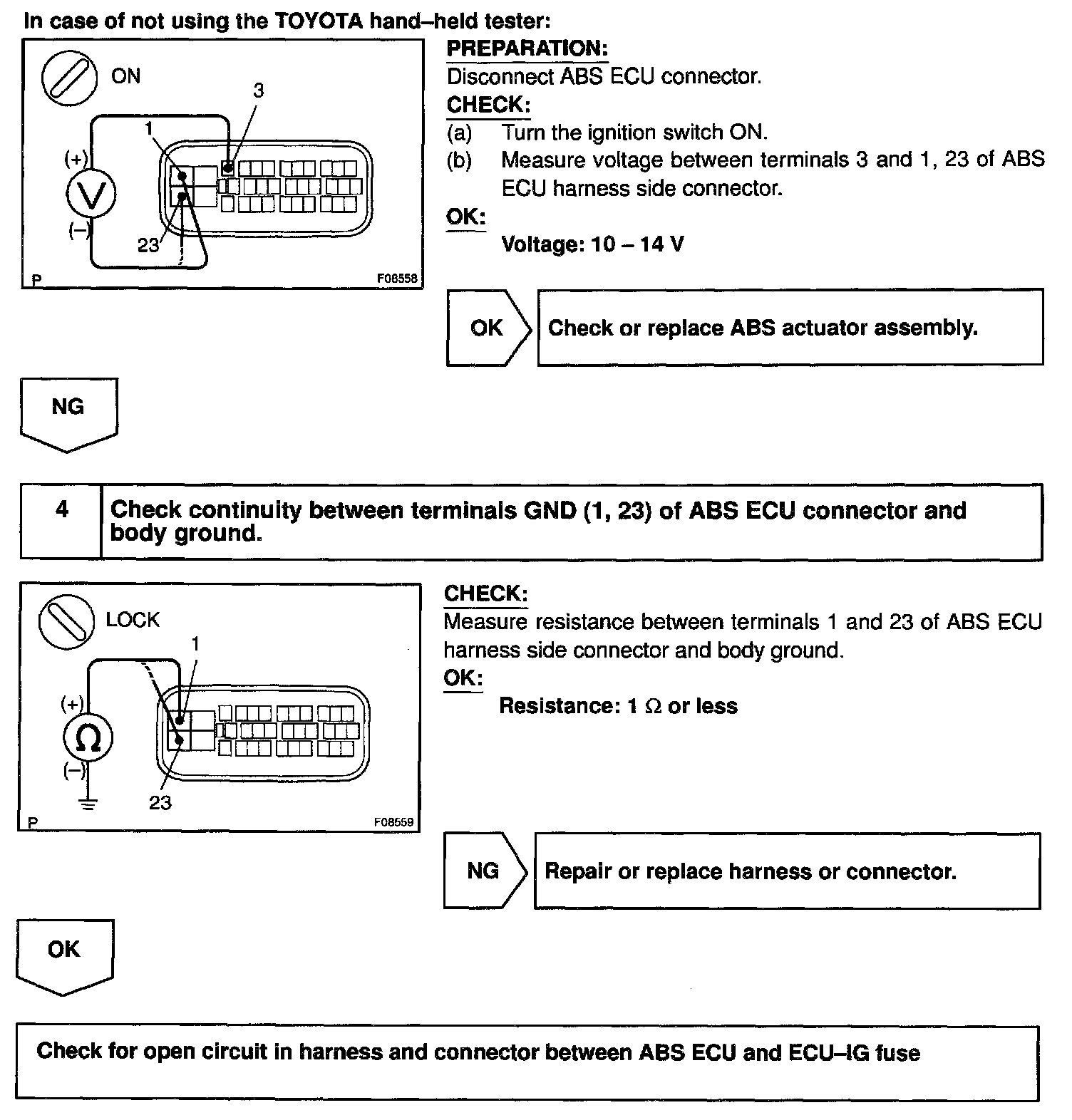

Step 3(continued) - 4:

INSPECTION PROCEDURE
