B1141

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The side airbag sensor assembly (LH) consists of the safing sensor, diagnosis circuit and lateral deceleration sensor, etc.

It receives signals from the lateral deceleration sensor, judges whether or not the SRS must be activated, and detects diagnosis system malfunction.

DTC B1141/33 is recorded when occurrence of a malfunction in the side airbag sensor assembly (LH) is detected.

Wiring Diagram:

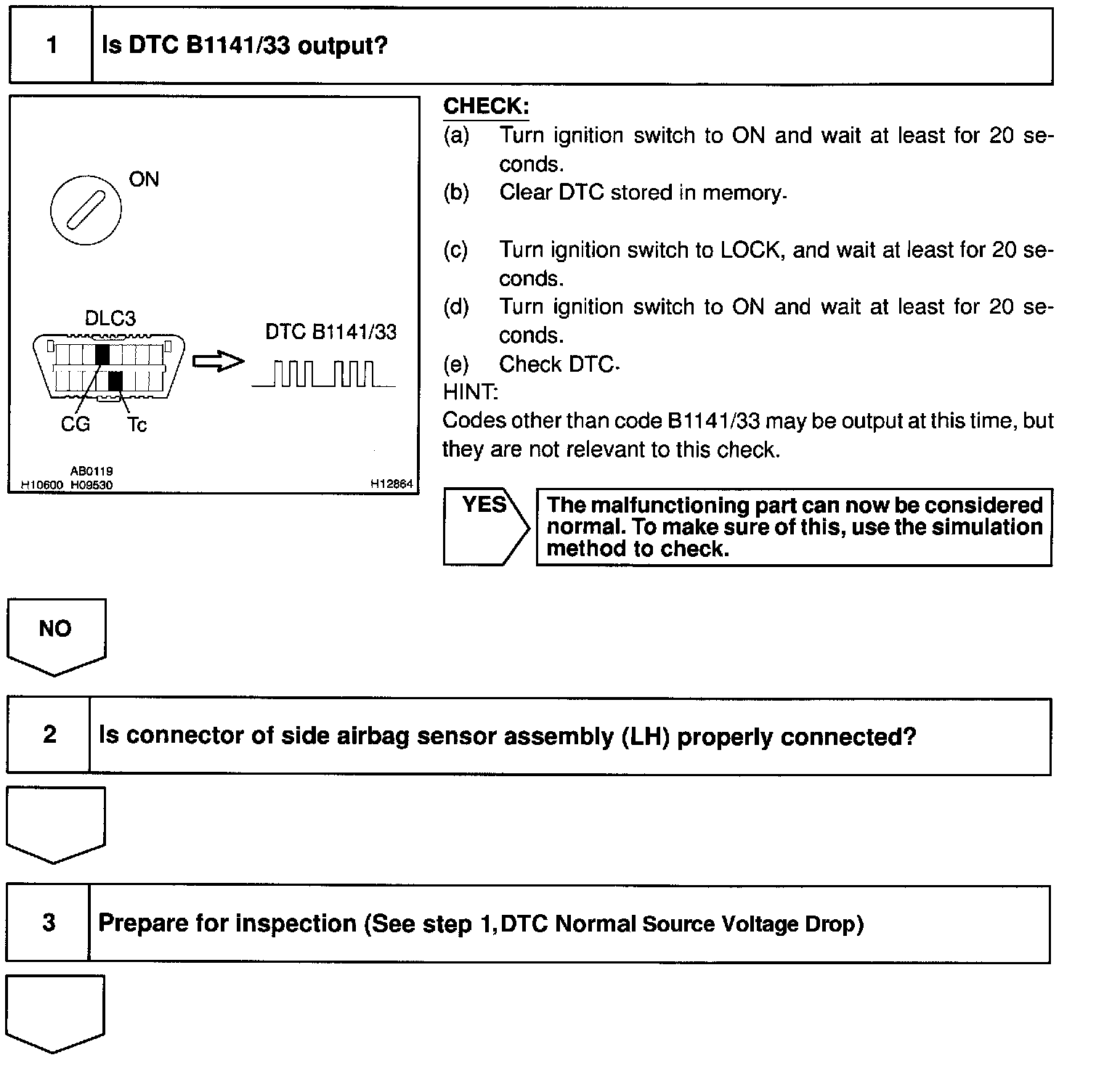

Step 1 - 3:

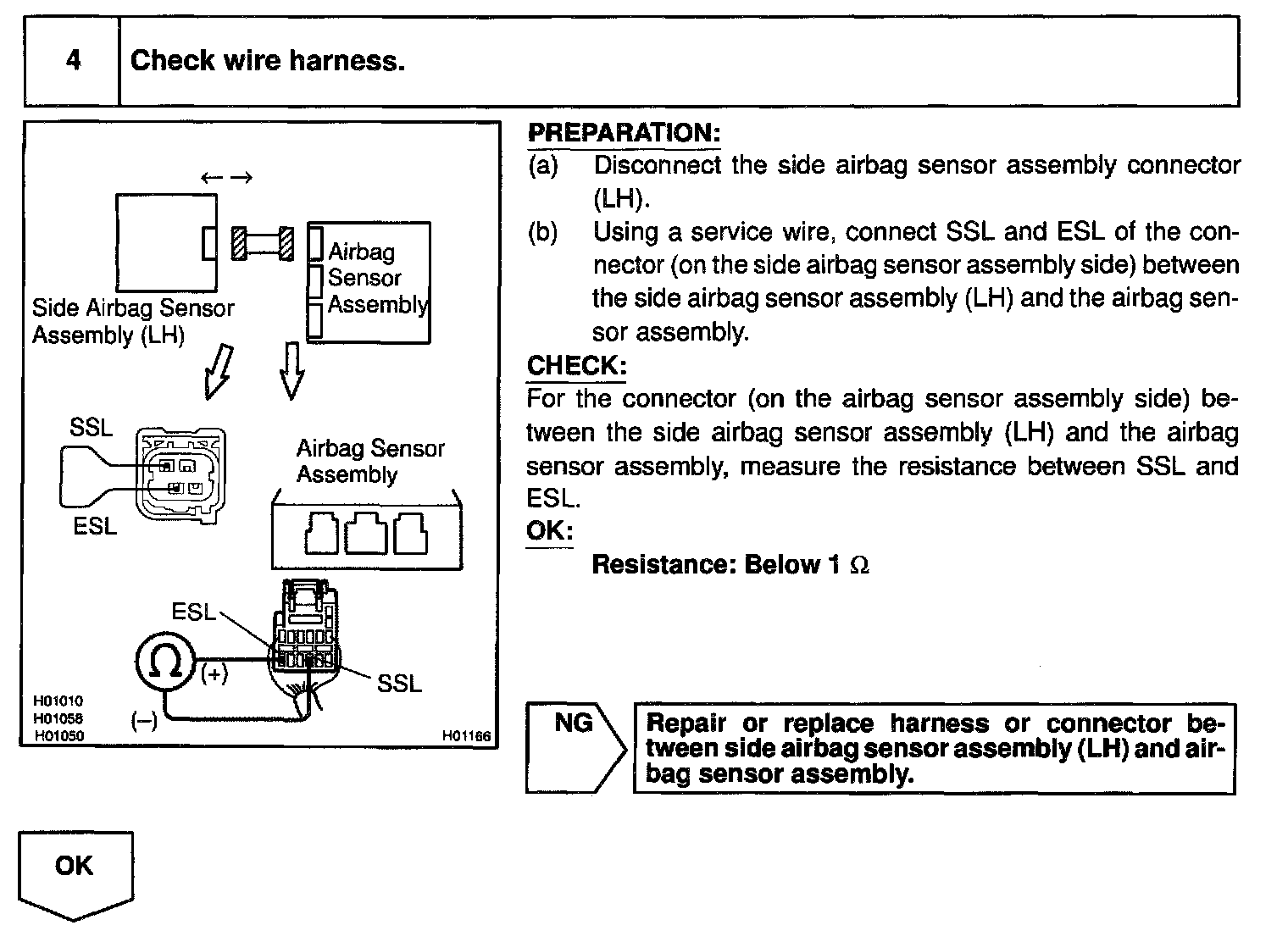

Step 4:

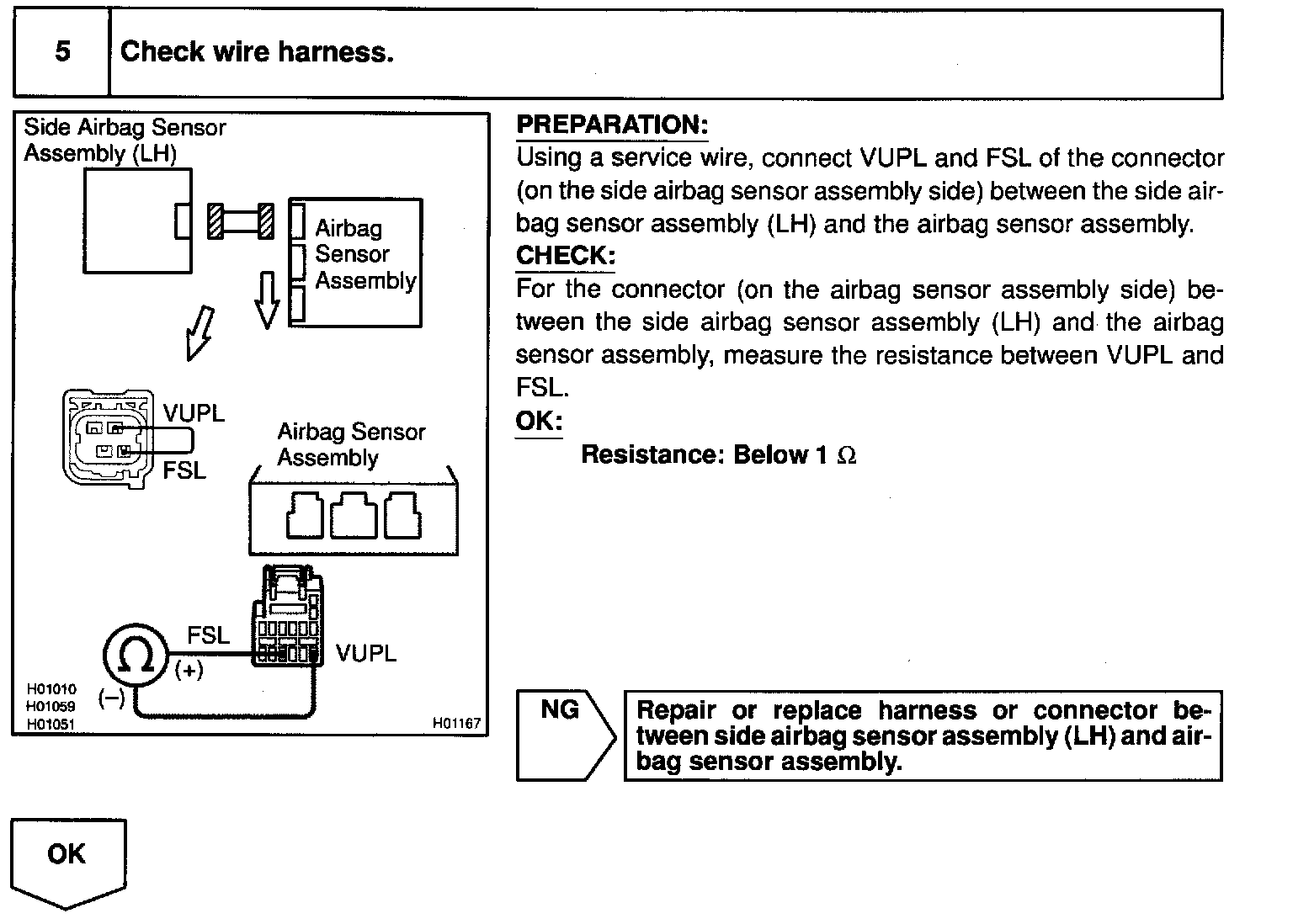

Step 5:

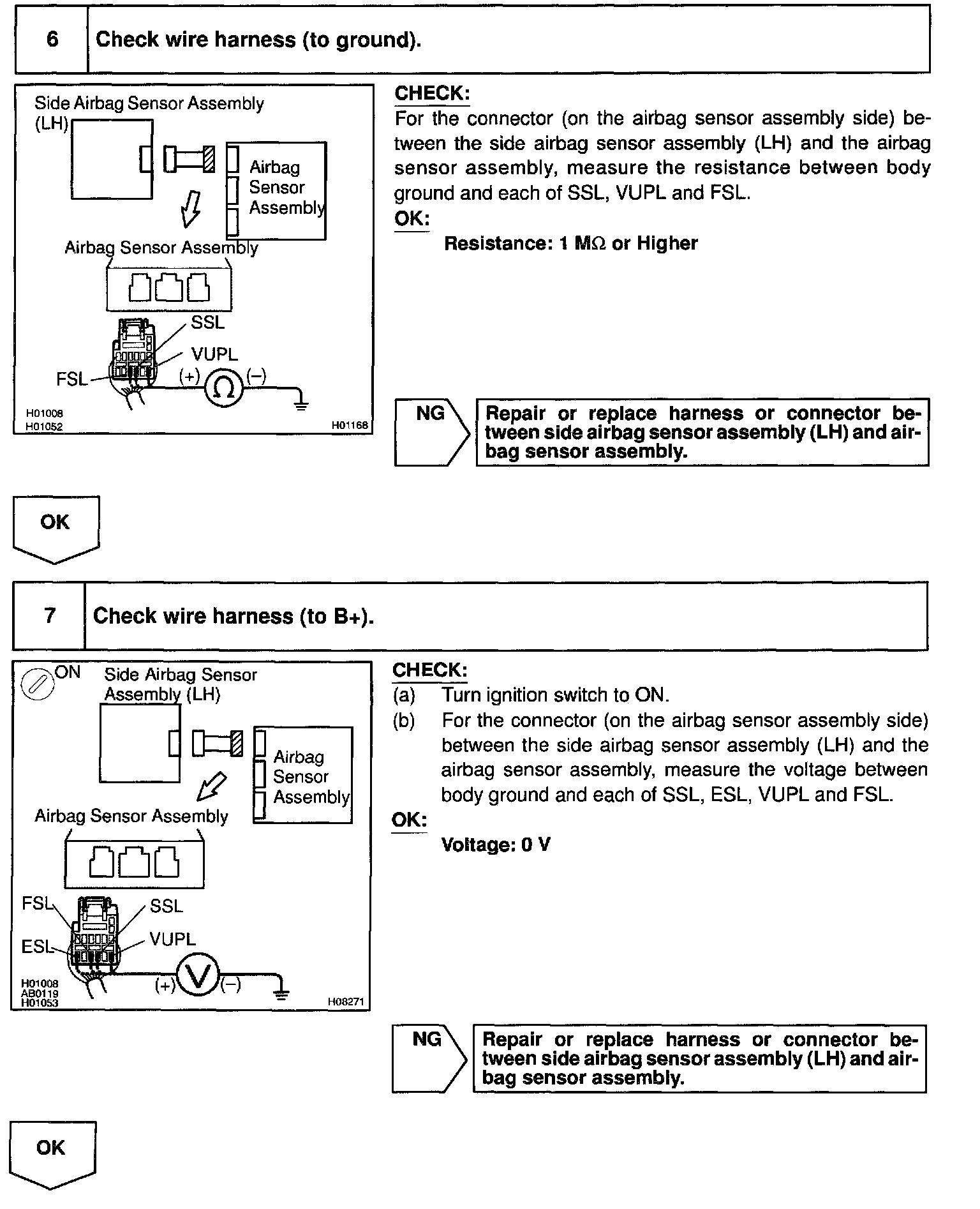

Step 6 - 7:

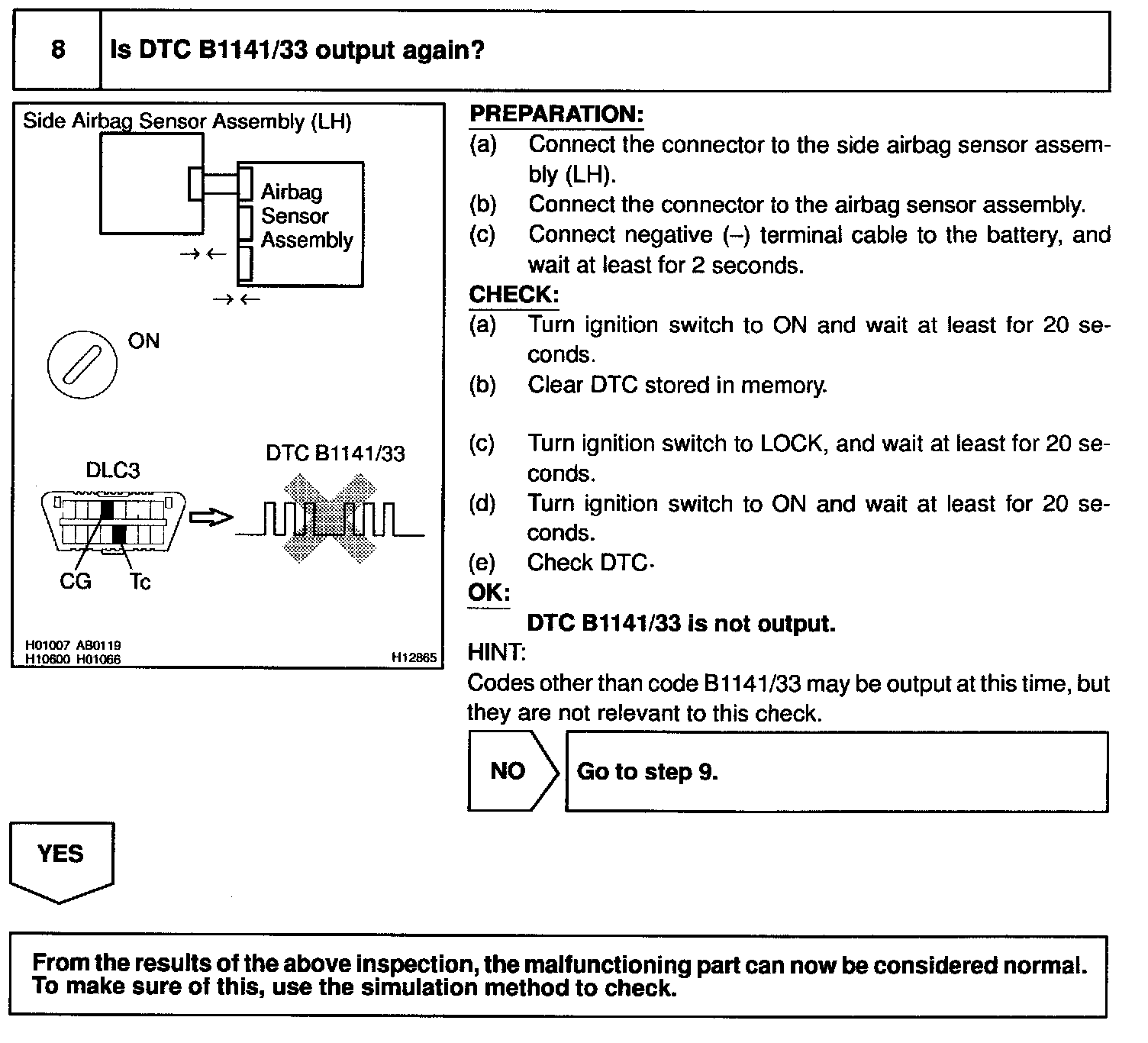

Step 8:

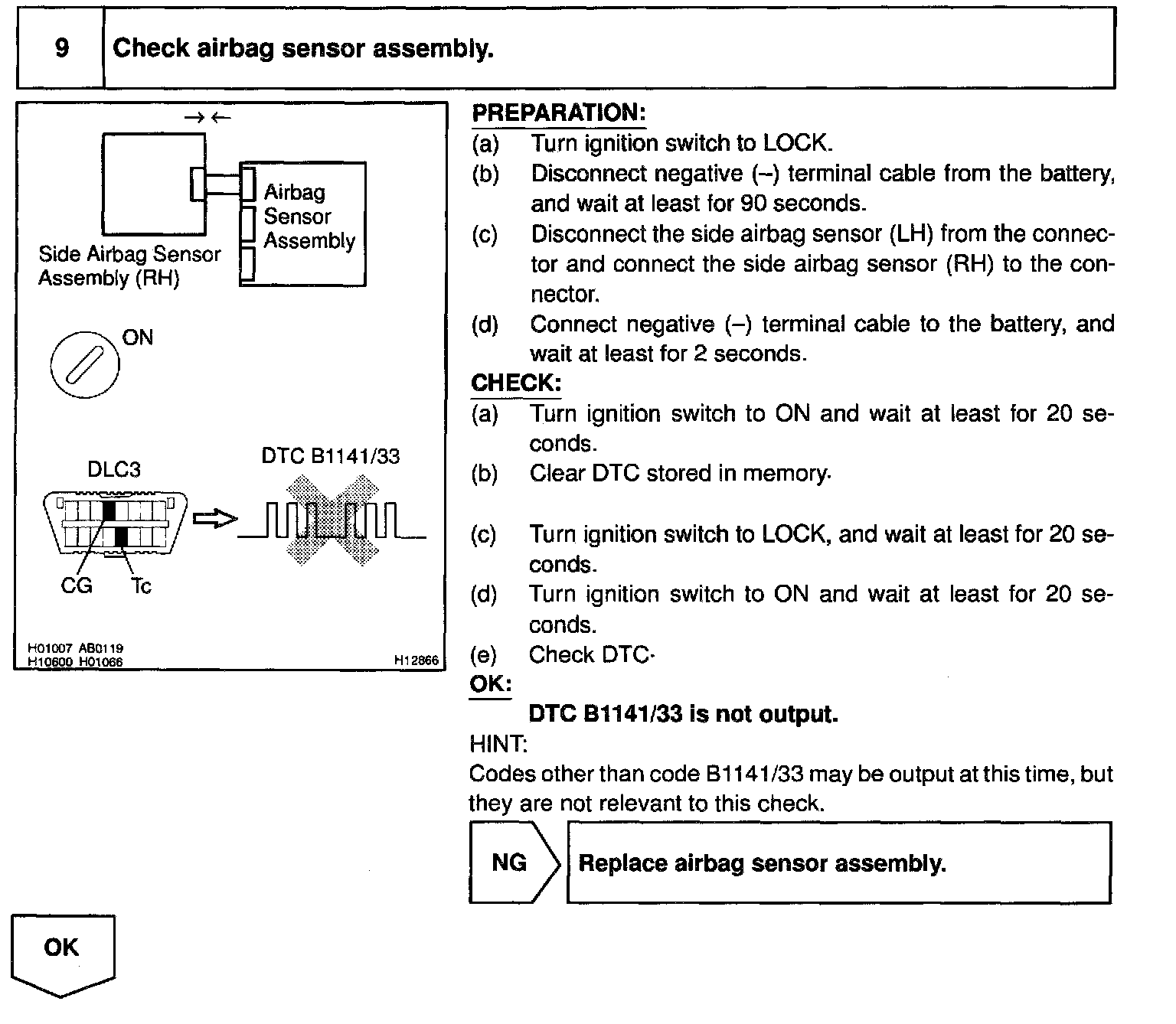

Step 9:

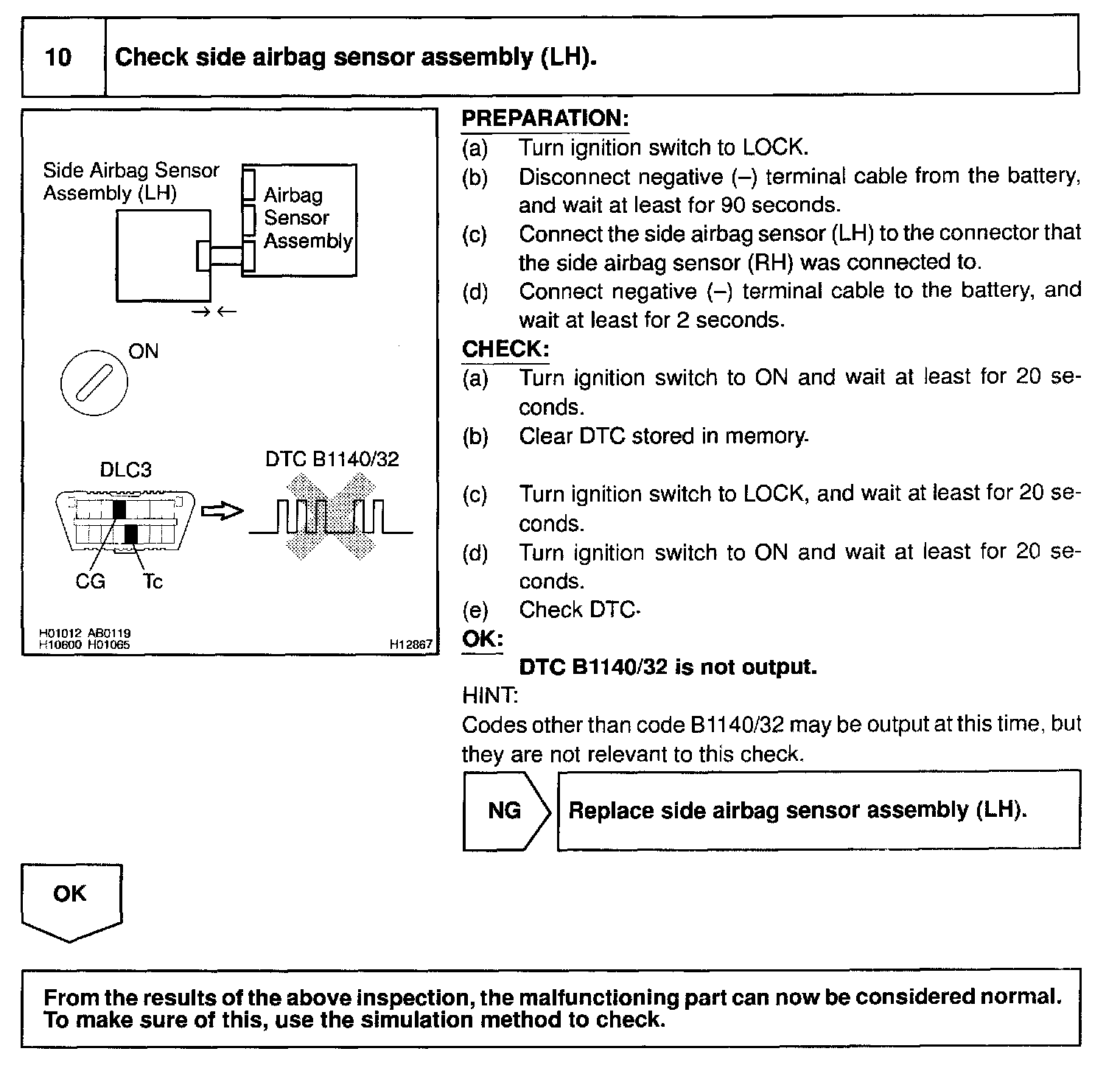

Step 10:

INSPECTION PROCEDURE
