B1135

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The airbag sensor assembly detects partial connection of connector
For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1135/24 is recorded when the airbag sensor assembly detects an open in the electrical connection check mechanism of the airbag sensor connector or in the airbag sensor circuit.

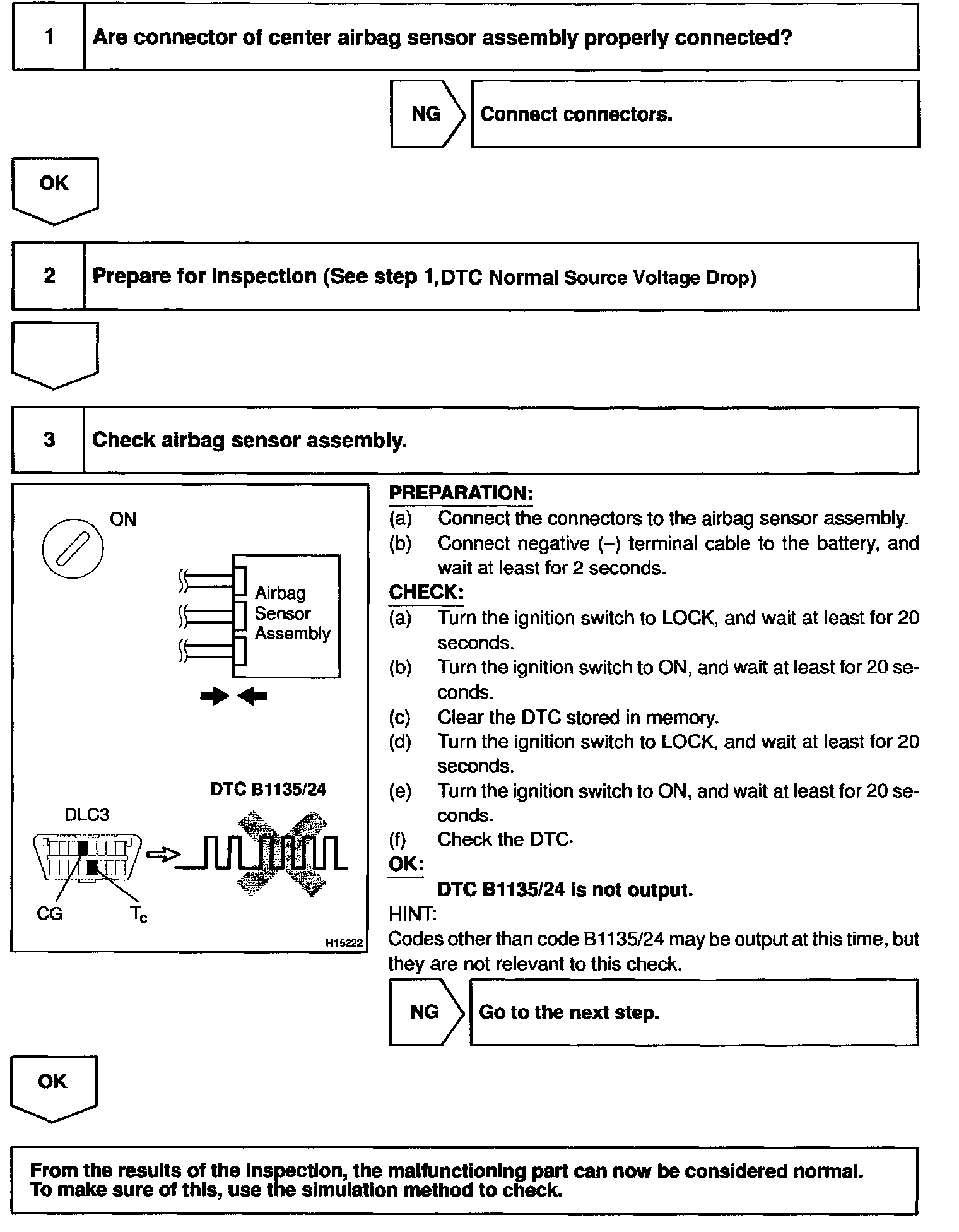

Step 1 - 3:

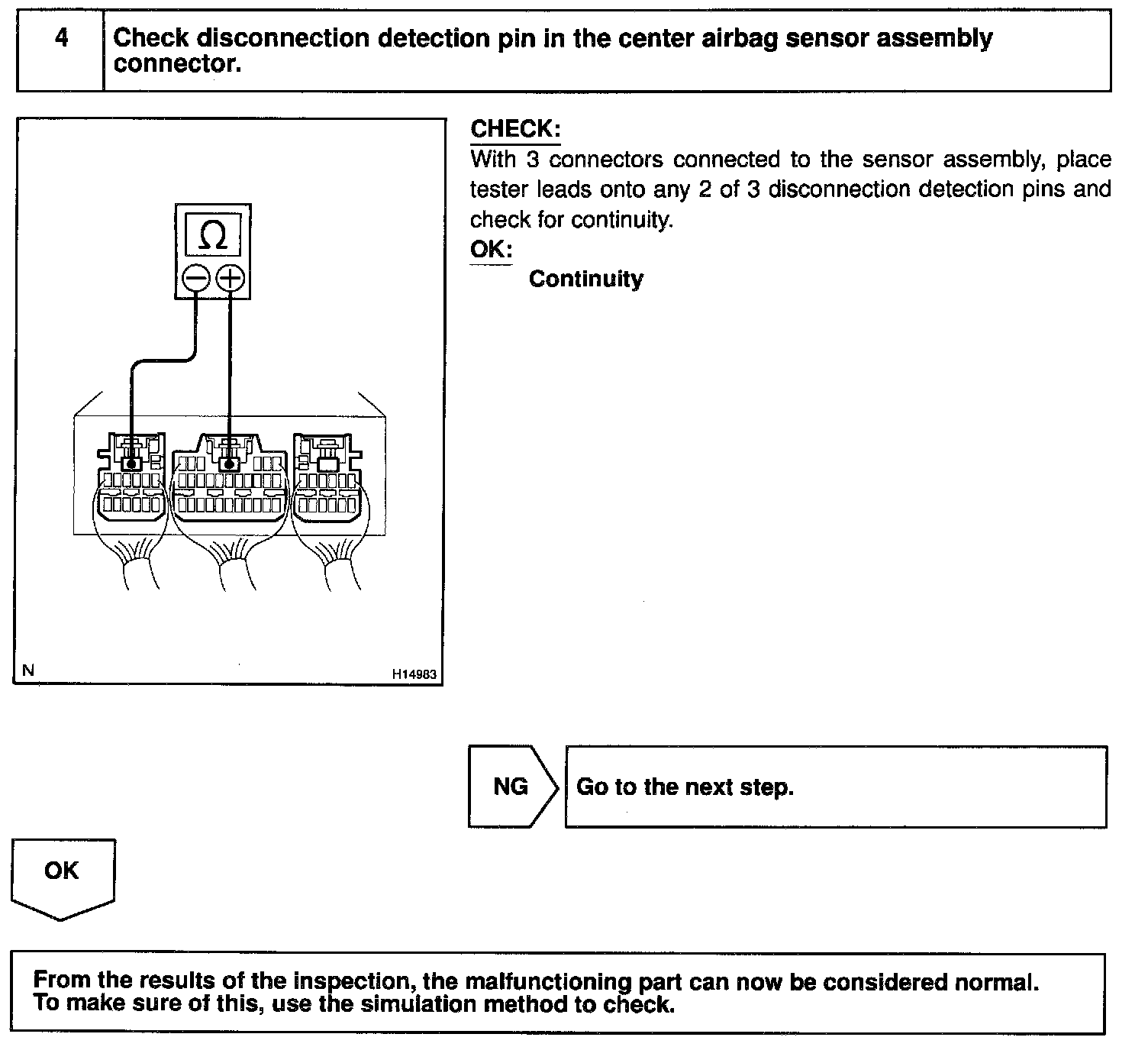

Step 4:

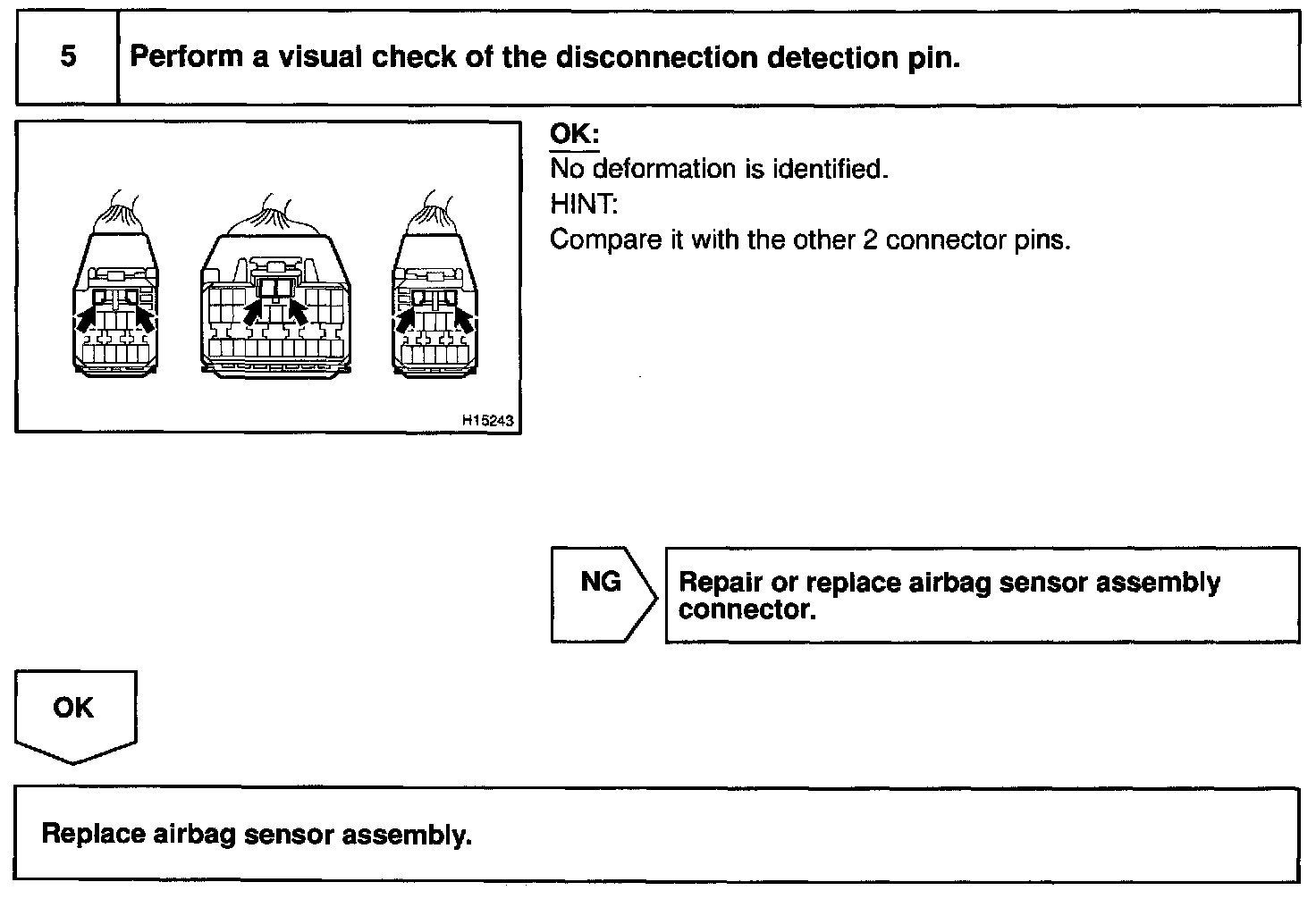

Step 5:

INSPECTION PROCEDURE
