B0102

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0102/11 is recorded when a ground short is detected in the D squib circuit.

Wiring Diagram:

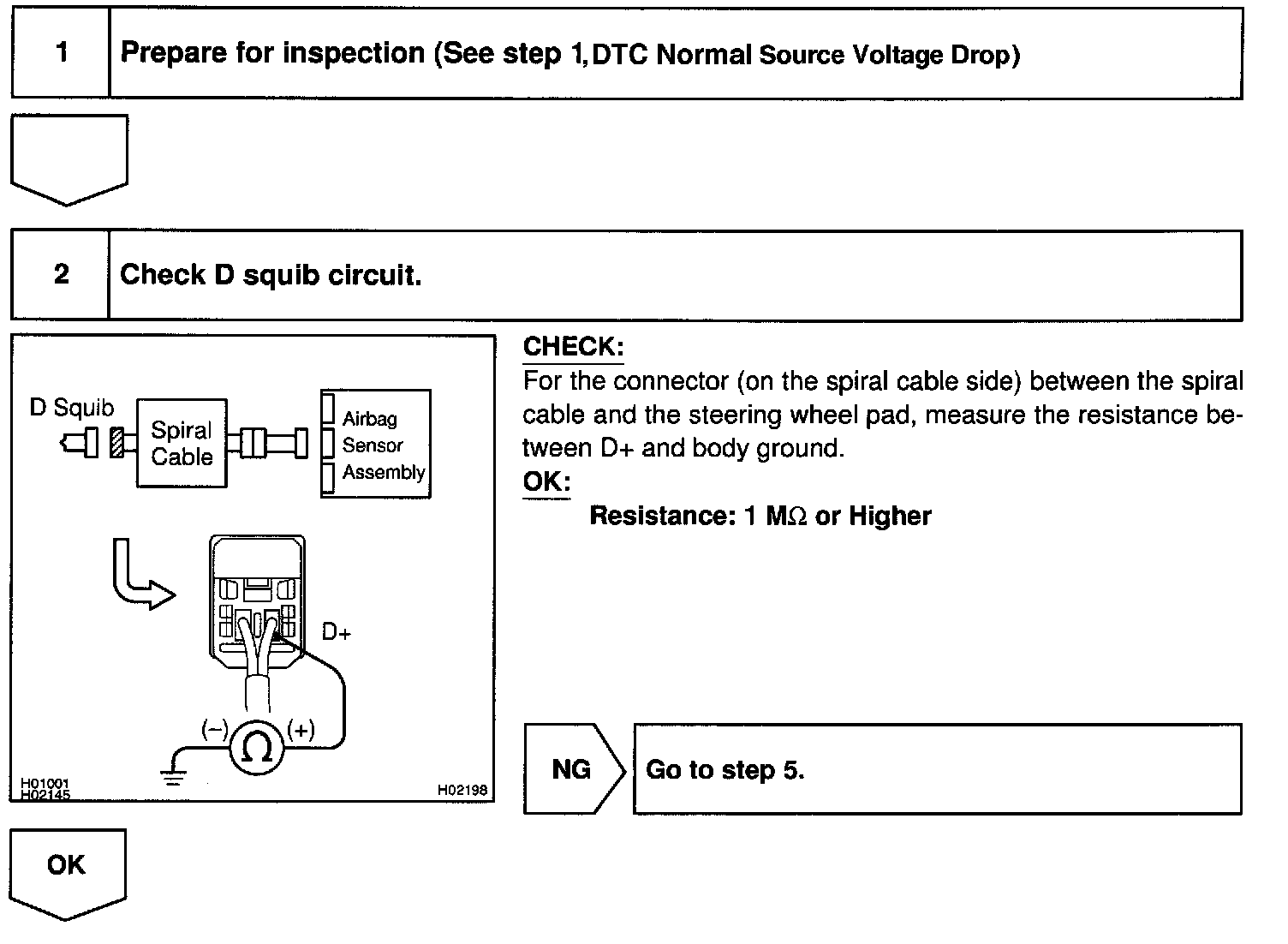

Step 1 - 2:

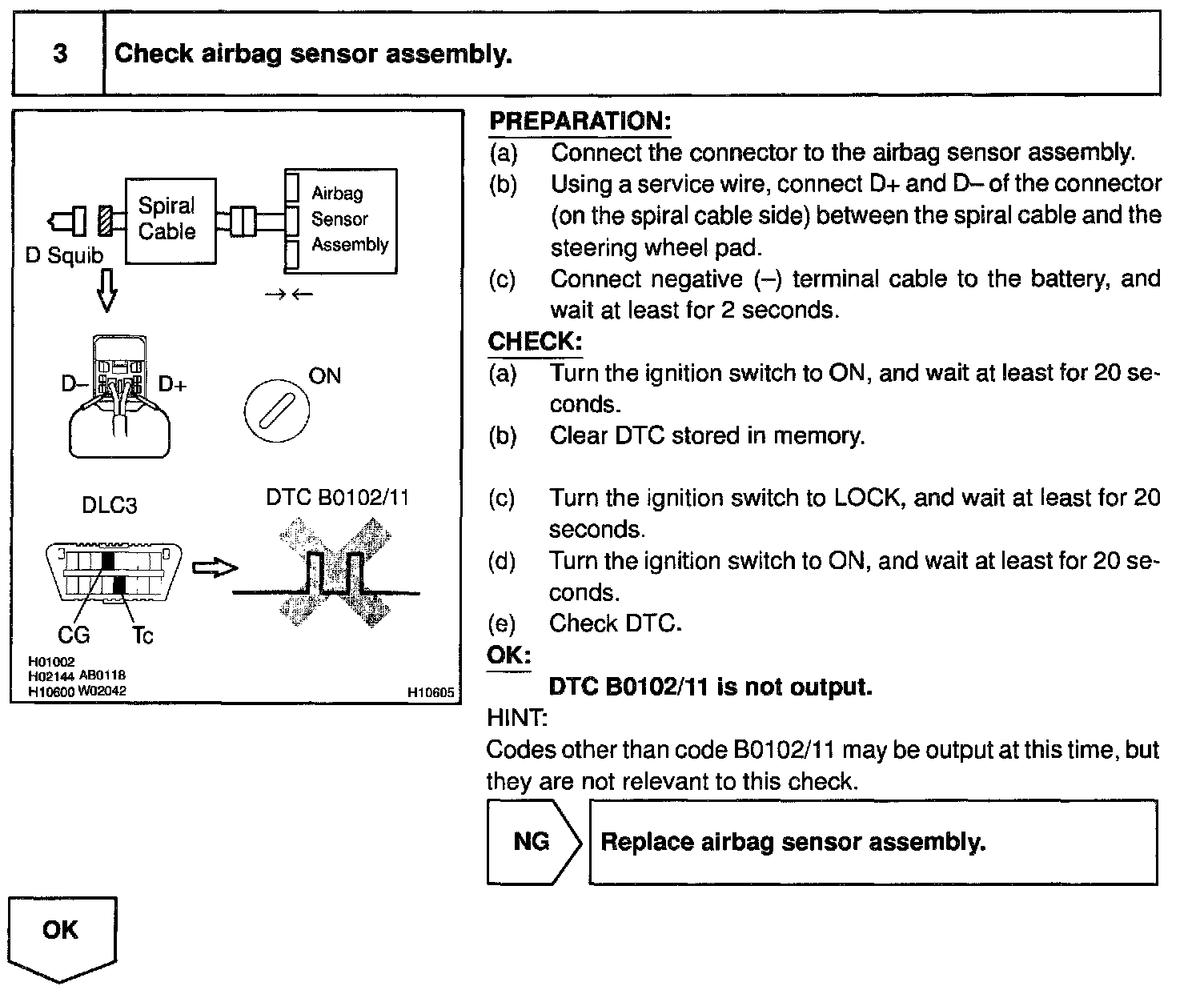

Step 3:

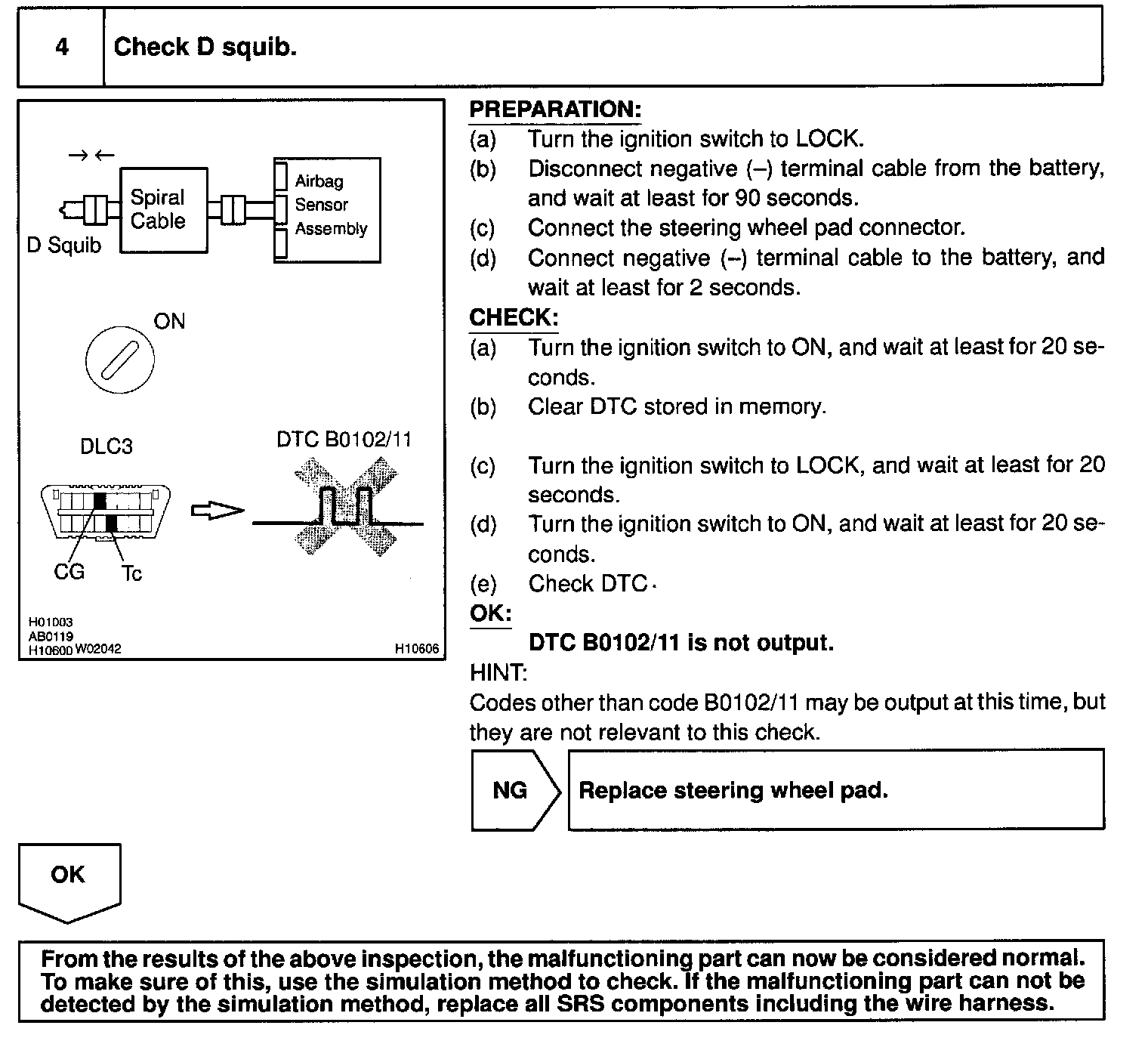

Step 4:

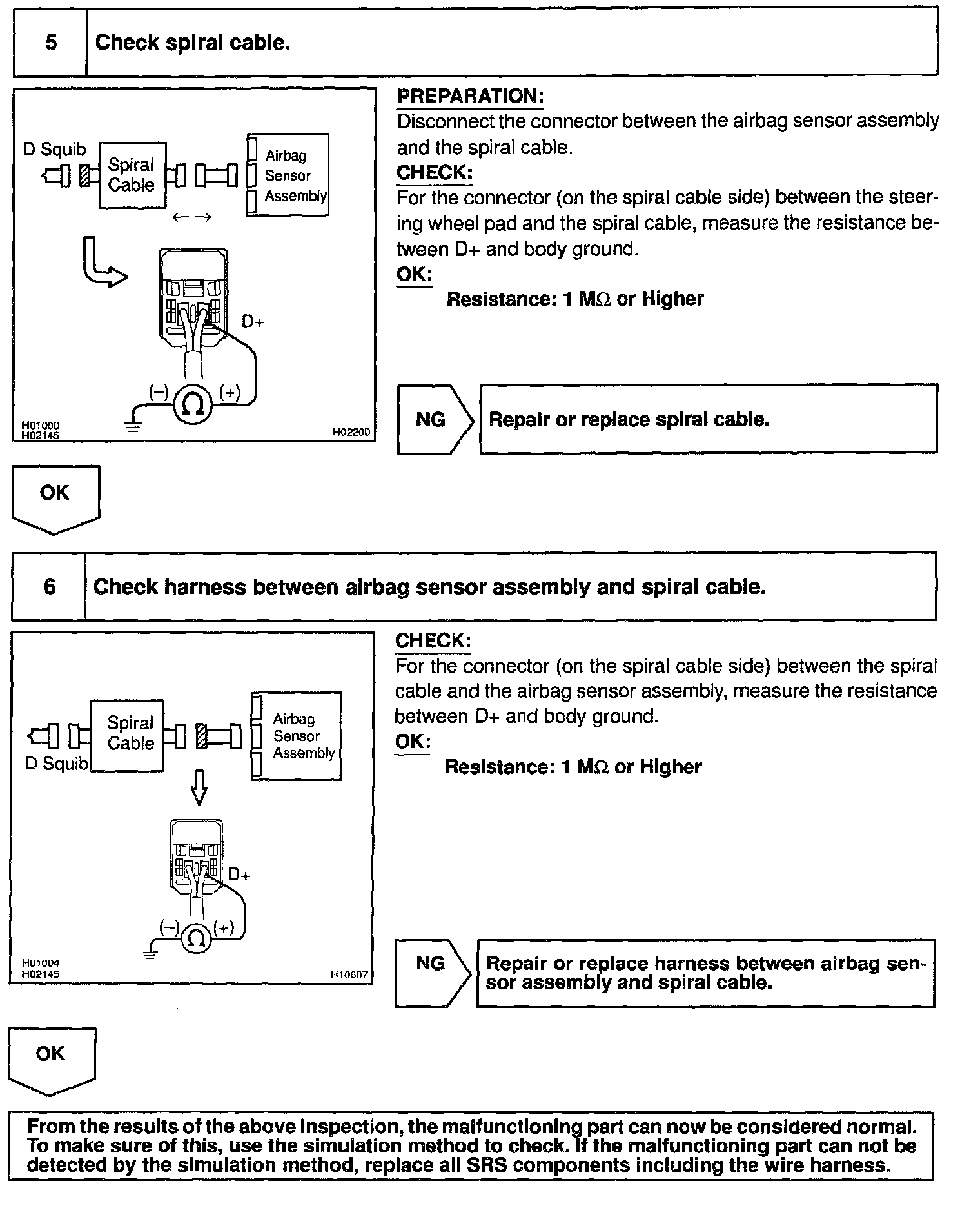

Step 5 - 6:

INSPECTION PROCEDURE
