Seat Belt PRETENSIONER: Removal

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the wiring connector of the seat belt pretensioner is disconnected with the ignition switch at ON or ACC, diagnostic trouble codes will be recorded.
Never use seat belt pretensioner from another vehicle. When replacing parts, replace them with new parts.

Remove front door inside scuff plate .
Using a screwdriver, remove the front door inside scuff plate.

NOTE: Tape the screwdriver tip before use.

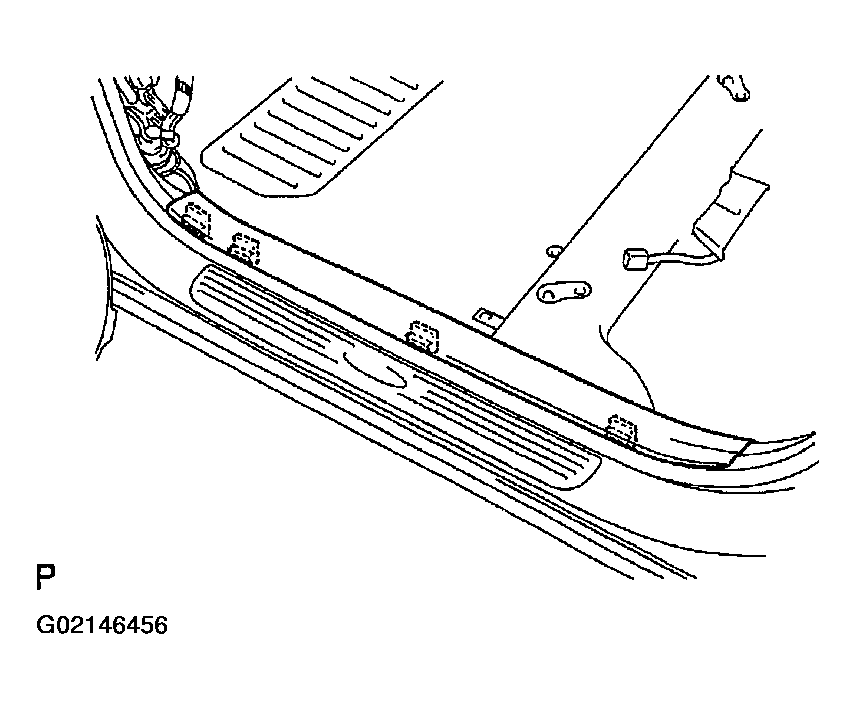

Fig 1: Identifying Front Door Inside Scuff Plate Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Tape the screwdriver tip before use.

Remove rear door inside scuff plate .
Using a screwdriver, remove the rear door inside scuff plate.
Remove front door opening trim .
Remove rear door opening trim .

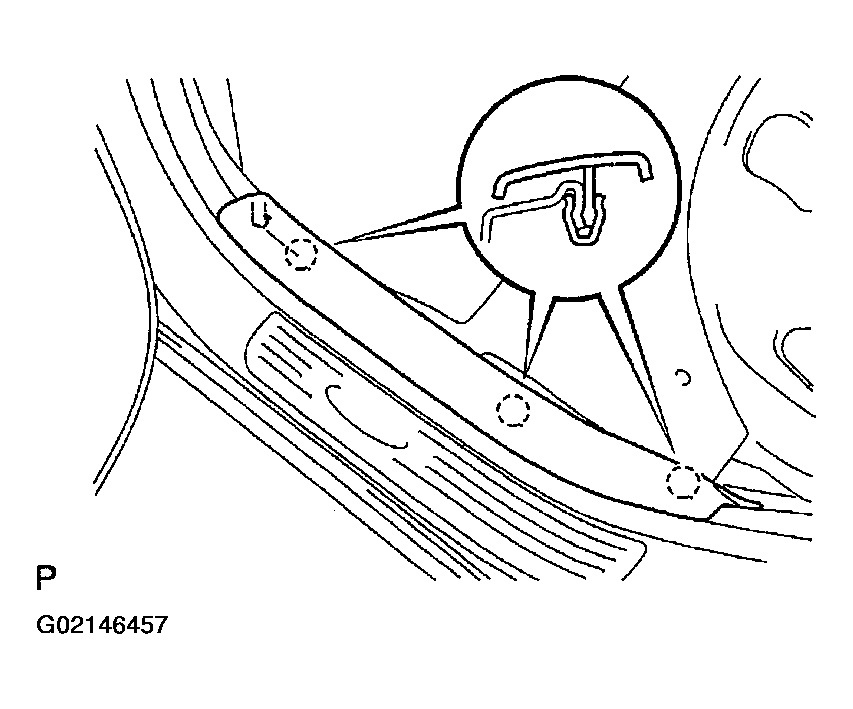

Fig 2: Identifying Rear Door Inside Scuff Plate Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove center pillar lower garnish .
Remove the center pillar lower garnish as shown in Fig 3.

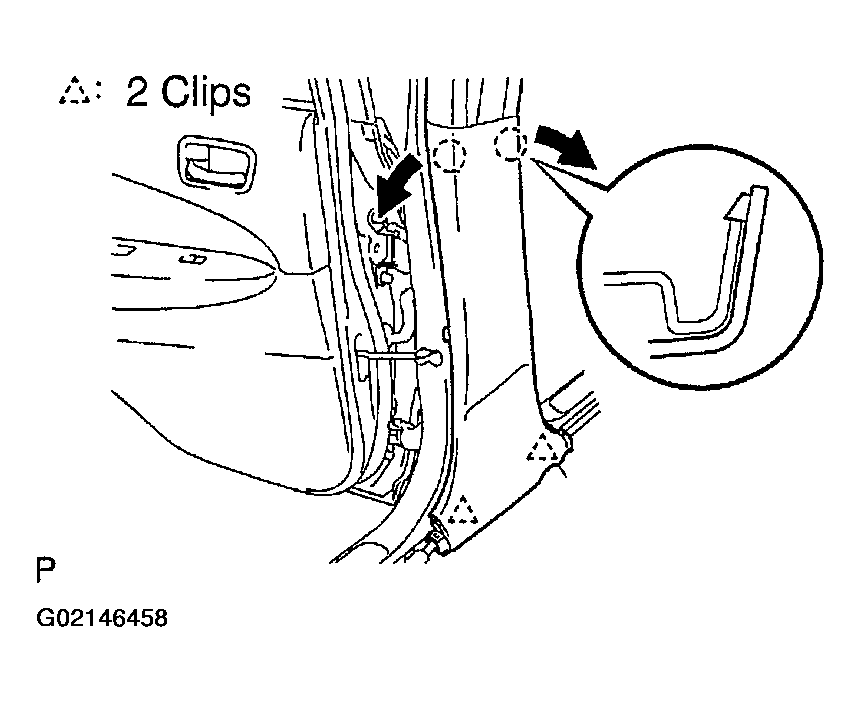

Fig 3: Identifying Center Pillar Lower Garnish Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove front seat outer belt :
1. Using a screwdriver, remove the shoulder anchor cover.
  NOTE: Tape the screwdriver tip before use.

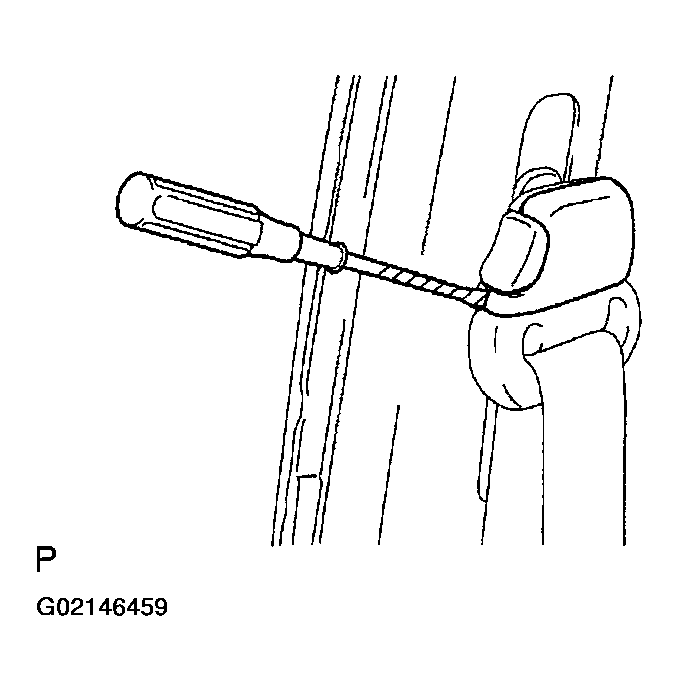

  Fig 4: Removing Shoulder Anchor Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and shoulder anchor.
3. Using a screwdriver, remove the floor anchor cover.
  NOTE: Tape the screwdriver tip before use.
4. Remove the bolt and floor anchor.
5. Driver's Side
  Remove the retractor of front seat outer belt.

  CAUTION: Never disassemble the front seat outer belt.
  When removing the retractor of front seat outer belt, take care not to pull the seat belt pretensioner wire harness.
  1. Disconnect the pretensioner connector as shown in Fig 5.

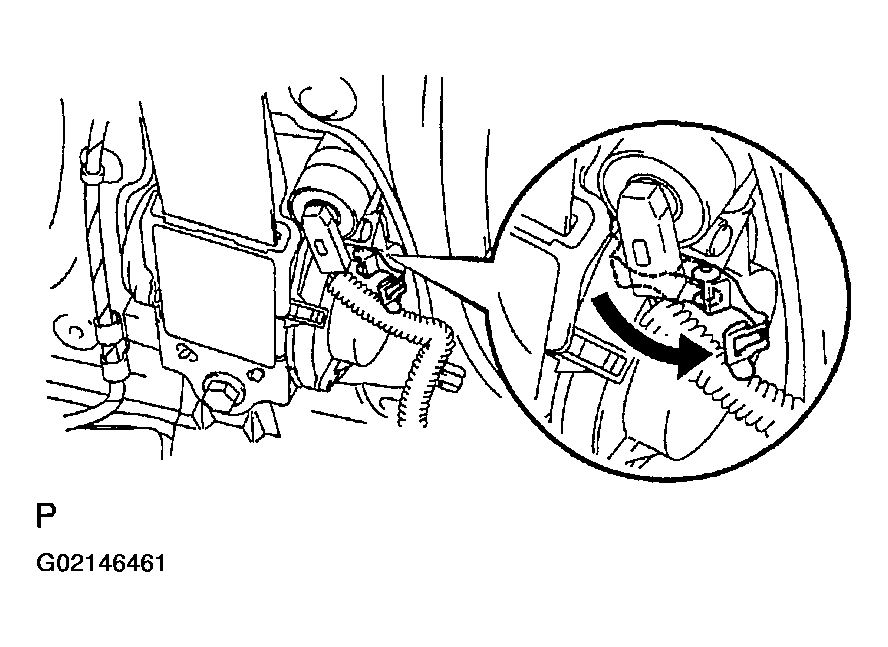

    Fig 5: Disconnecting Front Seat Belt Pretensioner Connector (Driver's Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disconnect the tension reducer connector.
    NOTE: When removing the seat belt pretensioner, work must be started 90 seconds after the ignition switch is turned to the "LOCK" position and the negative (-) terminal cable is disconnected from the battery.

    CAUTION: When handling the pretensioner connector and tension reducer, take care not to damage the harness.
  3. Remove the bolts and retractor of front seat outer belt.
6. Except Driver's Side
  Remove the retractor of front seat outer belt.

  CAUTION: Never disassemble the front seat outer belt.

  NOTE: When removing the retractor of front seat outer belt, take care not to pull the seat belt pretensioner wire harness.
  1. Disconnect the pretensioner connector as shown in Fig 6.
    NOTE: When removing the seat belt pretensioner, work must be started 90 seconds after the ignition switch is turned to the "LOCK" position and the negative (-) terminal cable is disconnected from the battery.

    CAUTION: When handling the pretensioner connector and tension reducer, take care not to damage the harness.

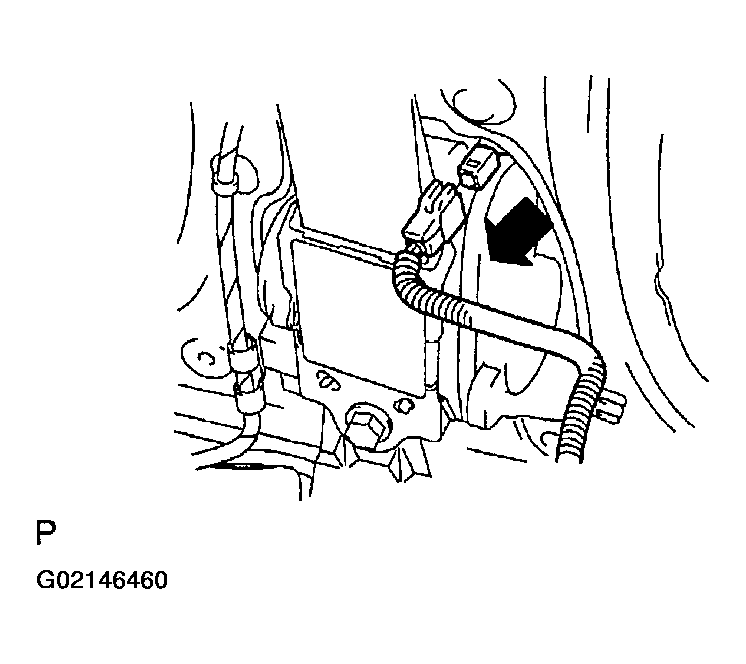

    Fig 6: Disconnecting Front Seat Belt Pretensioner Connector (Except Driver's Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the bolts and retractor of front seat outer belt.
