Power Outlet: Location

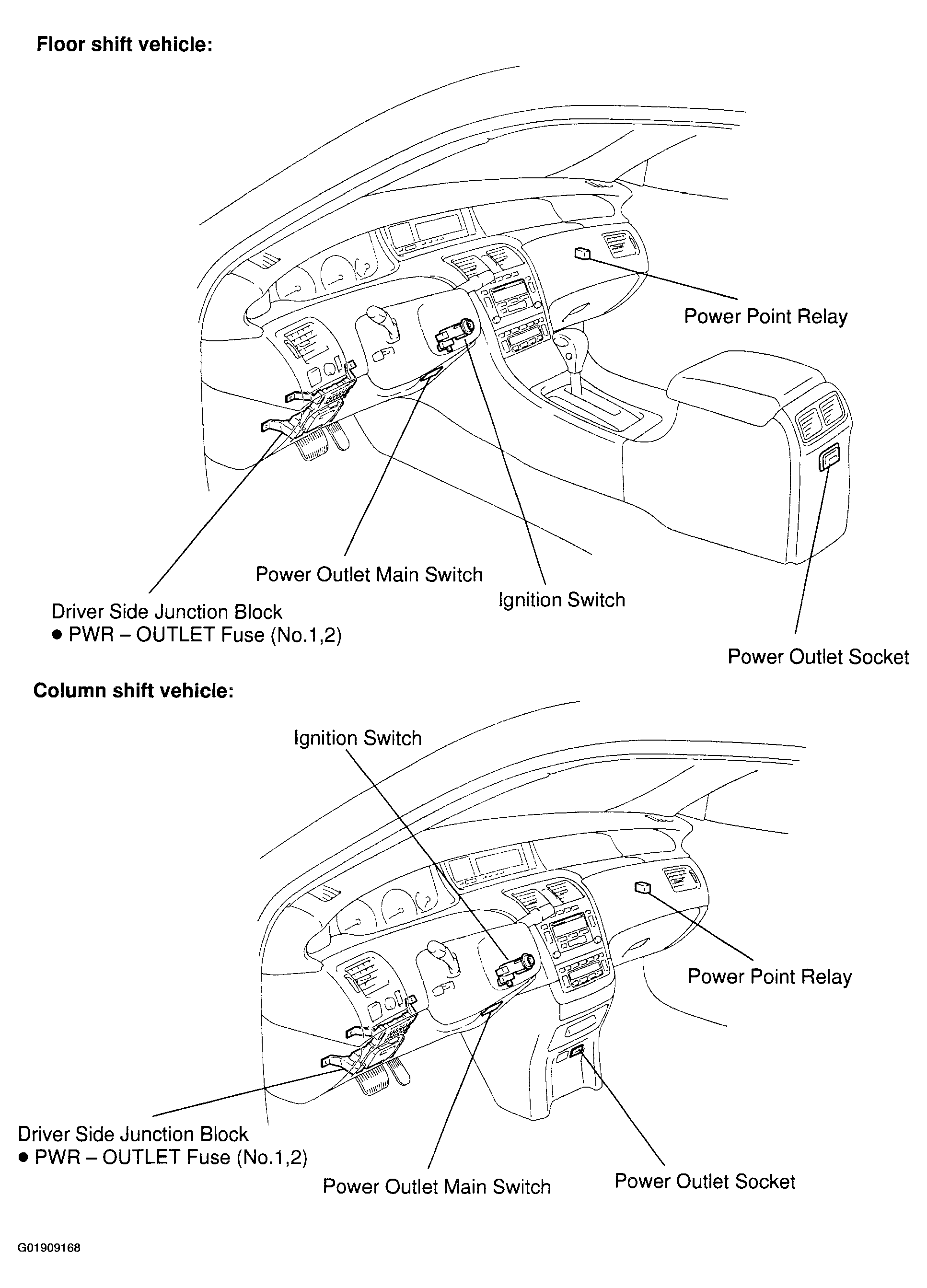

Fig 1: Locating Power Outlet Components

G01909168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
