Touch Select 2-4 Switch (Sequoia)

WARNING: This page is about a different variant/trim than selected.

NOTE: For circuit reference, see CONNECTOR IDENTIFICATION and/or WIRING DIAGRAMS .

Remove the center integration panel assembly. See INTEGRATION CONTROL PANEL (SEQUOIA) or 2-4 SELECTOR SWITCH (4RUNNER) under REMOVAL & INSTALLATION. Check for continuity between terminal No. 2 and 10 under specified condition. See Fig 1 and Fig 2 . If continuity is not as specified, replace the center integration panel assembly.

Fig 1: Checking Continuity At 2-4 Touch Select Switch

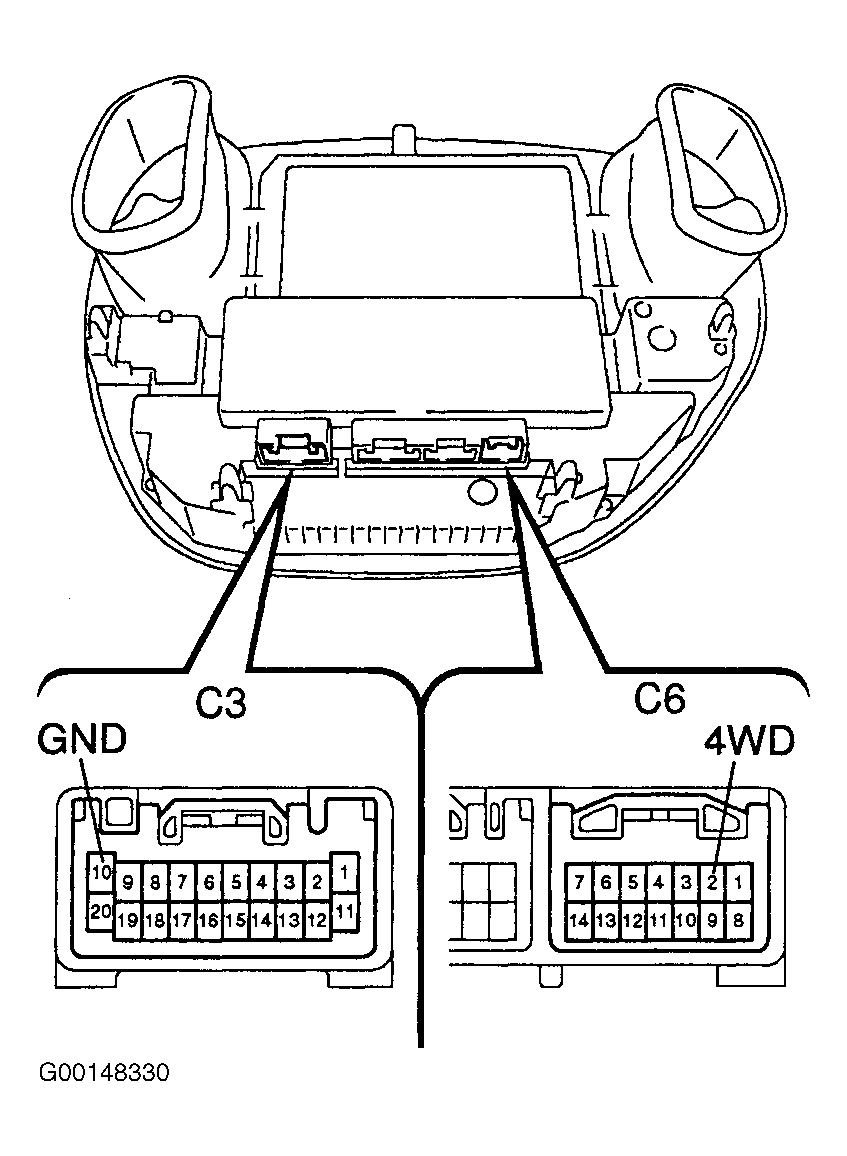

Fig 2: Locating 2-4 Touch Select Switch Connectors
