4WD Control Electronic Control Unit (Sequoia)
WARNING: This page is about a different variant/trim than selected.
NOTE:
For circuit reference, see CONNECTOR IDENTIFICATION and/or WIRING DIAGRAMS
.

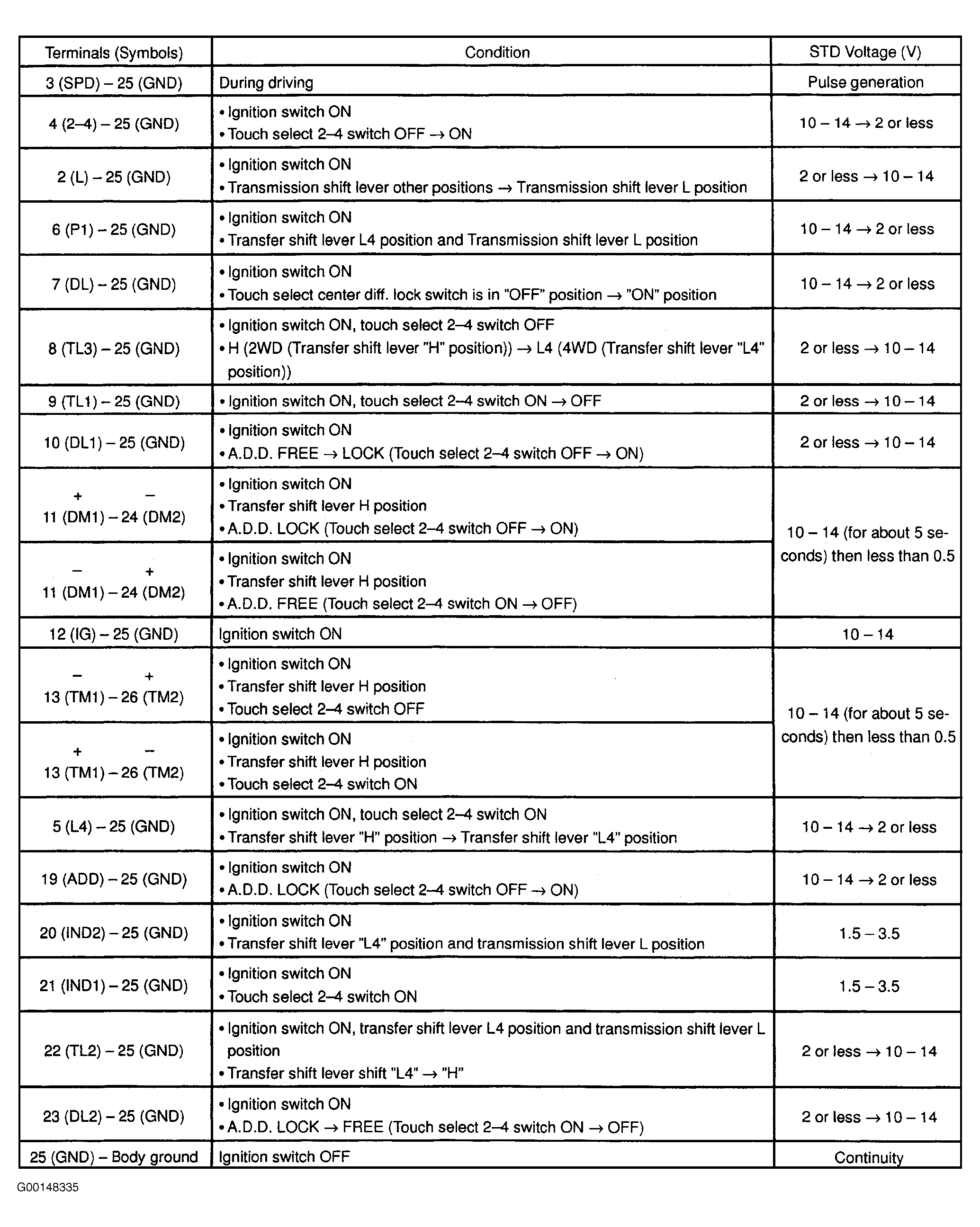

Connect the wire harness side connector to the 4WD control ECU and using a DVOM, inspect the wiring harness side connector from the back side. See Fig 1.
