Limit Switch

WARNING: This page is about a different variant/trim than selected.

NOTE: When shifting the actuator fork shaft, ensure the connector is connected.

Start the engine and raise the vehicle. With the actuator connector connected, shift the transfer shift lever and after ensuring an operating sound, disconnect the connector and inspect the continuity between specified terminals. See Fig 1 or Fig 2 .

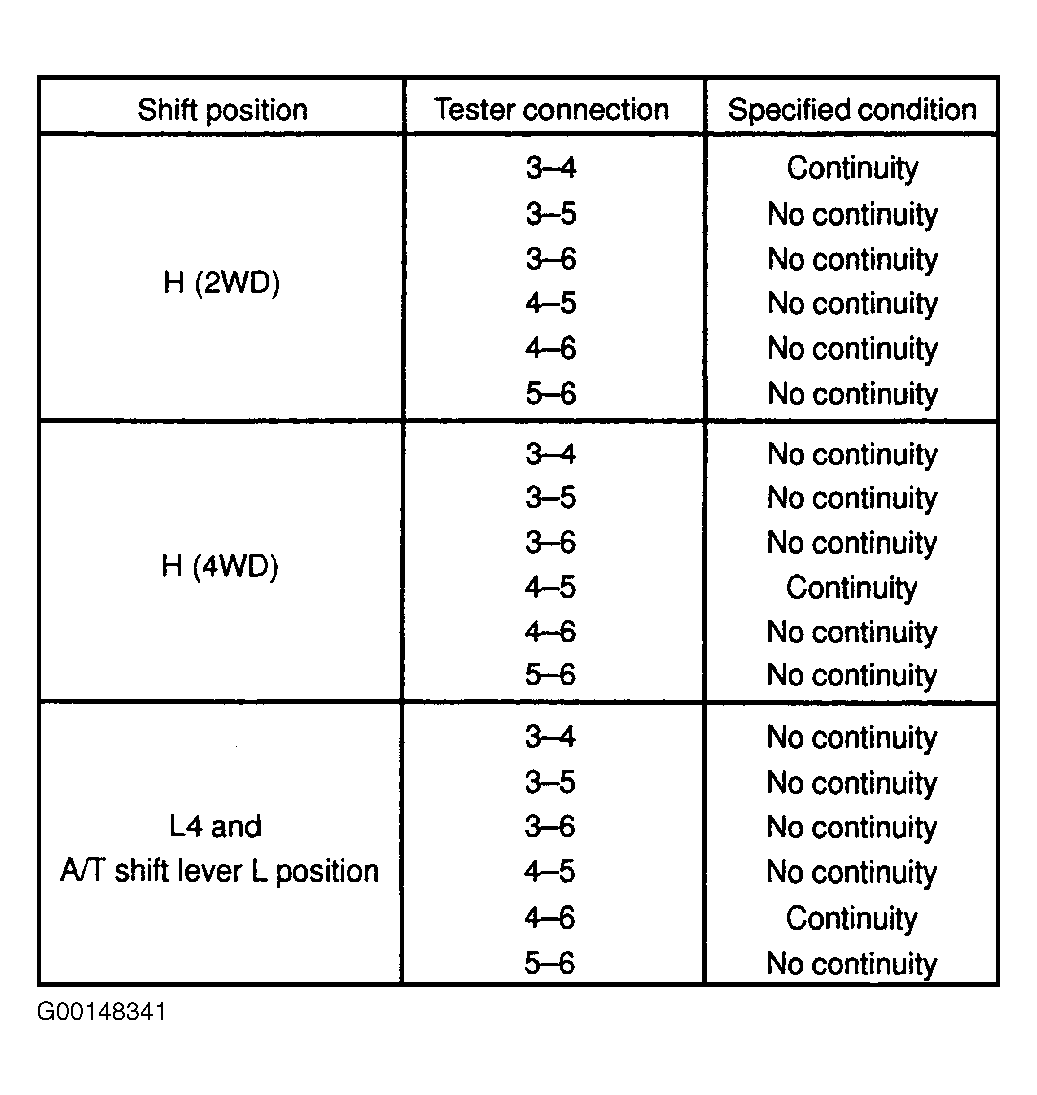

Fig 1: Checking Continuity At Limit Switch (Sequoia)

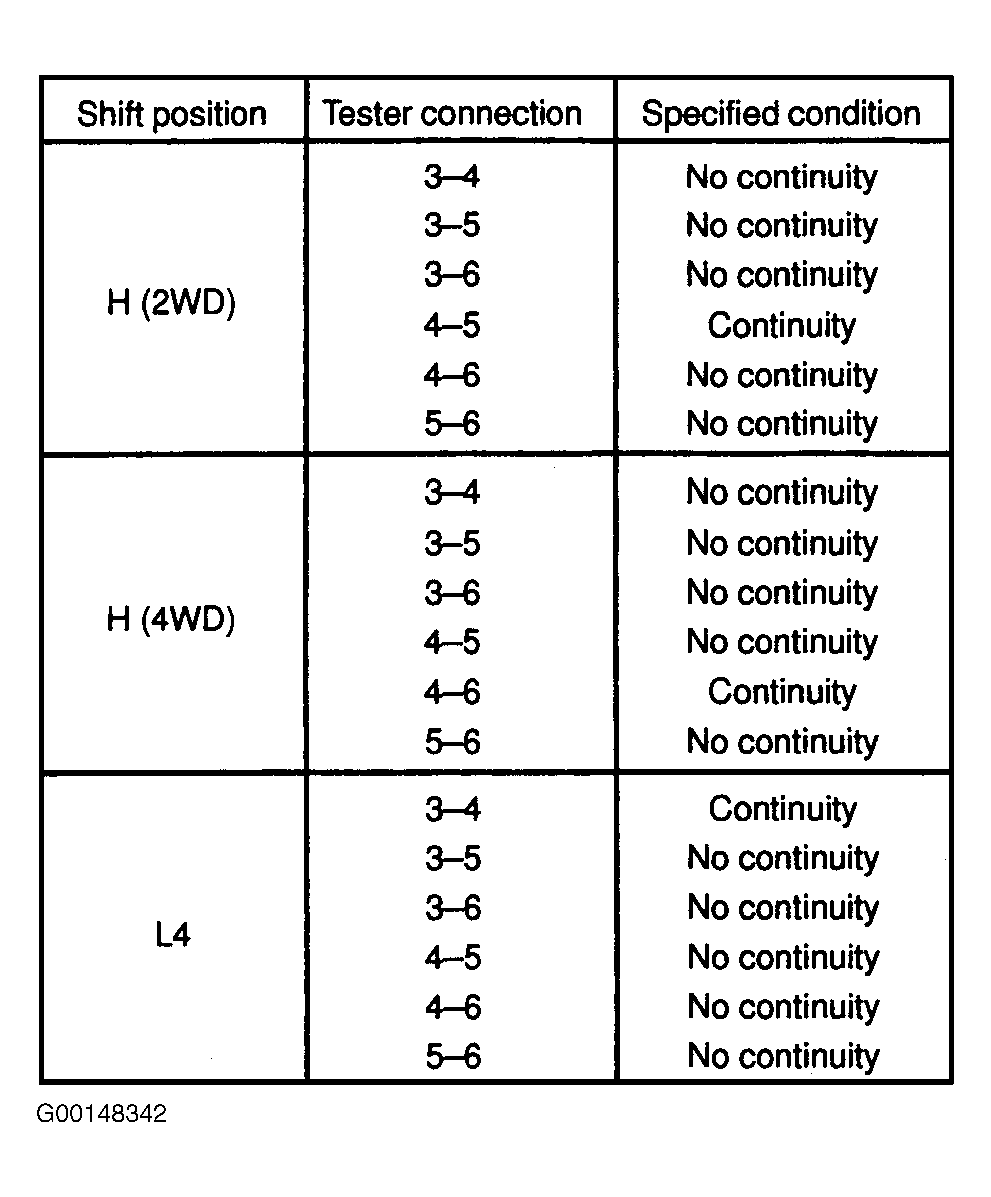

Fig 2: Checking Continuity At Limit Switch (4Runner)
