Component Locations

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying One Touch 2-4 Selector Components (Sequoia)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

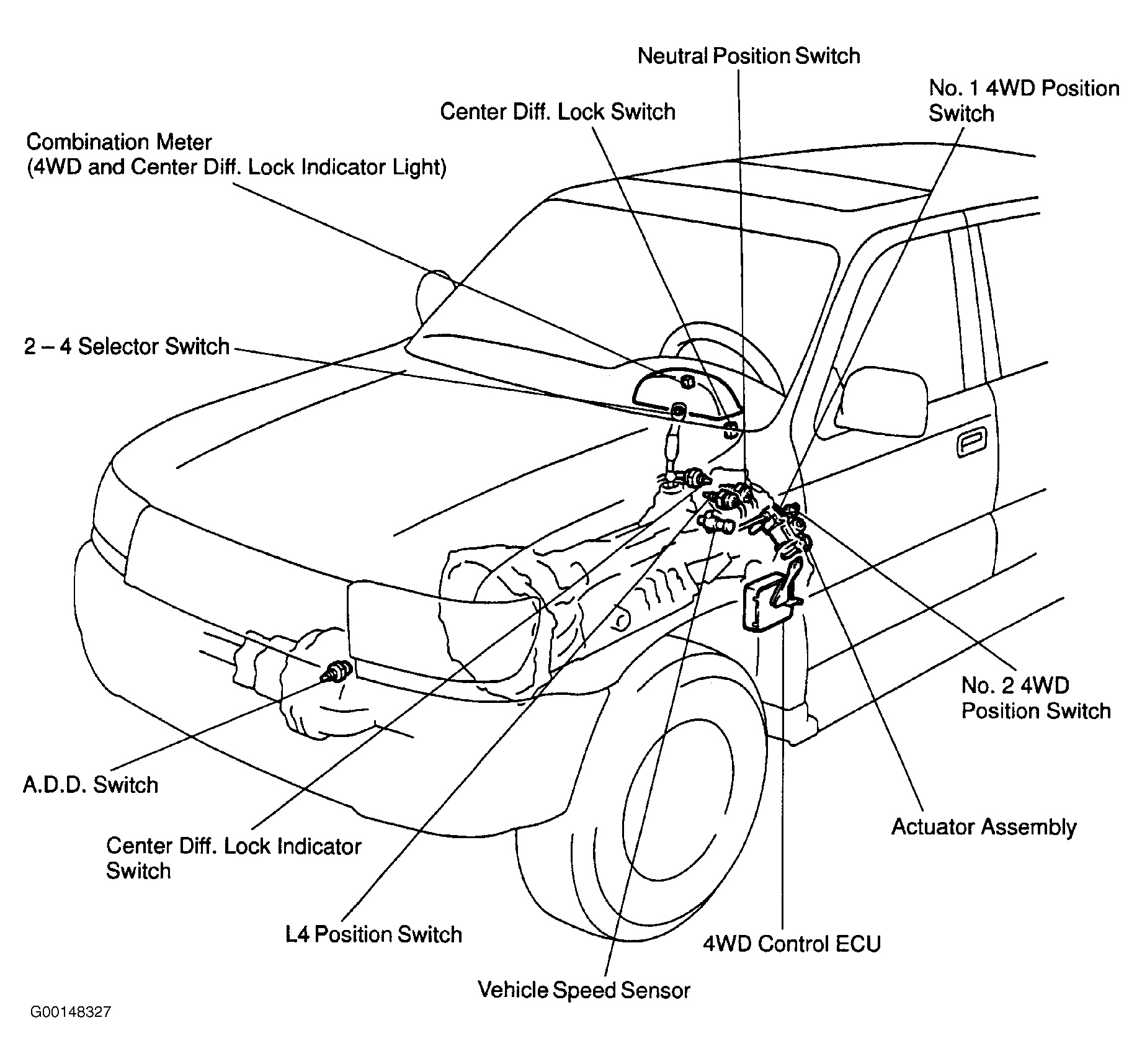

Fig 2: Identifying One Touch 2-4 Selector System Components (4Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

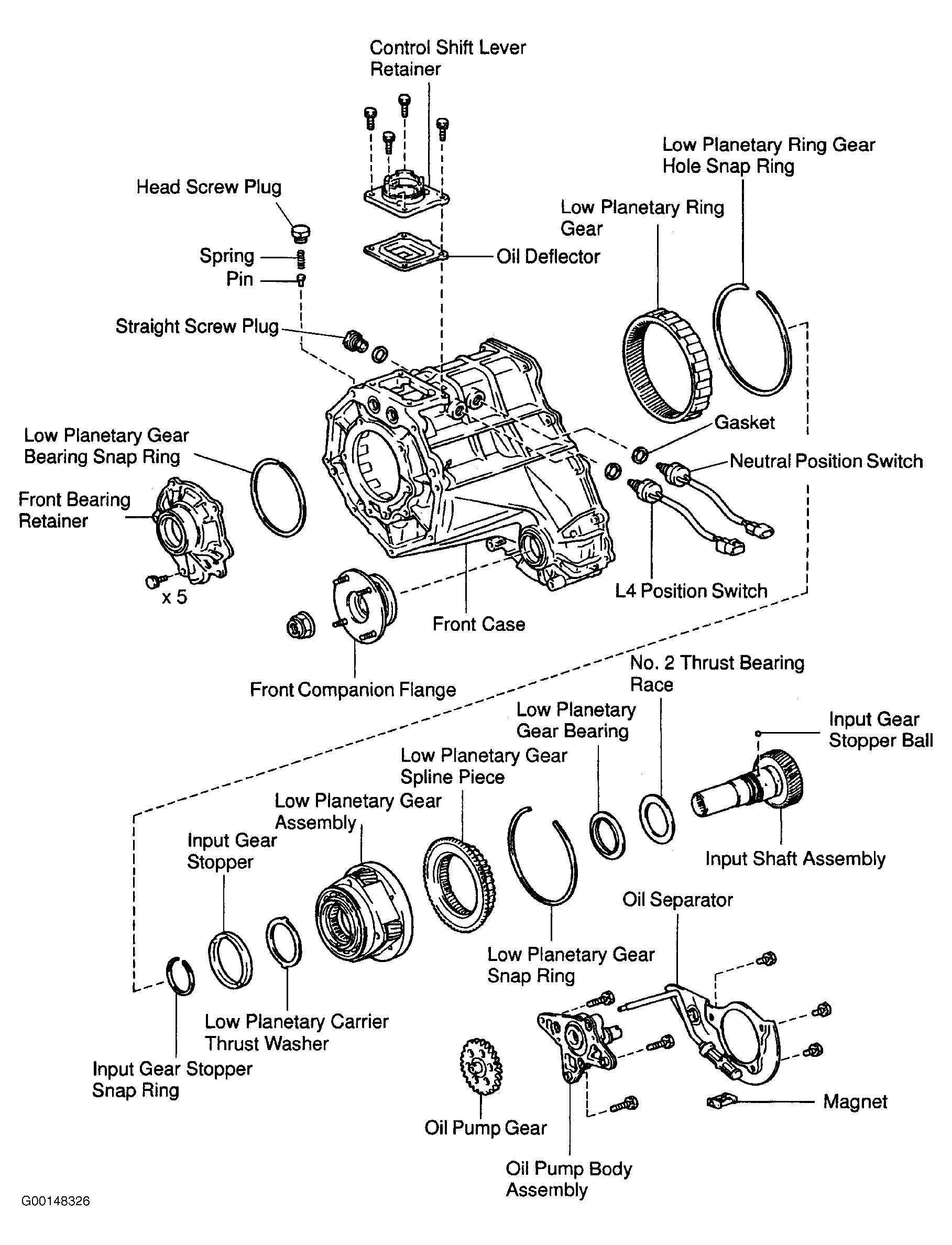

Fig 3: Exploded View Of Transfer Case Components (1Of 2)

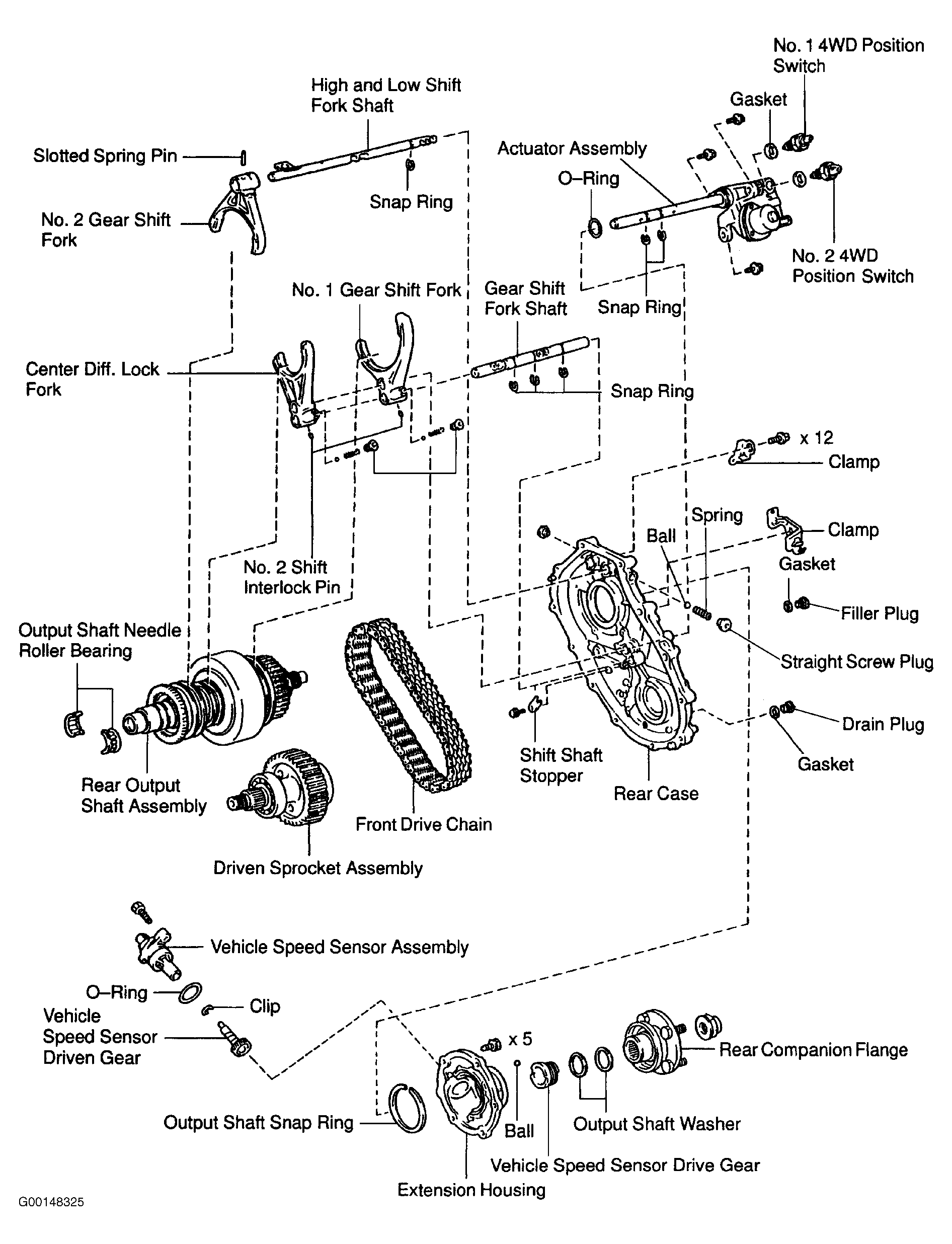

Fig 4: Exploded View Of Transfer Case Components (2 Of 2)
